固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

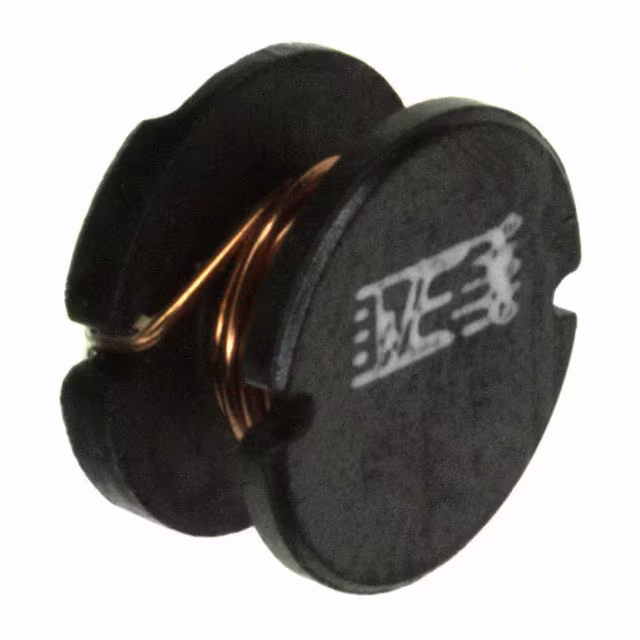

744776068AFIXED IND 6.8UH 3.4A 40 MOHM SMD Würth Elektronik |
1,686 |
|
数据手册 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | - | Unshielded | 40mOhm Max | 33 @ 7.96MHz | 32MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.374" L x 0.374" W (9.50mm x 9.50mm) | 0.228" (5.80mm) |
|
110001200FIXED IND 1.96UH 15A 2.4 MOHM Würth Elektronik |
3,714 |
|
数据手册 |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.96 µH | ±20% | 15 A | 39A | Unshielded | 2.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.366" Dia x 0.709" L (9.30mm x 18.00mm) | - |
|
110001101FIXED IND 10.4UH 2.5A 33MOHM SMD Würth Elektronik |
3,630 |
|
数据手册 |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 10.4 µH | ±20% | 2.5 A | 7.5A | Unshielded | 33mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.213" Dia x 0.709" L (5.40mm x 18.00mm) | - |
|
110001100FIXED IND 1UH 22A 2 MOHM SMD Würth Elektronik |
2,006 |
|
数据手册 |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 µH | ±20% | 22 A | 29A | Unshielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.280" Dia x 0.591" L (7.10mm x 15.00mm) | - |
|
784383560033FIXED IND 330NH 9.6A 7.2MOHM SMD Würth Elektronik |
2,084 |
|
数据手册 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 330 nH | ±30% | 9.6 A | 12.4A | Shielded | 7.2mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
110001270FIXED IND 2.72UH 10A 6.4MOHM SMD Würth Elektronik |
1,941 |
|
数据手册 |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.72 µH | ±20% | 10 A | 18A | Unshielded | 6.4mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" Dia x 0.591" L (6.50mm x 15.00mm) | - |
|
|
110001450FIXED IND 4.45UH 12A 3.8 MOHM Würth Elektronik |
1,543 |
|
数据手册 |
WE-SDP | Radial, Horizontal Cylinder (Open) | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.45 µH | ±10% | 12 A | 45A | Unshielded | 3.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.453" Dia x 0.984" L (11.50mm x 25.00mm) | - |
|

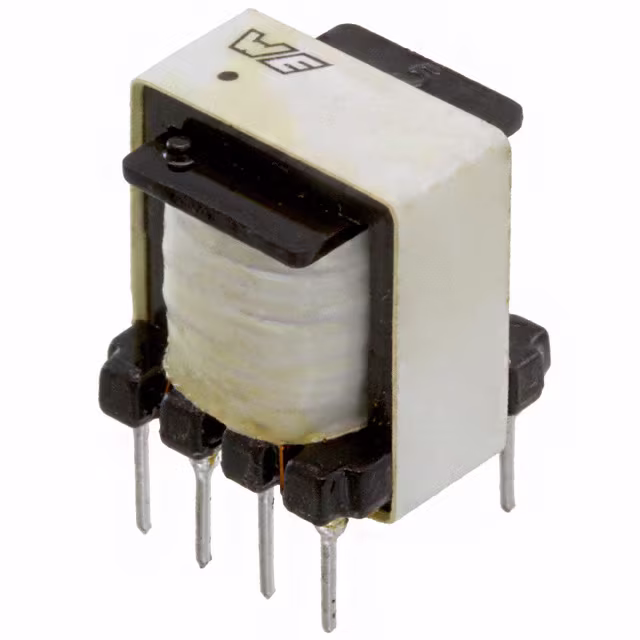

750341422FIXED IND 2.2MH 531 MOHM TH Würth Elektronik |
1,406 |
|
数据手册 |
MID-DC16US | 8-DIP Module | Tray | Active | - | - | 2.2 mH | ±10% | - | - | - | 531mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.453" L x 0.425" W (11.50mm x 10.80mm) | 0.472" (12.00mm) |
|

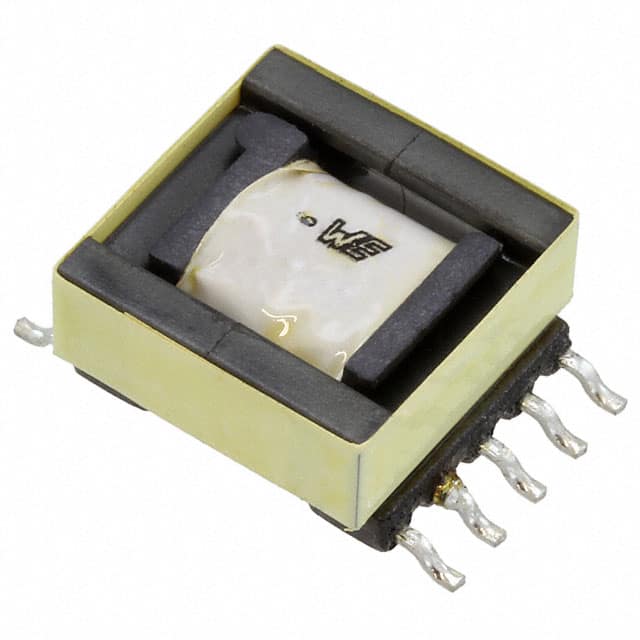

750341456FIXED IND 300UH 596 MOHM SMD Würth Elektronik |
4,790 |
|
数据手册 |
MID-DC16US | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | - | - | 300 µH | ±10% | - | - | Unshielded | 596mOhm | - | - | - | - | 10 kHz | - | Surface Mount | - | 0.824" L x 0.575" W (20.92mm x 14.60mm) | 0.325" (8.25mm) |
|
744305040FIXED IND 400NH 26A 0.000155OHM Würth Elektronik |
1,307 |
|
数据手册 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 400 nH | ±20% | 26 A | 21.7A | Shielded | 0.155mOhm | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1350 | 0.531" L x 0.524" W (13.50mm x 13.30mm) | 0.205" (5.20mm) |
