场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRLR024TRLMOSFET N-CH 60V 14A DPAK Vishay Siliconix |
3,988 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | 4V, 5V | 100mOhm @ 8.4A, 5V | 2V @ 250µA | 18 nC @ 5 V | ±10V | 870 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
IRLR024TRRMOSFET N-CH 60V 14A DPAK Vishay Siliconix |
4,099 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | 4V, 5V | 100mOhm @ 8.4A, 5V | 2V @ 250µA | 18 nC @ 5 V | ±10V | 870 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
|
IRLR120TRLMOSFET N-CH 100V 7.7A DPAK Vishay Siliconix |
6,530 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.7A (Tc) | 4V, 5V | 270mOhm @ 4.6A, 5V | 2V @ 250µA | 12 nC @ 5 V | ±10V | 490 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DPAK |
|
IRLU024MOSFET N-CH 60V 14A TO251AA Vishay Siliconix |
8,347 | - |
|
数据手册 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Tc) | 4V, 5V | 100mOhm @ 8.4A, 5V | 2V @ 250µA | 18 nC @ 5 V | ±10V | 870 pF @ 25 V | - | 2.5W (Ta), 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
|
IRLU110MOSFET N-CH 100V 4.3A TO251AA Vishay Siliconix |
5,358 | - |
|
数据手册 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 4.3A (Tc) | 4V, 5V | 540mOhm @ 2.6A, 5V | 2V @ 250µA | 6.1 nC @ 5 V | ±10V | 250 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251AA |
|
IRLZ34STRLMOSFET N-CH 60V 30A D2PAK Vishay Siliconix |
7,753 | - |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 4V, 5V | 50mOhm @ 18A, 5V | 2V @ 250µA | 35 nC @ 5 V | ±10V | 1600 pF @ 25 V | - | 3.7W (Ta), 88W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

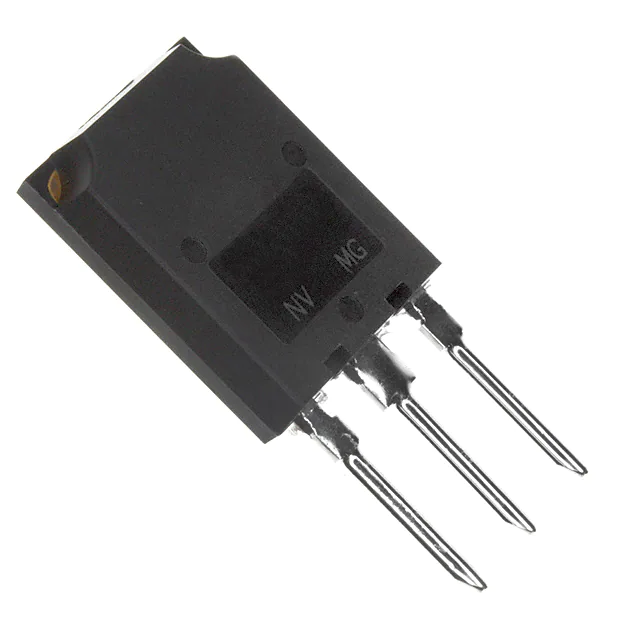

IRFPS43N50KMOSFET N-CH 500V 47A SUPER247 Vishay Siliconix |
3,949 | - |
|
数据手册 |
- | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 47A (Tc) | 10V | 90mOhm @ 28A, 10V | 5V @ 250µA | 350 nC @ 10 V | ±30V | 8310 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRFB18N50KMOSFET N-CH 500V 17A TO220AB Vishay Siliconix |
7,808 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 17A (Tc) | 10V | 290mOhm @ 10A, 10V | 5V @ 250µA | 120 nC @ 10 V | ±30V | 2830 pF @ 25 V | - | 220W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRFP23N50LMOSFET N-CH 500V 23A TO247-3 Vishay Siliconix |
9,193 | - |
|
数据手册 |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 23A (Tc) | 10V | 235mOhm @ 14A, 10V | 5V @ 250µA | 150 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 370W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
IRF644NSMOSFET N-CH 250V 14A D2PAK Vishay Siliconix |
9,121 | - |
|
数据手册 |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 240mOhm @ 8.4A, 10V | 4V @ 250µA | 54 nC @ 10 V | ±20V | 1060 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
