场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

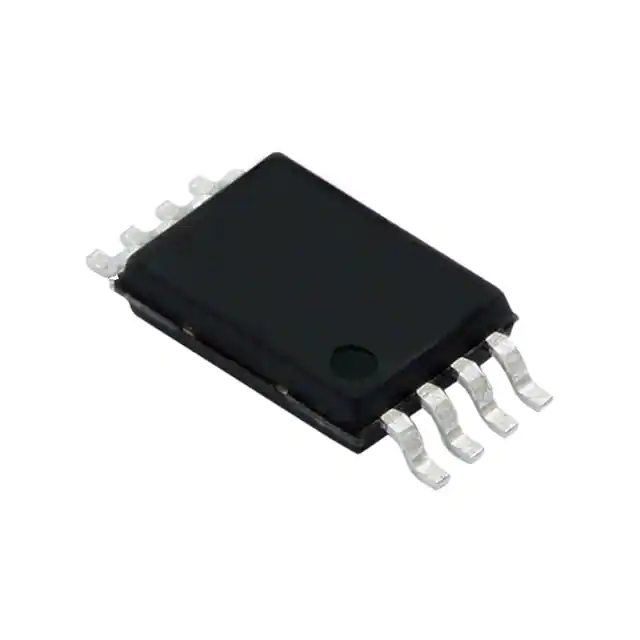

SI6415DQ-T1-BE3P-CHANNEL 30-V (D-S) MOSFET Vishay Siliconix |
5,680 | - |
|
数据手册 |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 19mOhm @ 6.5A, 10V | 1V @ 250µA | 70 nC @ 10 V | ±20V | - | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-TSSOP |
|
IRFIBC20GMOSFET N-CH 600V 1.7A TO220-3 Vishay Siliconix |
7,153 | - |
|
数据手册 |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 1.7A (Tc) | 10V | 4.4Ohm @ 1A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 350 pF @ 25 V | - | 30W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-3 |
|
IRFP15N60LPBFMOSFET N-CH 600V 15A TO247-3 Vishay Siliconix |
8,976 | - |
|
数据手册 |
- | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 460mOhm @ 9A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 2720 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
SI7742DP-T1-GE3MOSFET N-CH 30V 60A PPAK SO-8 Vishay Siliconix |
9,789 | - |
|
数据手册 |
SkyFET®, TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 60A (Tc) | 4.5V, 10V | 3.5mOhm @ 20A, 10V | 2.7V @ 250µA | 115 nC @ 10 V | ±20V | 5300 pF @ 15 V | - | 5.4W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SIJ420DP-T1-GE3MOSFET N-CH 20V 50A PPAK SO-8 Vishay Siliconix |
5,706 | - |
|
数据手册 |
TrenchFET® | PowerPAK® SO-8 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 50A (Tc) | 4.5V, 10V | 2.6mOhm @ 15A, 10V | 2.4V @ 250µA | 90 nC @ 10 V | ±20V | 3630 pF @ 10 V | - | 4.8W (Ta), 62.5W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PowerPAK® SO-8 |
|
SIHP24N65EF-GE3MOSFET N-CH 650V 24A TO220AB Vishay Siliconix |
6,873 | - |
|
数据手册 |
- | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 156mOhm @ 12A, 10V | 4V @ 250µA | 122 nC @ 10 V | ±20V | 2656 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SIHF35N60E-GE3MOSFET N-CHANNEL 600V 32A TO220 Vishay Siliconix |
9,122 | - |
|
数据手册 |
E | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 32A (Tc) | 10V | 94mOhm @ 17A, 10V | 4V @ 250µA | 132 nC @ 10 V | ±30V | 2760 pF @ 100 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
|
SIHP16N50C-BE3MOSFET N-CH 500V 16A TO220AB Vishay Siliconix |
6,992 | - |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 380mOhm @ 8A, 10V | 5V @ 250µA | 68 nC @ 10 V | ±30V | 1900 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
SIHA24N65EF-E3MOSFET N-CHANNEL 650V 24A TO220 Vishay Siliconix |
9,690 | - |
|
数据手册 |
E | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 156mOhm @ 12A, 10V | 4V @ 250µA | 122 nC @ 10 V | ±30V | 2774 pF @ 100 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 Full Pack |
|
IRFD9220MOSFET P-CH 200V 560MA 4DIP Vishay Siliconix |
8,776 | - |
|
数据手册 |
- | 4-DIP (0.300", 7.62mm) | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 560mA (Ta) | 10V | 1.5Ohm @ 340mA, 10V | 4V @ 250µA | 15 nC @ 10 V | ±20V | 340 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | 4-HVMDIP |
