直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WL0948P1H601FAN AXIAL 92X38MM 48VDC WIRE |
4,949 |
|
数据手册 |
San Ace 92W | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 130.6 CFM (3.66m³/min) | 1.726 in H2O (429.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 23.04 W | 9000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.661 lb (299.82 g) |
|
DV4114NFAN AXIAL 119X38MM 24VDC WIRE |
352 |
|
数据手册 |
DV4100 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 164.9 CFM (4.62m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 20.5 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.827 lb (375.12 g) |
|
RLF100-11/14FAN BLOWER CF 127X25.4MM 24VDC |
379 |
|
数据手册 |
RLF100 | Bulk | Active | 24VDC | Square/Rounded - 127mm L x 127mm H | 25.40mm | 37.7 CFM (1.06m³/min) | - | Ball | Blower, Centrifugal | Locked Rotor Protection | 60.0dB(A) | 8 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.705 lb (319.78 g) |
|
4114NH6FAN AXIAL 119X38MM 24VDC WIRE |
2,525 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 259.0 CFM (7.25m³/min) | - | Ball | Tubeaxial | - | 73.0dB(A) | 65 W | 8400 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|

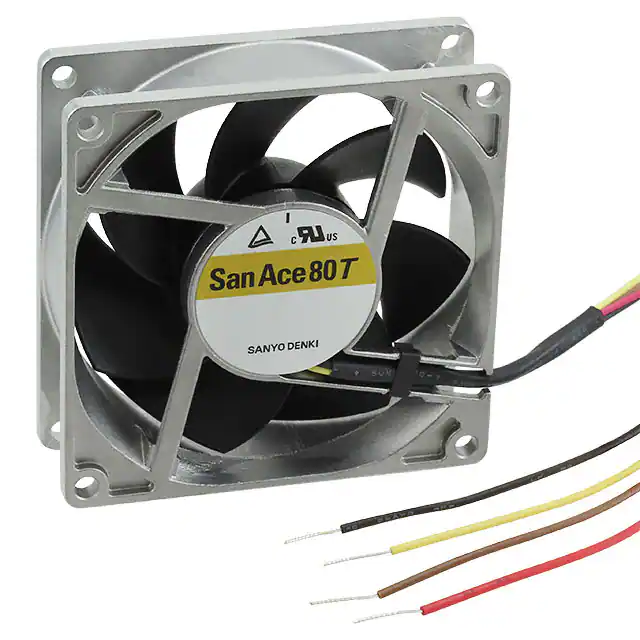

9GT0812P4S001FAN AXIAL 80X25MM 12VDC WIRE |
681 |
|
数据手册 |
San Ace 80T | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 65.7 CFM (1.84m³/min) | 0.574 in H2O (143.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 46.0dB(A) | 5.52 W | 6700 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

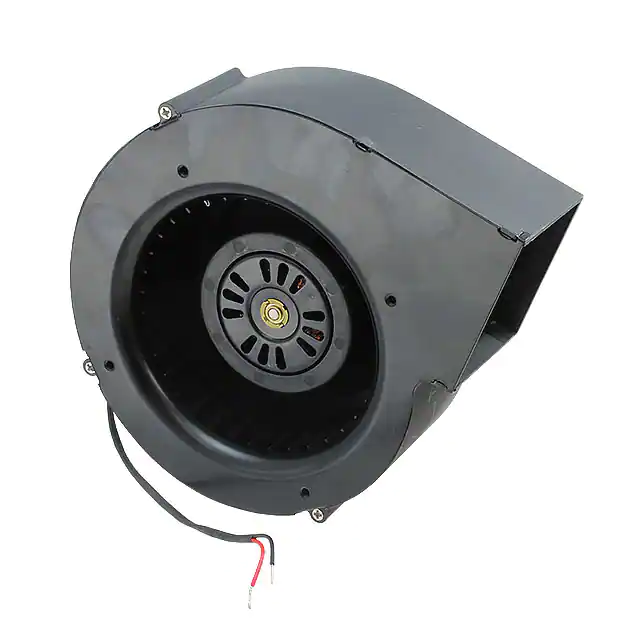

ODB182-24HBFAN BLOWER 171X82MM 24VDC WIRE |
439 |
|
数据手册 |
ODB182 | Box | Active | 24VDC | Rectangular/Rounded - 171mm L x 182.1mm H | 82.00mm | 136.0 CFM (3.81m³/min) | 2.500 in H2O (622.7 Pa) | Ball | Blower | - | 63.0dB | - | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus | 2.5 lbs (1.1 kg) |
|
109E4724H401FAN AXIAL 172X25.4MM 24VDC WIRE |
151 |
|
数据手册 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 147mm H | 25.40mm | 226.0 CFM (6.33m³/min) | 0.542 in H2O (135.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 57.0dB(A) | 24 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 1.1 lbs (500.0 g) |
|
9GT0912P4J001FAN AXIAL 92X25MM 12VDC WIRE |
106 |
|
数据手册 |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

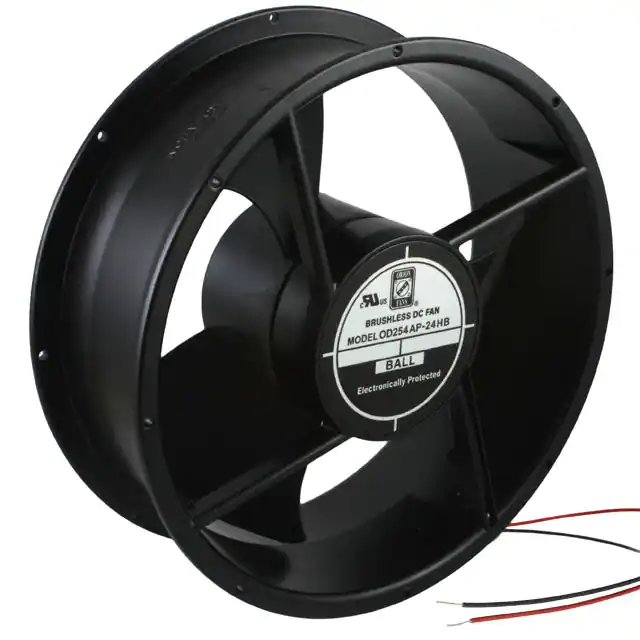

OD254AP-24HBFAN AXIAL 254X89MM 24VDC WIRE |
543 |
|
数据手册 |
OD254 | Box | Active | 24VDC | Round - 254mm Dia | 89.00mm | 850.0 CFM (23.80m³/min) | 0.830 in H2O (206.7 Pa) | Ball | Tubeaxial | Auto Restart | 64.0dB | 64 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
RG125-19/14N/2FAN BLOWER CF 180X40MM 24VDC |
296 |
|
数据手册 |
RG125N | Box | Active | 24VDC | Square - 180mm L x 180mm H | 40.00mm | 51.5 CFM (1.44m³/min) | - | Ball | Blower, Centrifugal | Speed Sensor (Tach) | 58.0dB(A) | 5 W | 2550 RPM | 3 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | - | 1.6 lbs (725.7 g) |
|

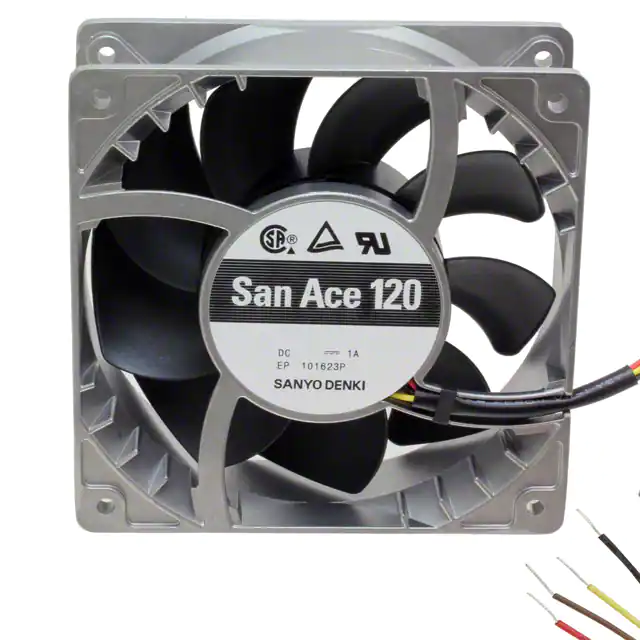

9HV1248P1G001FAN AXIAL 119X38MM 48VDC WIRE |
3,856 |
|
数据手册 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 293.0 CFM (8.20m³/min) | 5.220 in H2O (1300.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 96 W | 11500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 1 lb (453.6 g) |
|

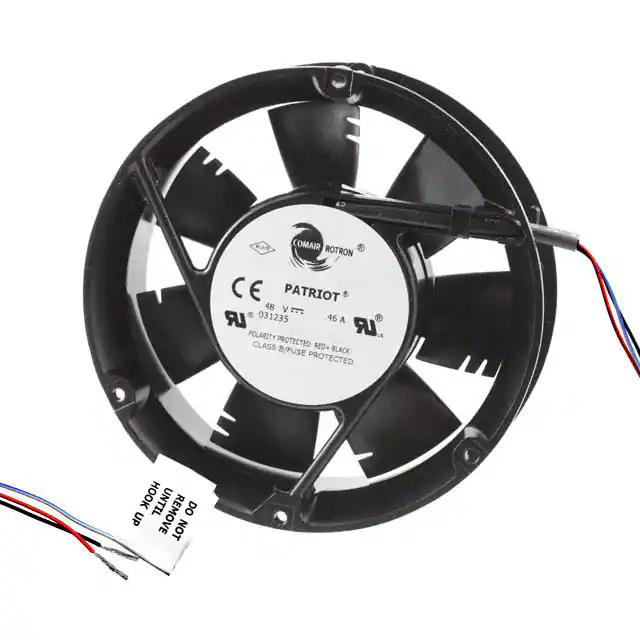

19031235AFAN AXIAL 172X50.8MM 48V PQ48B7 |
288 |
|
数据手册 |
Patriot | Box | Active | 48VDC | Round - 172mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 51.2dB(A) | 22 W | 3475 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|

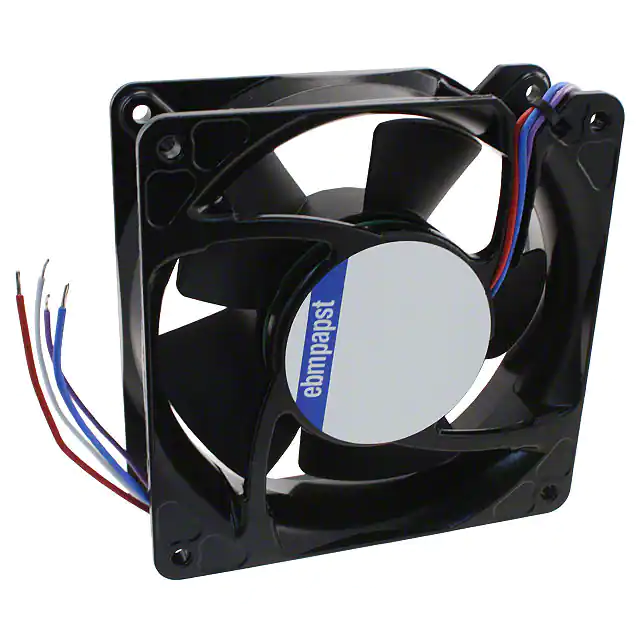

4114N/2H6PFAN AXIAL 119X38MM 24VDC WIRE |
360 |
|
数据手册 |
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 259.0 CFM (7.25m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | - | - | 4 Wire Leads | - | - | - | - |
|
|
9GT0924P1M001FAN AXIAL 92X38MM 24VDC WIRE |
337 |
|
数据手册 |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 18 W | 8100 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.595 lb (269.89 g) |
|
|
109E5724C501FAN AXIAL 172X51MM 24VDC WIRE |
2,168 |
|
数据手册 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 350.0 CFM (9.80m³/min) | 1.237 in H2O (308.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.0dB(A) | 55.2 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|

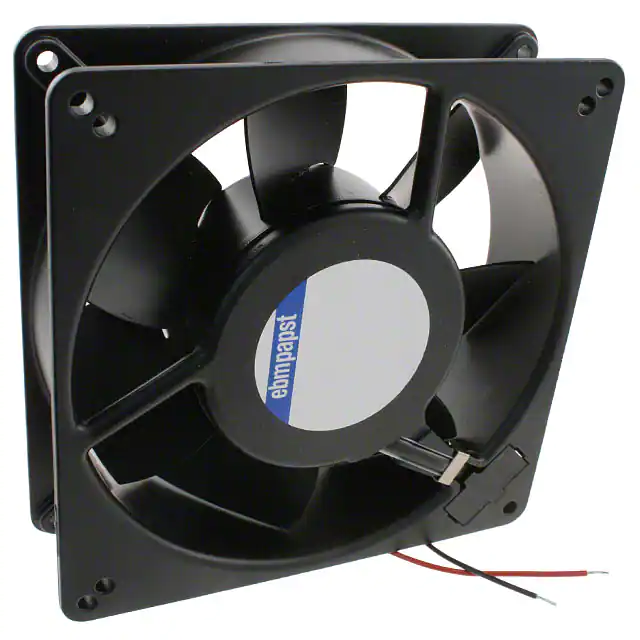

5114NFAN AXIAL 135X38MM 24VDC WIRE |
260 |
|
数据手册 |
5100N | Box | Active | 24VDC | Square - 135mm L x 135mm H | 38.00mm | 147.0 CFM (4.12m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 9 W | 2900 RPM | 2 Wire Leads | - | -13 ~ 162°F (-25 ~ 72°C) | CE | 1.4 lbs (635.0 g) |
|
9WV1248P1J001FAN AXIAL 120X38MM 48VDC WIRE |
109 |
|
数据手册 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 31.2 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.97 lb (439.98 g) |
|
QG030-148/12FAN BLOWER CF 201X47.5MM 12VDC |
1,435 |
|
数据手册 |
QG030 | Box | Active | 12VDC | Rectangular - 201mm L x 50mm H | 47.50mm | 44.0 CFM (1.23m³/min) | - | Ball | Blower, Cross Flow | - | 49.0dB(A) | 6.2 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.56 lb (254.01 g) |
|

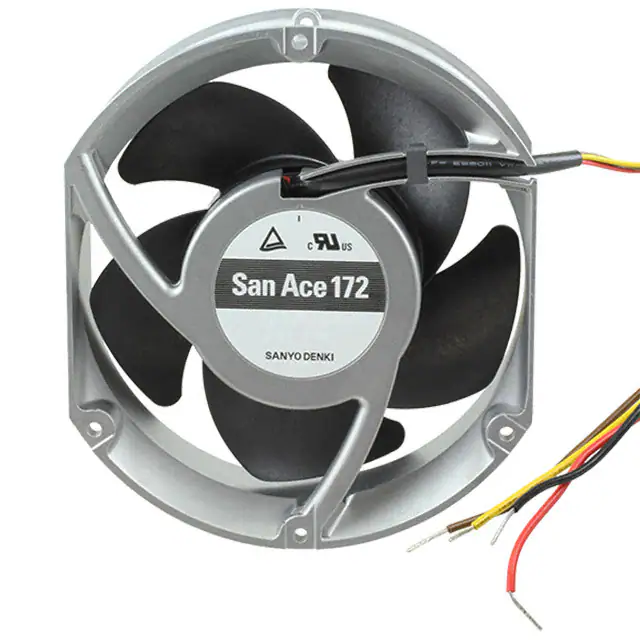

9SG5724P5H61FAN AXIAL 172X51MM 24VDC WIRE |
1,334 |
|
数据手册 |
San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 410.0 CFM (11.48m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 67.2 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.882 lb (400.07 g) |
|

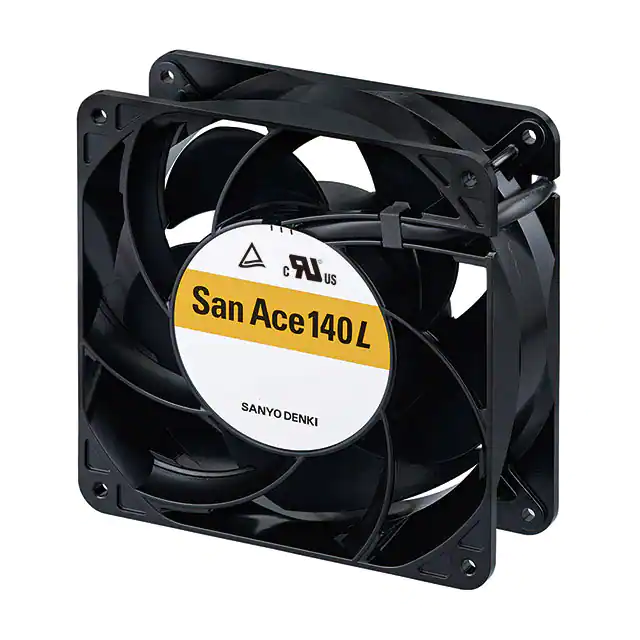

9LG1424A5001FAN AXIAL 140X51MM 24VDC WIRE |
1,301 |
|
数据手册 |
San Ace 140L | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | 243.7 CFM (6.82m³/min) | 2.170 in H2O (540.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | 29.1 W | 5700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.8 lb (800.0 g) |
