直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

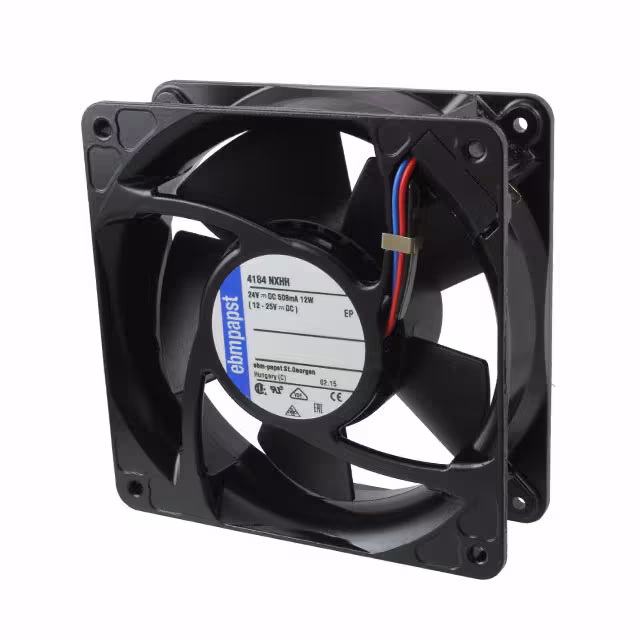

4184NXHHFAN AXIAL 119X38MM 24VDC TERM |
3,039 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 147.1 CFM (4.12m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 12.2 W | 4400 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CE, CSA, UL, VDE | 0.86 lb (390.09 g) |
|

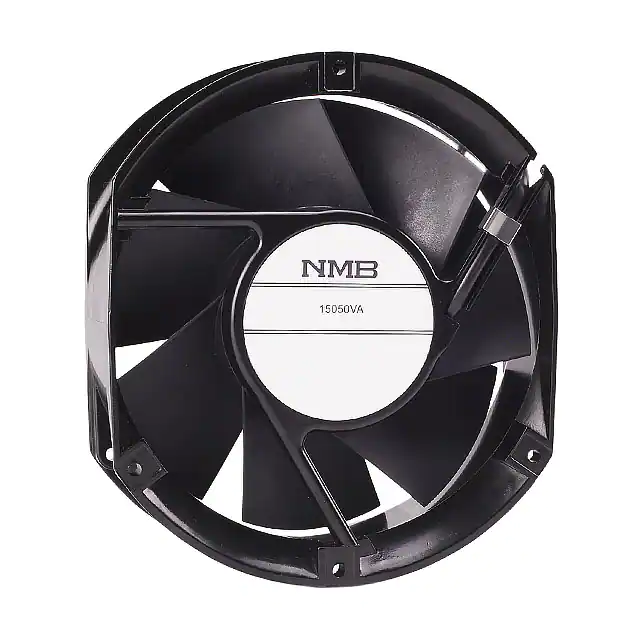

15050VA-24R-GA-00FAN AXIAL 172.7X50.8MM 24VDC |
4,697 |
|
数据手册 |
15050VA | Bulk | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 346.1 CFM (9.69m³/min) | 1.250 in H2O (312.0 Pa) | Ball | Tubeaxial | - | 68.0dB(A) | 43.2 W | 4600 RPM | 2 Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
4314/17TFAN AXIAL 119X32MM 24VDC WIRE |
1,234 |
|
数据手册 |
4300 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | 0.281 in H2O (70.0 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.8 W | 2800 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | - |
|
9HV0824P1G0011FAN AXIAL 80X38MM 24VDC WIRE |
3,535 |
|
数据手册 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 40.8 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.508 lb (230.42 g) |
|

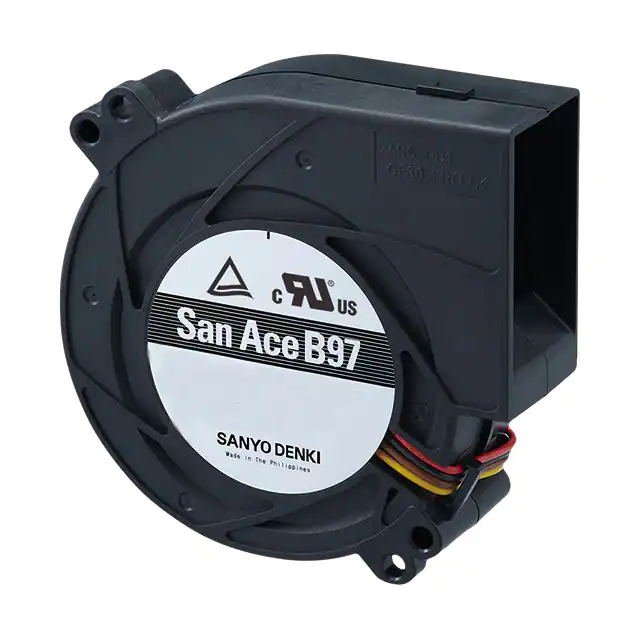

9BMC12P2G001FAN BLOWER 97.1X33MM 12VDC WIRE |
421 |
|
数据手册 |
San Ace B97 | Box | Active | 12VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 65.3 CFM (1.83m³/min) | 7.830 in H2O (1950.3 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 74.4 W | 8200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.441 lb (200.00 g) |
|

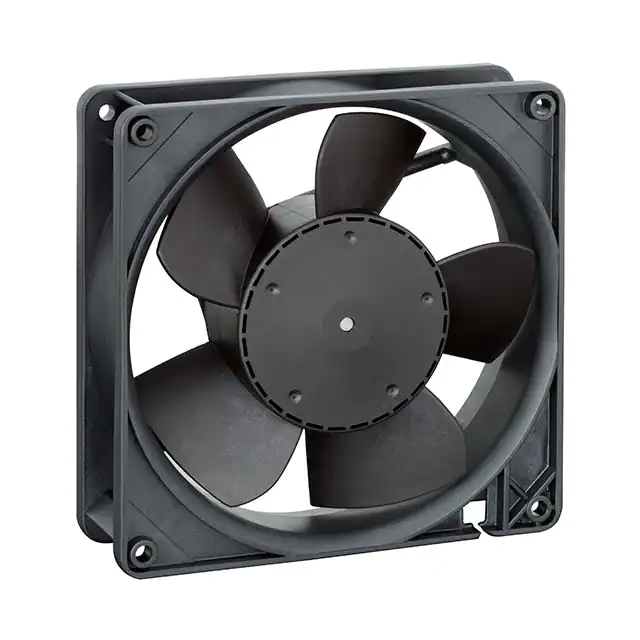

5214NHFAN AXIAL 127X38MM 24VDC WIRE |
459 |
|
数据手册 |
5200N | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 148.3 CFM (4.15m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 9.8 W | 3650 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.683 lb (309.8 g) |
|
QG030-353/14FAN BLOWER CF 413X47.5MM 24VDC |
1,177 |
|
数据手册 |
QG030 | Bulk | Active | 24VDC | Rectangular - 413mm L x 50mm H | 47.50mm | 91.0 CFM (2.55m³/min) | - | Ball | Blower, Cross Flow | - | 51.0dB(A) | 9.6 W | - | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.915 lb (415.04 g) |
|
9CRB0812P8G001FAN AXIAL DUAL 80X80MM 12VDC |
2,339 |
|
数据手册 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 194.0 CFM (5.43m³/min) | 4.600 in H2O (1145.8 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 80.0dB(A) | 110.4 W | 14600 Front, 12200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.948 lb (430.01 g) |
|
8214JH4FAN AXIAL 80X38MM 24VDC WIRE |
193 |
|
数据手册 |
8200J | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | - | Ball | Tubeaxial | - | 71.0dB(A) | 38 W | 14000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.441 lb (200.03 g) |
|
9LG1224S1D001FAN AXIAL 120X38MM 24VDC WIRE |
3,467 |
|
数据手册 |
San Ace 120L | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 211.8 CFM (5.93m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 58.0dB(A) | 26.4 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.926 lb (420.03 g) |
|

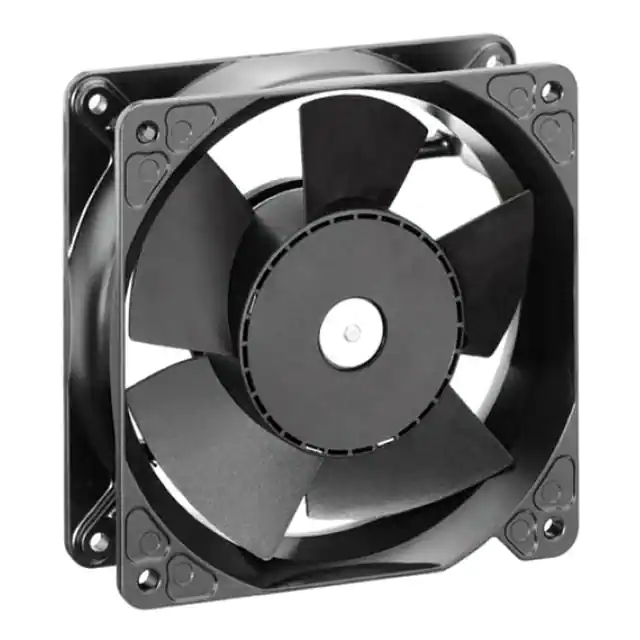

4114NH3FAN AXIAL 119X38MM 24VDC WIRE |
393 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 182.4 CFM (5.11m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 19.5 W | 6000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE | 0.86 lb (390.09 g) |
|
9HV0948P1G001FAN AXIAL 92X38MM 48VDC WIRE |
191 |
|
数据手册 |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 180.0 CFM (5.04m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 57.6 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|
|
9HV0924P1G00192X38MM 24V, HIGH PERF. GUIDE VA |
1,822 |
|
数据手册 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 180.0 CFM (5.04m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 60 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

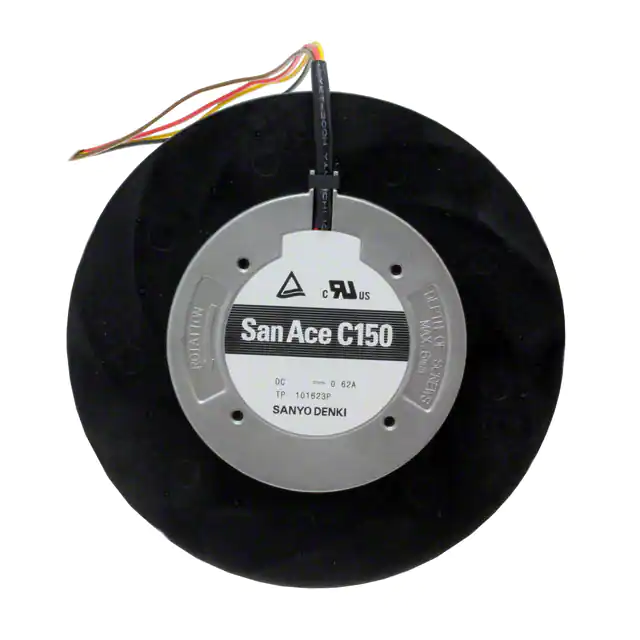

9TN24P1H01FAN AXIAL 150X35MM 24VDC WIRE |
402 |
|
数据手册 |
San Ace C150 | Box | Active | 24VDC | Square - 150mm L x 150mm H | 35.00mm | 135.0 CFM (3.78m³/min) | 1.650 in H2O (411.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 14.9 W | 3800 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
4112NH4FAN AXIAL 119X38MM 12VDC WIRE |
2,377 |
|
数据手册 |
4100N | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 208.9 CFM (5.85m³/min) | - | Ball | Tubeaxial | - | 67.0dB(A) | 32 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 0.86 lb (390.09 g) |
|
|
9LG0424P3G00140X28MM 24VDC TACH PWM |
4,620 |
|
数据手册 |
San Ace 40L | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 32.9 CFM (0.921m³/min) | 7.150 in H2O (1780.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 22.8 W | 33500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
19031843AFAN AXIAL 171.5X55MM 24V MT24B3 |
357 |
|
数据手册 |
Maltese | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 55.00mm | 300.0 CFM (8.40m³/min) | 0.810 in H2O (201.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 57.1dB(A) | 41 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, UL | 1.8 lbs (816.5 g) |
|
8315100142FAN AXIAL 120X38.15MM 24VDC WIRE |
4,204 |
|
数据手册 |
AxiForce | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.15mm | 203.0 CFM (5.68m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 30 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

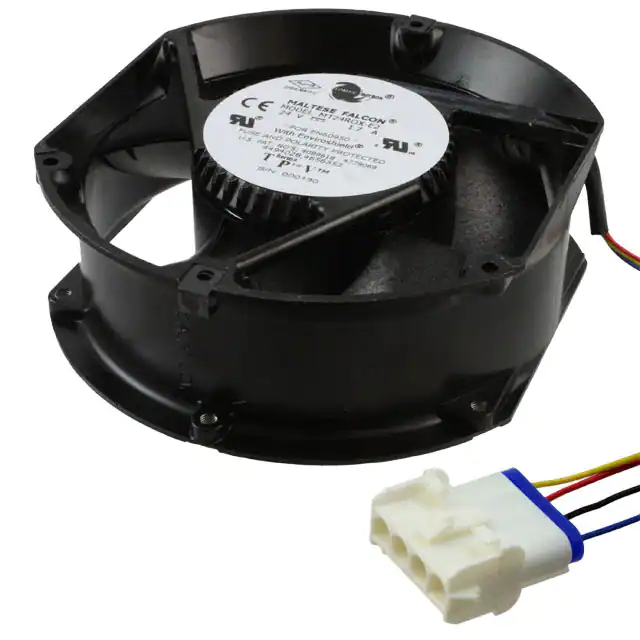

19041196AFAN AXIAL 171.5X55MM MT24R0X-E2 |
483 |
|
数据手册 |
Maltese | Box | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 55.00mm | 345.0 CFM (9.66m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.6dB(A) | 41 W | 4000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
THB1248CEFAN AXIAL 120X38MM 48VDC WIRE |
4,121 |
|
数据手册 |
THB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 262.0 CFM (7.34m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 45.6 W | 7800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.915 lb (415.04 g) |
