直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3414NMU-603FAN AXIAL 92X25.4MM 24VDC WIRE |
134 |
|
数据手册 |
3400NU | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 42.4 CFM (1.19m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.4 W | 2300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.22 lb (99.79 g) |
|

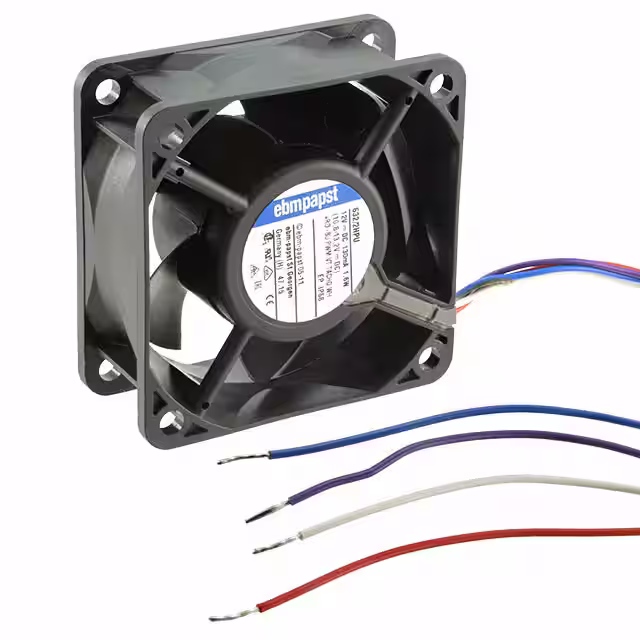

632/2HPUFAN AXIAL 60X25.4MM 12VDC WIRE |
178 |
|
数据手册 |
630U | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 25.9 CFM (0.725m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 1.5 W | 6300 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.154 lb (69.85 g) |
|
4184NXFAN AXIAL 119X38MM 24VDC TERM |
335 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 4.5 W | 3200 RPM | 2 Terminals | - | -22 ~ 167°F (-30 ~ 75°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
OD172SAP-24HBFAN AXIAL 172X50.8MM 24VDC WIRE |
482 |
|
数据手册 |
OD172S | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | - | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|

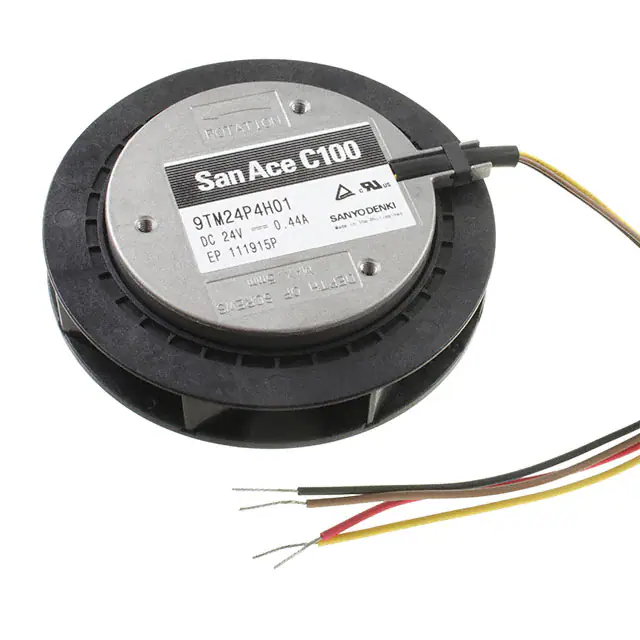

9TM24P4H01FAN IMP MTRZD 100X25MM 24VDC |
217 |
|
数据手册 |
San Ace C100 | Box | Active | 24VDC | Round - 100mm Dia | 25.00mm | 62.5 CFM (1.75m³/min) | 2.250 in H2O (560.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 10.56 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
THB1224B-PM00FAN AXIAL 120X25.4MM 24VDC WIRE |
1,061 |
|
数据手册 |
THB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 174.7 CFM (4.89m³/min) | 2.139 in H2O (532.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 22.8 W | 8300 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.437 lb (198.00 g) |
|

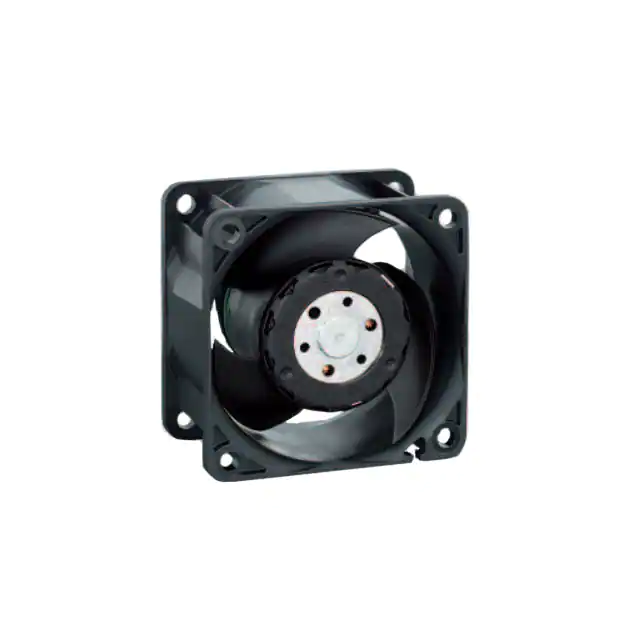

614JHFAN AXIAL 60X32MM 24VDC WIRE |
557 |
|
数据手册 |
600J | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 32.00mm | 41.1 CFM (1.15m³/min) | - | Ball | Tubeaxial | - | 53.0dB(A) | 7.7 W | 11700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | 0.22 lb (99.79 g) |
|
9WL0424P3G001FAN AXIAL 40X28MM 24VDC WIRE |
1,142 |
|
数据手册 |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 1.245 in H2O (310.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.8 W | 15500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|

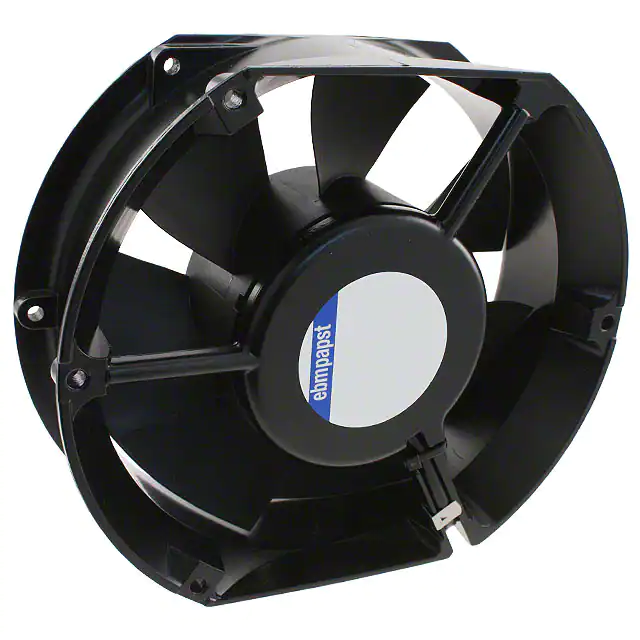

6424FAN AXIAL 172X50.8MM 24VDC TERM |
601 |
|
数据手册 |
6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 241.0 CFM (6.75m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 18 W | 3400 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | - | 1.7 lbs (771.1 g) |
|

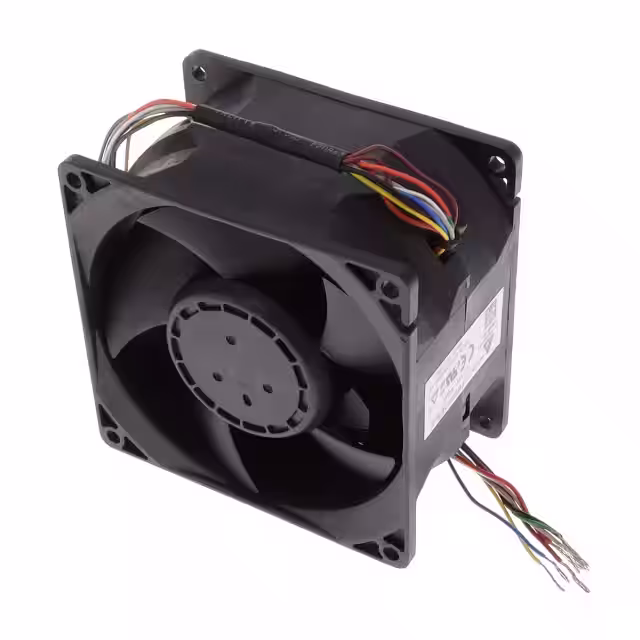

GFB0912ES-EFAN AXIAL DUAL 92X56MM 12VDC |
2,544 |
|
数据手册 |
GFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 56.00mm | 165.3 CFM (4.63m³/min) | 4.670 in H2O (1163.2 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.5dB(A) | 47.4 W | 11200 Front, 11400 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

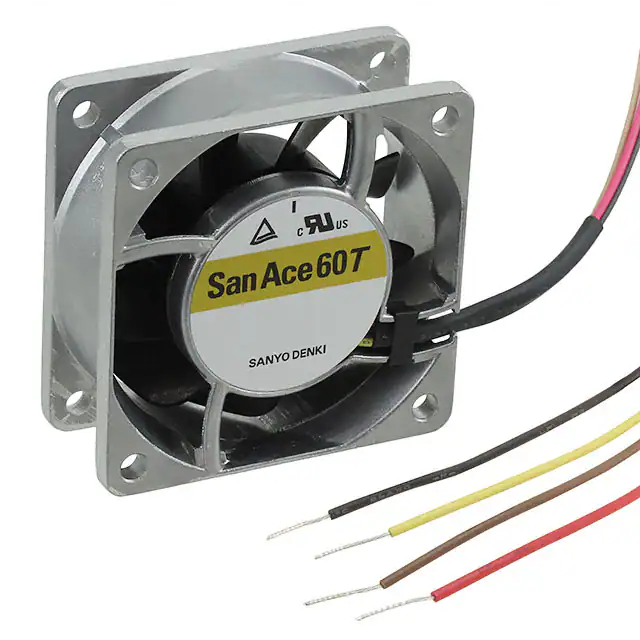

9GT0624P4G001FAN AXIAL 60X25MM 24VDC WIRE |
124 |
|
数据手册 |
San Ace 60T | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 10000 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.22 lb (99.79 g) |
|
|
9GT0612P4G001FAN AXIAL 60X25MM 12VDC WIRE |
2,658 |
|
数据手册 |
San Ace 60T | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 44.5 CFM (1.25m³/min) | 0.976 in H2O (243.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 52.0dB(A) | 6.72 W | 10000 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.22 lb (99.79 g) |
|
4314/2UFAN AXIAL 119X32MM 24VDC WIRE |
104 |
|
数据手册 |
4300U | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 100.1 CFM (2.80m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 45.0dB(A) | 5 W | 2800 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | UL | 0.573 lb (259.91 g) |
|
19039671AFAN AXIAL 171.4X50.8MM JQ24K7 |
1,365 |
|
数据手册 |
Major | Box | Active | 24VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 50.80mm | 283.0 CFM (7.92m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 58.3dB(A) | 39 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.02 lb (9.07 g) |
|
|
9WL0412P3J001FAN AXIAL 40X28MM 12VDC WIRE |
3,481 |
|
数据手册 |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 22.2 CFM (0.622m³/min) | 1.610 in H2O (401.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 6.24 W | 17500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|
|
9WL0424P3J001FAN AXIAL 40X28MM 24VDC WIRE |
574 |
|
数据手册 |
San Ace 40W | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 22.2 CFM (0.622m³/min) | 1.610 in H2O (401.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 6.24 W | 17500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|

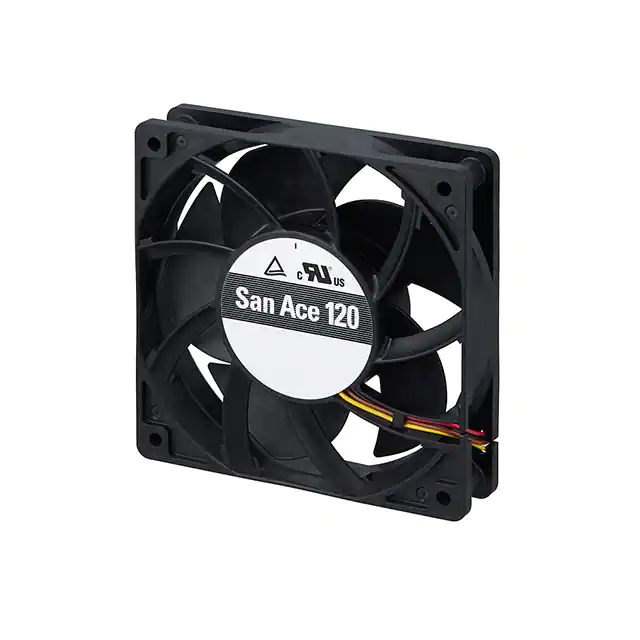

9GA1248P4G001FAN AXIAL 120X25.4MM 48VDC WIRE |
2,087 |
|
数据手册 |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 134.3 CFM (3.76m³/min) | 1.470 in H2O (366.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 11.52 W | 6400 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.617 lb (280.00 g) |
|
19031075AFAN AXIAL 127X38.1MM 24V GL24B4 |
1,647 |
|
数据手册 |
Galaxy | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 150.0 CFM (4.20m³/min) | 0.486 in H2O (121.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 53.6dB(A) | 15 W | 3250 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
4184N/2XFAN AXIAL 119X38MM 24VDC WIRE |
2,143 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 49.0dB(A) | 4.9 W | 3200 RPM | 3 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 0.86 lb (390.09 g) |
|
|
4182NXFAN AXIAL 119X38MM 12VDC TERM |
329 |
|
数据手册 |
4100N | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 105.9 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 4.5 W | 3200 RPM | 2 Terminals | - | -22 ~ 167°F (-30 ~ 75°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
