直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV0912P1G03FAN AXIAL 92X38MM 12VDC WIRE |
444 |
|
数据手册 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 189.0 CFM (5.29m³/min) | 1.730 in H2O (430.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 49.2 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
|

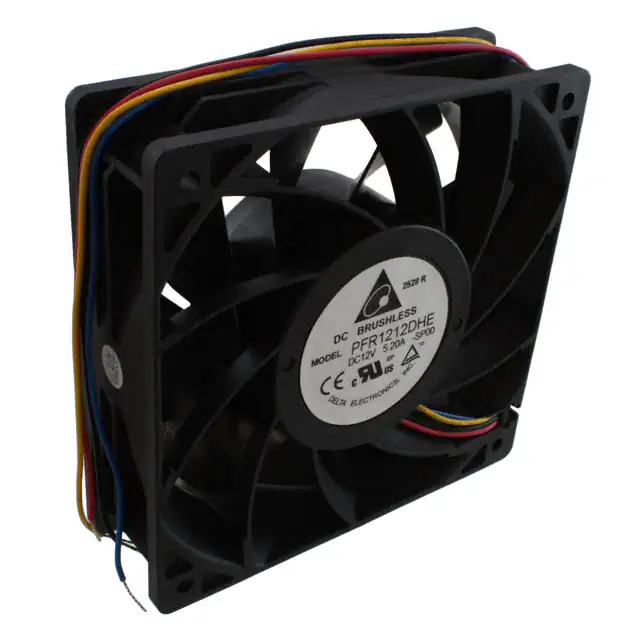

PFR1212DHE-SP00FAN AXIAL 120X38MM 12VDC WIRE |
2,589 |
|
数据手册 |
PFR | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 254.3 CFM (7.12m³/min) | 1.438 in H2O (358.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.5dB(A) | 44.4 W | 7400 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.904 lb (410.05 g) |
|

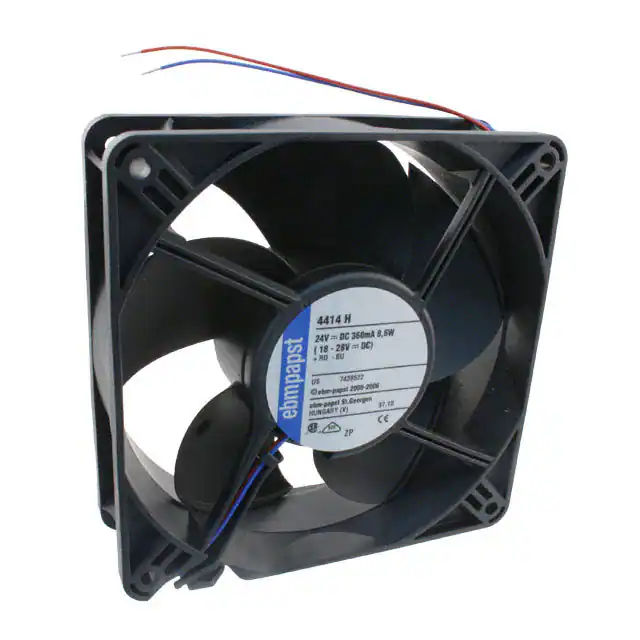

4414HFAN AXIAL 119X38MM 24VDC WIRE |
638 |
|
数据手册 |
4400 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 141.3 CFM (3.96m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 50.0dB(A) | 8.6 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.553 lb (250.84 g) |
|
9BFB12P2H003FAN BLOWER 120X32MM 12VDC WIRE |
1,067 |
|
数据手册 |
San Ace B120 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 56.5 CFM (1.58m³/min) | 5.020 in H2O (1250.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 27.6 W | 3750 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.75 lb (340.19 g) |
|
PFC1212DE-F00FAN AXIAL 120X38MM 12VDC WIRE |
471 |
|
数据手册 |
PFC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
9RA1248P1K001120X38MM 48VDC TACH/PWM |
210 |
|
数据手册 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.683 in H2O (170.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.0dB(A) | 12 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

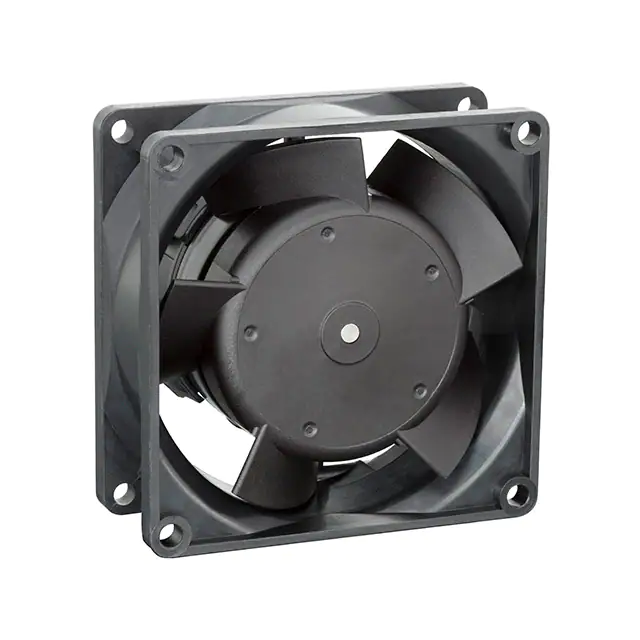

8314/2HFAN AXIAL 80X32MM 24VDC WIRE |
1,075 |
|
数据手册 |
8300 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 47.1 CFM (1.32m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 48.0dB(A) | 6 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
19031101AFAN BLOWER 80X32.4MM 12V WT12B3 |
832 |
|
数据手册 |
Whiffet | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.40mm | 15.0 CFM (0.420m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 51.4dB(A) | 5 W | 4050 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 0.369 lb (167.38 g) |
|
|
12038VE-24R-GUE-2120X120X38MM, 24VDC, 6,400 RPM, |
147 |
|
数据手册 |
12038VE | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 244.0 CFM (6.90m³/min) | 1.490 in H2O (371.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB | 38.4 W | 6400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, VDE | - |
|
AFB1248VHE-TP18FAN AXIAL 120X38MM 48VDC WIRE |
897 |
|
数据手册 |
AFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.5dB(A) | 14.88 W | 4100 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
19032526AFAN AXIAL 120X38.1MM 24V MS24B3 |
252 |
|
数据手册 |
Muffin XP | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.10mm | 110.0 CFM (3.08m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 49.1dB(A) | 7 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL | 0.551 lb (249.93 g) |
|
9HV0924P4G001FAN AXIAL 92X25.2MM 24VDC WIRE |
2,146 |
|
数据手册 |
San Ace 92 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.20mm | 118.0 CFM (3.30m³/min) | 1.120 in H2O (279.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 14.64 W | 7350 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

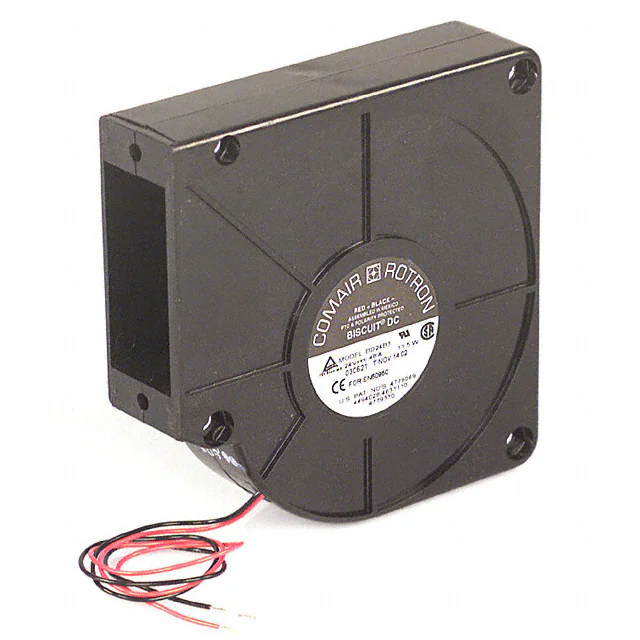

19030621AFAN BLOWER 120.7X31MM 24V BD24B3 |
222 |
|
数据手册 |
Biscuit | Bulk | Active | 24VDC | Square/Rounded - 120.7mm L x 120.7mm H | 31.00mm | 26.0 CFM (0.728m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Blower | Auto Restart, Locked Rotor Protection | 51.2dB(A) | 11.5 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 0.619 lb (280.77 g) |
|
9WL0412P3G001FAN AXIAL 40X28MM 12VDC WIRE |
2,409 |
|
数据手册 |
San Ace 40W | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.7 CFM (0.552m³/min) | 1.245 in H2O (310.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.8 W | 15500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
|
19028935AFAN AXIAL 79.8X41.8MM 48V SD48B1 |
431 |
|
数据手册 |
Sprite | Bulk | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 41.80mm | 35.0 CFM (0.980m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 47.6dB(A) | 3 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.1 lbs (500.0 g) |
|

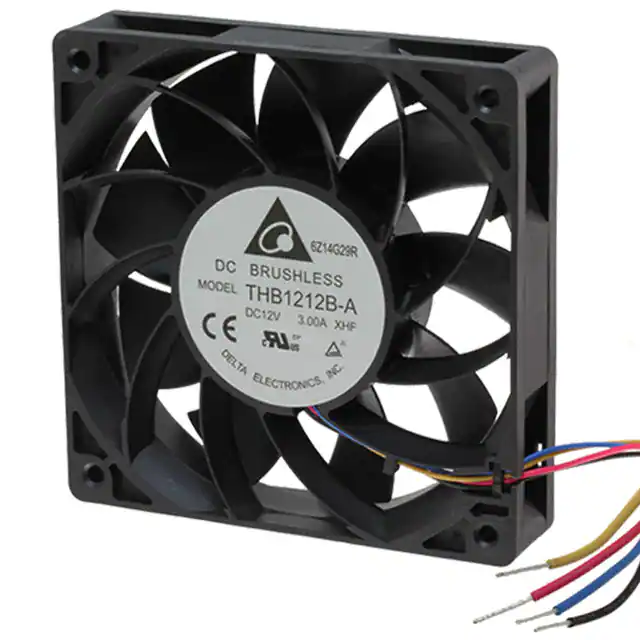

THB1212B-AXHFFAN AXIAL 120X25.4MM 12VDC WIRE |
218 |
|
数据手册 |
THB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 184.2 CFM (5.16m³/min) | 0.899 in H2O (223.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.0dB(A) | 19.2 W | 5300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.437 lb (198.00 g) |
|
9WPA0624P4G001FAN AXIAL 60X25MM 24VDC WIRE |
256 |
|
数据手册 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 11.04 W | 12000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

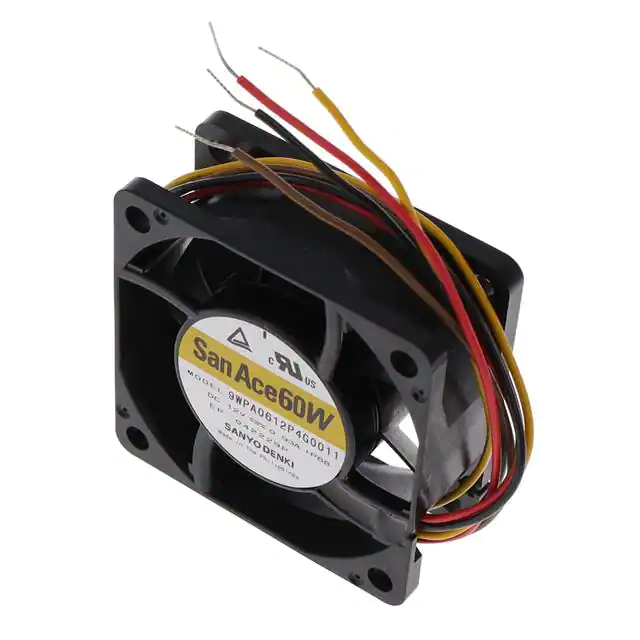

9WPA0612P4G0011FAN AXIAL 60X25MM 12VDC WIRE |
1,056 |
|
数据手册 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 53.7 CFM (1.50m³/min) | 1.440 in H2O (358.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.0dB(A) | 11.16 W | 12000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4184NXHFAN AXIAL 119X38MM 24VDC TERM |
611 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 139.5 CFM (3.91m³/min) | - | Ball | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL, VDE | 0.86 lb (390.09 g) |
|
|
9HV0912P1G001FAN AXIAL 92X38MM 12VDC WIRE |
2,826 |
|
数据手册 |
San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 180.0 CFM (5.04m³/min) | 4.420 in H2O (1100.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.0dB(A) | 62.4 W | 14900 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.553 lb (250.84 g) |
