直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
612NNFAN AXIAL 60X25.4MM 12VDC WIRE |
276 |
|
数据手册 |
600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.6 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|

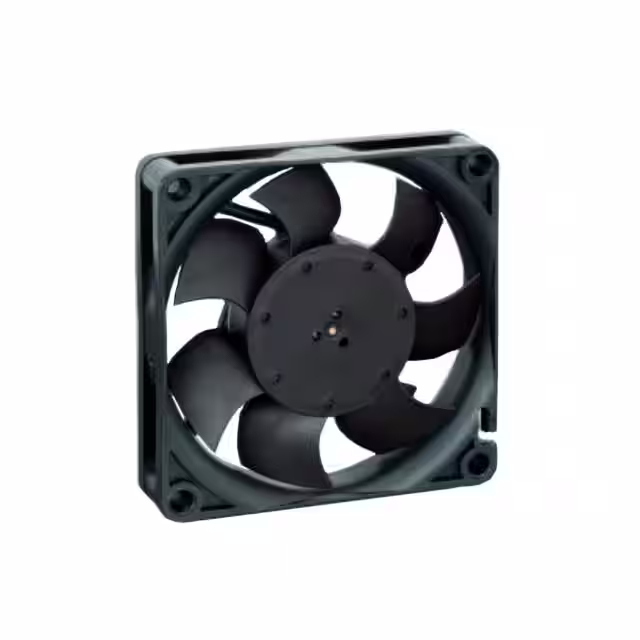

712F/2M-006FAN AXIAL 70X15MM 12VDC RECT |
178 |
|
数据手册 |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 21.2 CFM (0.594m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.1 W | 4300 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9CRA0312P4K03FAN AXIAL DUAL 38X48MM 12VDC |
1,394 |
|
数据手册 |
San Ace 38 | Box | Active | 12VDC | Square - 38mm L x 38mm H | 48.00mm | 27.2 CFM (0.762m³/min) | 2.810 in H2O (700.0 Pa) | Ball | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 18 W | 17600 Front, 14520 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.176 lb (80.00 g) |
|

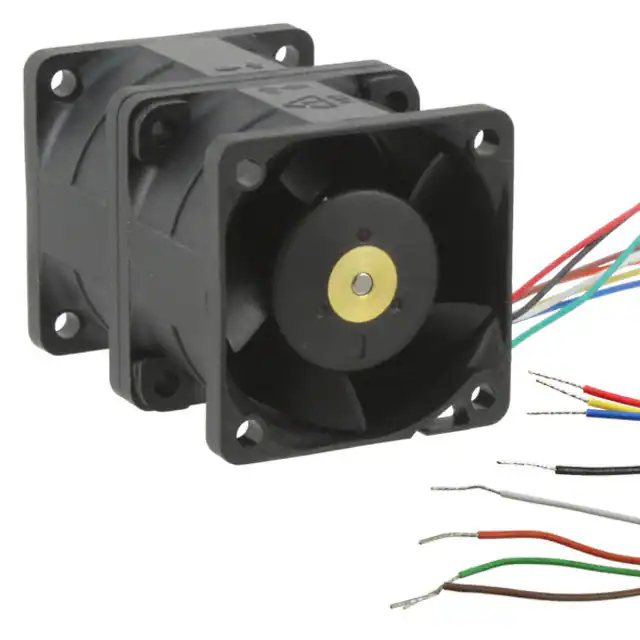

GFC0412DS-TP01FAN AXIAL DUAL 40X56MM 12VDC |
13,658 |
|
数据手册 |
GFC | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 30.5 CFM (0.854m³/min) | 1.726 in H2O (429.9 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 12 W | 15300 Front, 11300 Rear | 4 Wire Leads per Fan | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.199 lb (90.26 g) |
|
|
612NHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,515 |
|
数据手册 |
600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 27.1 CFM (0.759m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
624HFAN AXIAL 60X25.4MM 24VDC WIRE |
983 |
|
数据手册 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.1 CFM (0.759m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.4 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
622HFAN AXIAL 60X25.4MM 12VDC WIRE |
447 |
|
数据手册 |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 27.1 CFM (0.759m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 2.3 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
624HHFAN AXIAL 60X25.4MM 24VDC WIRE |
225 |
|
数据手册 |
620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 3.6 W | 8200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
622HHFAN AXIAL 60X25.4MM 12VDC WIRE |
192 |
|
数据手册 |
620 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 3.5 W | 8200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
BF.jpg)
|
CFM-A225BF-258-597-22FAN AXIAL 120X25.4MM 24VDC WIRE |
133 |
|
数据手册 |
CFM-120BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 185.5 CFM (5.19m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 59.7dB(A) | 27.36 W | 5800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

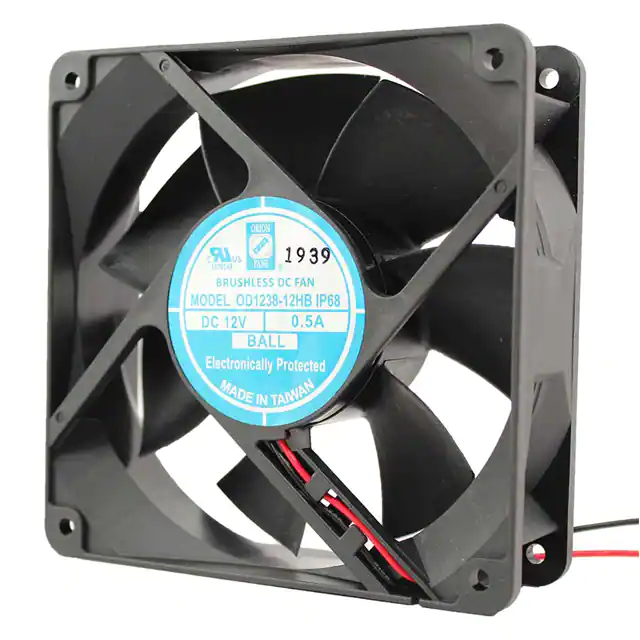

OD1238-12HBIP68FAN AXIAL 120X38MM 12VDC WIRE |
548 |
|
数据手册 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 6 W | 2895 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
OD1238-24HBIP55FAN AXIAL 120X38MM 24VDC WIRE |
191 |
|
数据手册 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 12 W | 2895 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|

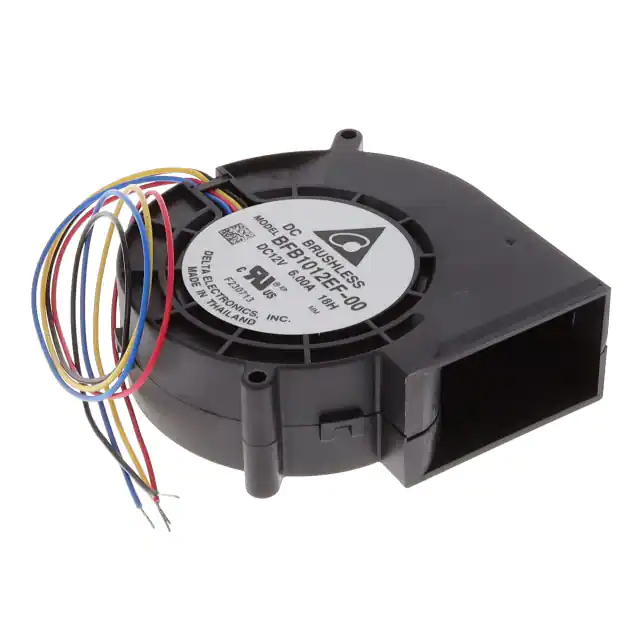

BFB1012EF-0018HFAN BLOWER 96.6X32.9MM 12VDC |
1,179 |
|
数据手册 |
BFB - High-Performance | Box | Active | 12VDC | Rectangular/Rounded - 96.6mm L x 94.3mm H | 32.90mm | 56.1 CFM (1.57m³/min) | 6.903 in H2O (1719.5 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 60 W | 7500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.397 lb (180.08 g) |
|

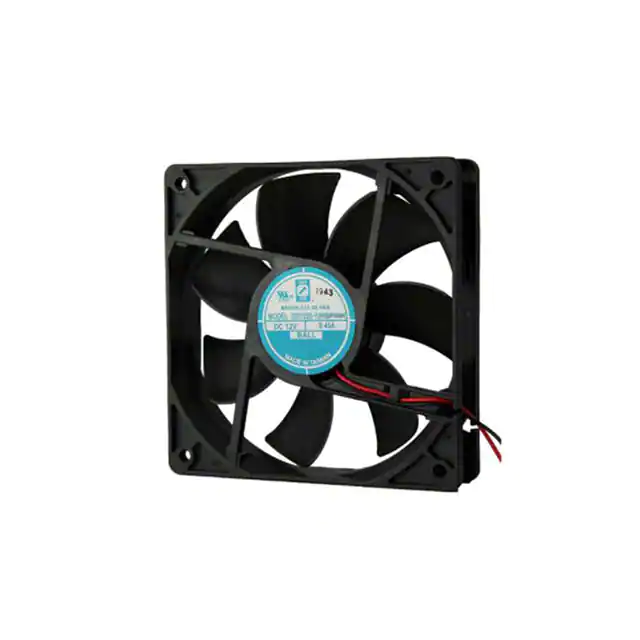

OD1225-12HBIP69KFAN AXIAL 120X25MM 12VDC WIRE |
104 |
|
数据手册 |
OD1225-IP69K | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 120.0 CFM (3.36m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB(A) | 5.4 W | 3100 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
9BMB24P2K01FAN BLOWER 97.1X33MM 24VDC WIRE |
2,190 |
|
数据手册 |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 33.00mm | 56.8 CFM (1.59m³/min) | 5.140 in H2O (1280.0 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 38.88 W | 6850 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.419 lb (190.06 g) |
|

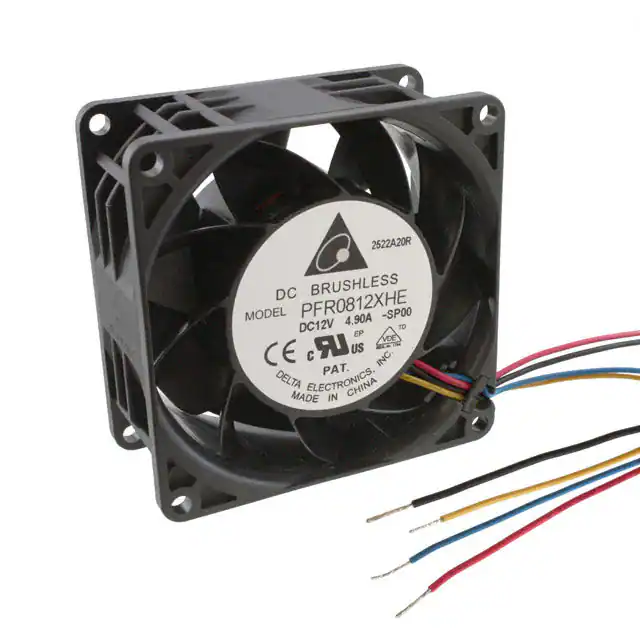

PFR0812XHE-SP00FAN AXIAL 80X38MM 12VDC WIRE |
1,942 |
|
数据手册 |
PFR | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 134.3 CFM (3.76m³/min) | 3.000 in H2O (747.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.5dB(A) | 42 W | 13300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.573 lb (260.00 g) |
|
9G1212H4D01FAN AXIAL 119X25MM 12VDC WIRE |
631 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 3.72 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1212G401FAN AXIAL 119X25MM 12VDC WIRE |
284 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 10.8 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9G1224A401FAN AXIAL 119X25MM 24VDC WIRE |
107 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 25.00mm | 100.0 CFM (2.80m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 3150 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|

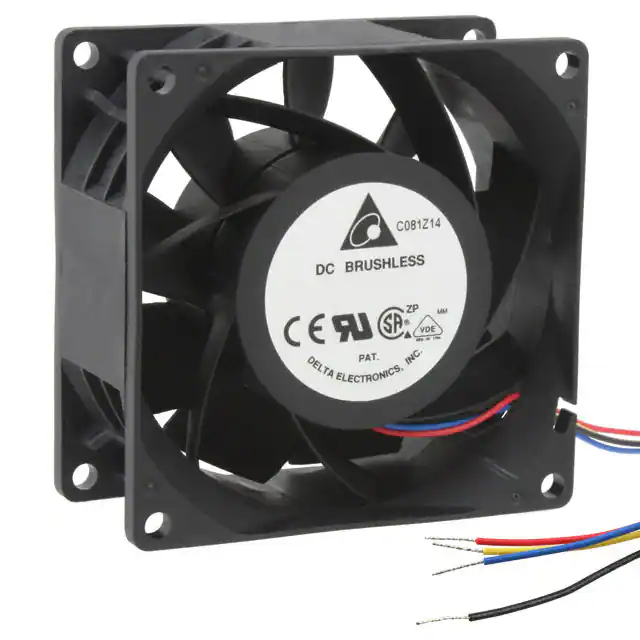

PFC0812DE-SP07FAN AXIAL 80X38MM 12VDC WIRE |
360 |
|
数据手册 |
PFC | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 86.5 CFM (2.42m³/min) | 0.895 in H2O (222.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.4dB(A) | 9.6 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
