直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA1224P4G001FAN AXIAL 120X25MM 24VDC WIRE |
170 |
|
数据手册 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 6.72 W | 4500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
.jpg)
|
9GV0624P1G031FAN AXIAL 60X38MM 24VDC WIRE |
849 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 33.6 W | 16000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|
|
9GV0624P1G03FAN AXIAL 60X38MM 24VDC WIRE |
743 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 84.0 CFM (2.35m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 33.6 W | 16000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
|

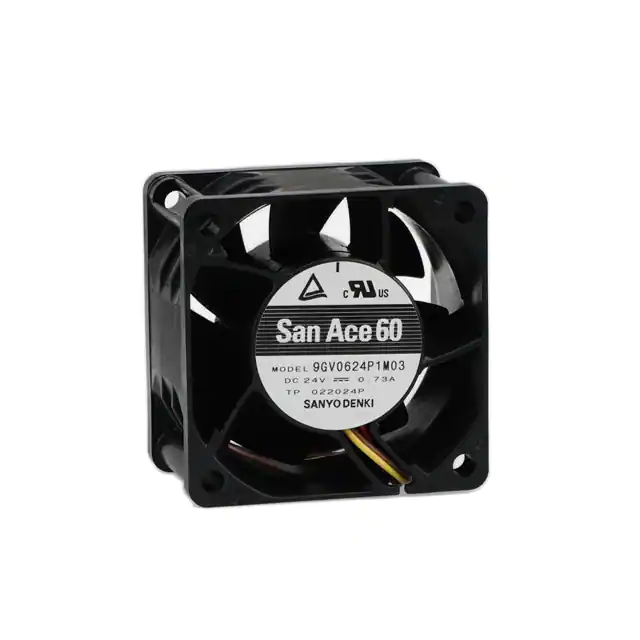

9GV0624P1M03FAN AXIAL 60X38MM 24VDC WIRE |
408 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 68.0 CFM (1.90m³/min) | 1.990 in H2O (495.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 17.52 W | 13000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.287 lb (130.18 g) |
.GN.JPG)
|

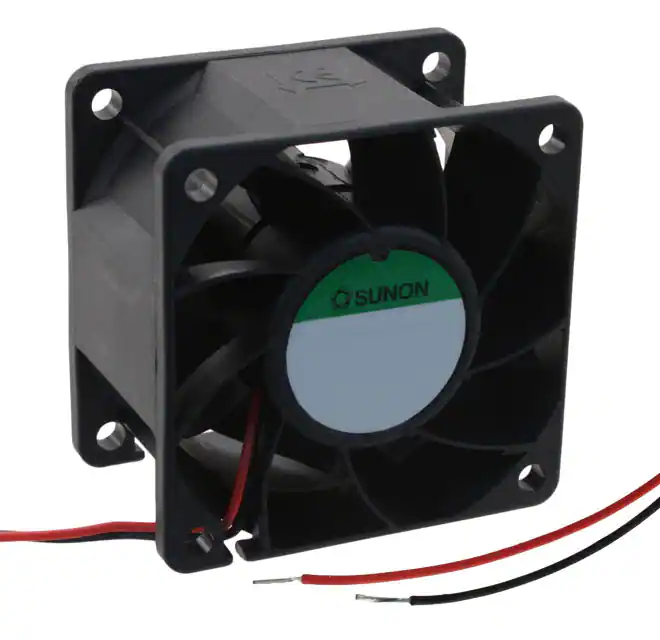

PMD2406PMB1-A.(2).GNFAN AXIAL 60X38MM 24VDC WIRE |
709 |
|
数据手册 |
PMD | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 56.5 CFM (1.58m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 10.3 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.199 lb (90.26 g) |
.GN.JPG)
|

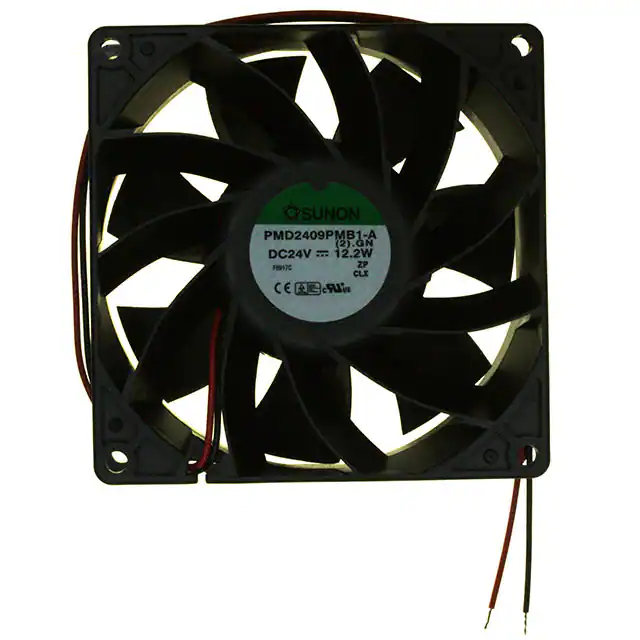

PMD2409PMB1-A.(2).GNFAN AXIAL 92X38MM 24VDC WIRE |
231 |
|
数据手册 |
PMD | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 120.2 CFM (3.37m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | - | 57.6dB(A) | 12.2 W | 4900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.419 lb (190.06 g) |
|
ODB600-12HBFAN BLOWER 120.5X32MM 12VDC WIRE |
390 |
|
数据手册 |
ODB600PT | Box | Active | 12VDC | Square/Rounded - 120.5mm L x 120.5mm H | 32.00mm | 35.0 CFM (0.980m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Blower | - | 49.0dB | - | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus | - |
|

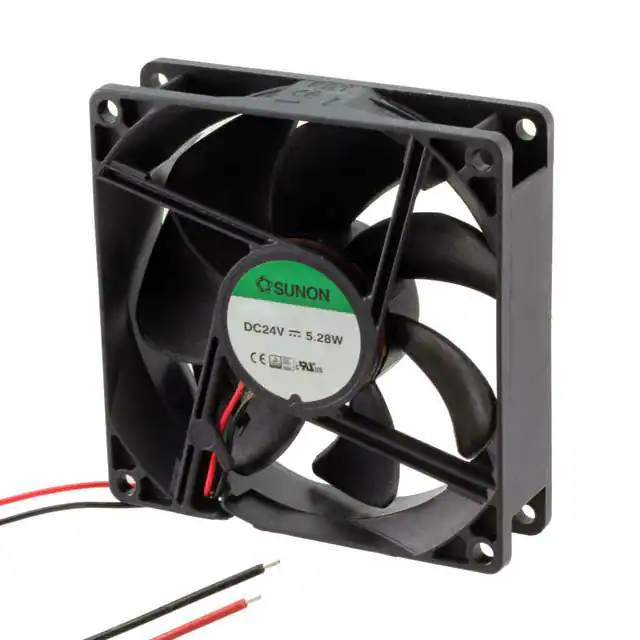

GE92252B1-000U-AC9FAN AXIAL 92X25MM 24VDC WIRE |
1,070 |
|
数据手册 |
GE | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB(A) | 5.28 W | 4500 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.249 lb (112.94 g) |
|
|
PF97331B1-B00U-A99FAN BLOWER 97X33MM 12VDC WIRE |
800 |
|
数据手册 |
PF | Bulk | Active | 12VDC | Rectangular/Rounded - 97mm L x 95mm H | 33.00mm | 44.2 CFM (1.24m³/min) | 3.390 in H2O (844.4 Pa) | Ball | Blower | Auto Restart | 58.0dB(A) | 19.2 W | 5400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UL | 0.406 lb (184.16 g) |
|
GE80252B1-000U-AC9FAN AXIAL 80X25MM 24VDC WIRE |
360 |
|
数据手册 |
GE | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | - | 47.5dB(A) | 4.8 W | 4800 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.231 lb (104.78 g) |
|
OD1238-24LBXCFAN AXIAL 120X38.5MM 24VDC WIRE |
379 |
|
数据手册 |
OD1238 XC | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 150.0 CFM (4.20m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Auto Restart | 52.0dB | 9 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD8032-12HBIP69KFAN AXIAL 80X32MM 12VDC WIRE |
114 |
|
数据手册 |
OD8032-IP69K | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 77.0 CFM (2.16m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB(A) | 7.8 W | 6000 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD8032-24HBIP69KFAN AXIAL 80X32MM 24VDC WIRE |
104 |
|
数据手册 |
OD8032-IP69K | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 77.0 CFM (2.16m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Auto Restart | 50.0dB(A) | 7.8 W | 6000 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

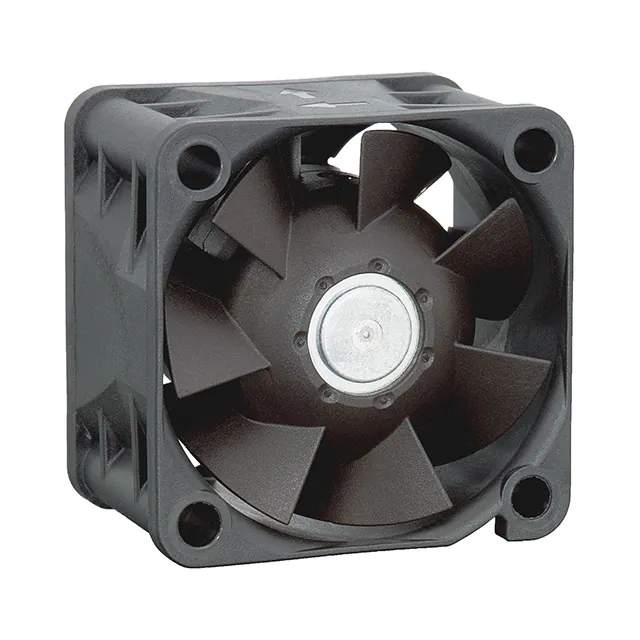

424JHFAN AXIAL 40X28MM 24VDC WIRE |
495 |
|
数据手册 |
420J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 22.4 CFM (0.627m³/min) | - | Ball | Tubeaxial | - | 54.0dB(A) | 7.08 W | 17200 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 0.99 lb (449.06 g) |
|
255MFAN AXIAL 25X8MM 5VDC WIRE |
1,273 |
|
数据手册 |
250 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 8.00mm | 1.2 CFM (0.034m³/min) | - | Sintec | Tubeaxial | - | 5.0dB(A) | 200 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.011 lb (4.99 g) |
|
614NHHFAN AXIAL 60X25.4MM 24VDC WIRE |
994 |
|
数据手册 |
600N | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 41.0dB(A) | 3 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|

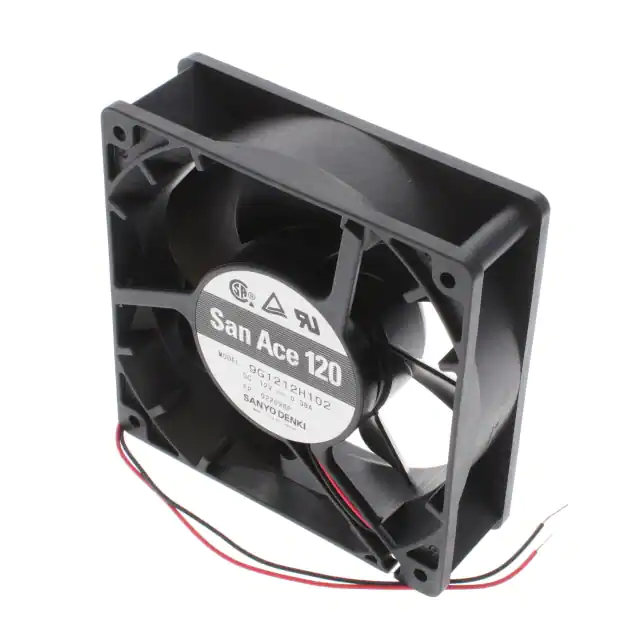

9G1212H102FAN AXIAL 119X38MM 12VDC WIRE |
670 |
|
数据手册 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | 4.56 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.728 lb (330.22 g) |
|
|
ODB600-24HBFAN BLOWER 120.5X32MM 24VDC WIRE |
2,156 |
|
数据手册 |
ODB600PT | Box | Active | 24VDC | Square/Rounded - 120.5mm L x 120.5mm H | 32.00mm | 35.0 CFM (0.980m³/min) | 0.590 in H2O (147.0 Pa) | Ball | Blower | - | 49.0dB | - | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus | - |
|

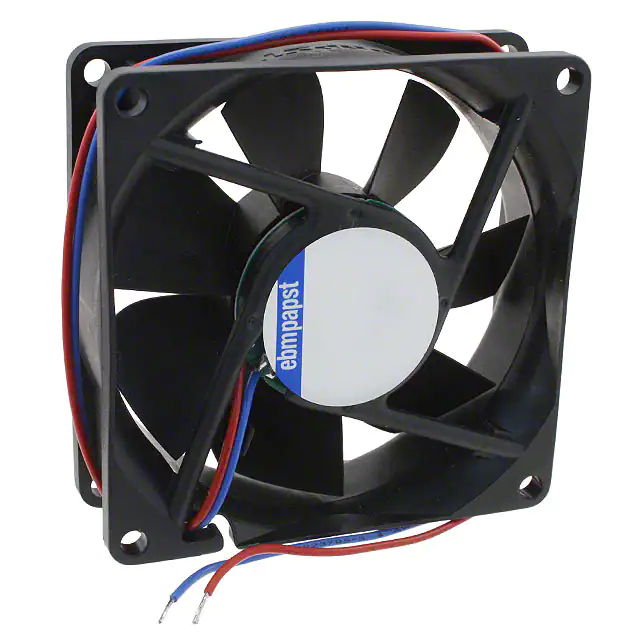

8414NHFAN AXIAL 80X25.4MM 24VDC WIRE |
398 |
|
数据手册 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.4 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.21 lb (95.25 g) |
|
|
8414NFAN AXIAL 80X25.4MM 24VDC WIRE |
385 |
|
数据手册 |
8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
