直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

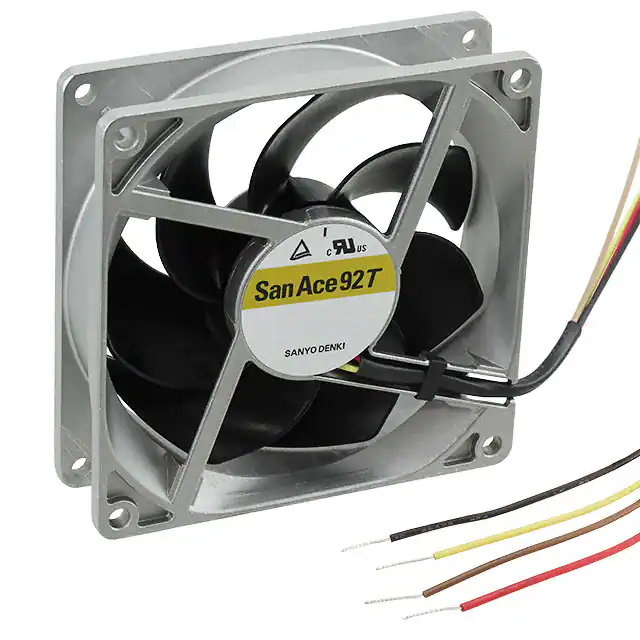

9GT0924P4J001FAN AXIAL 92X25MM 24VDC WIRE |
423 |
|
数据手册 |
San Ace 92T | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|
9WV0848P1H001FAN AXIAL 80X38MM 48VDC WIRE |
297 |
|
数据手册 |
San Ace 80W | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 131.0 CFM (3.67m³/min) | 1.770 in H2O (440.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 36 W | 9700 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.518 lb (234.96 g) |
|

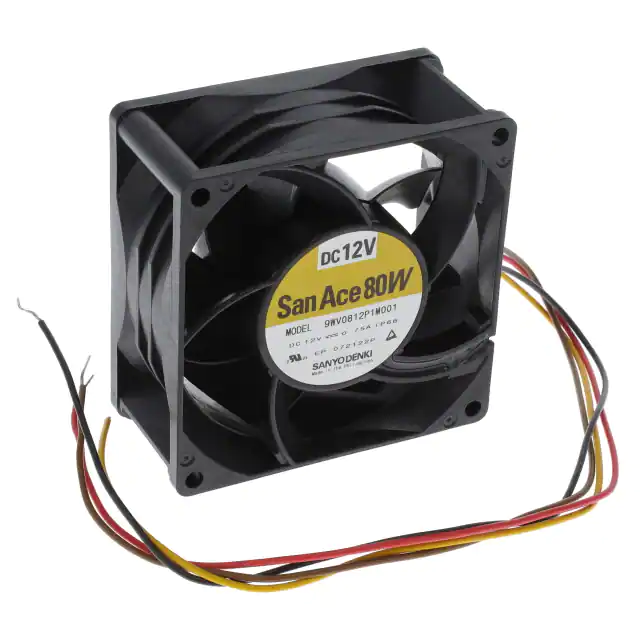

9WV0812P1M001FAN AXIAL 80X38MM 12VDC WIRE |
3,780 |
|
数据手册 |
San Ace 80W | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 81.0 CFM (2.27m³/min) | 0.680 in H2O (169.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 51.0dB(A) | 9 W | 6000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
PFB1248UHE-EPFAN AXIAL 120X38MM 48VDC WIRE |
814 |
|
数据手册 |
PFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 243.7 CFM (6.82m³/min) | 1.311 in H2O (326.6 Pa) | Ball | Tubeaxial | GR-487 (Salt Fog Protection), PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 42.24 W | 5300 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -40 ~ 167°F (-40 ~ 75°C) | CE, CSA, UL, VDE | 0.838 lb (380.11 g) |
|
4184N/17XFAN AXIAL 119X38MM 24VDC WIRE |
198 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 49.0dB(A) | 4.9 W | 3200 RPM | 3 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | CE, CSA, EAC, UL, VDE | - |
|
RER101-36/12N/2HHPR-181FAN IMP MTRZD 101X51.7MM 12VDC |
291 |
|
数据手册 |
RER101 | Bulk | Active | 12VDC | Round - 101mm Dia | 51.70mm | 112.0 CFM (3.14m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 20.5 W | 6000 RPM | 4 Wire Leads | - | - | - | 0.672 lb (304.81 g) |
|

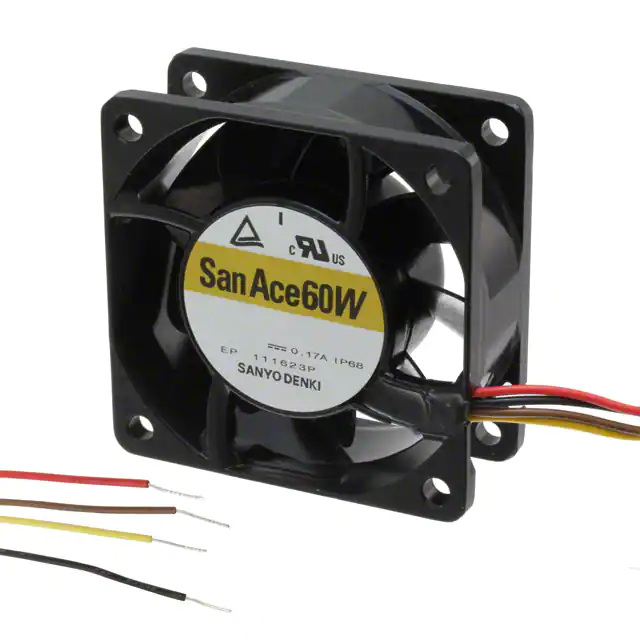

9WL0612P4H001FAN AXIAL 60X25MM 12VDC WIRE |
269 |
|
数据手册 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 2.04 W | 6150 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WL0624P4H001FAN AXIAL 60X25MM 24VDC WIRE |
149 |
|
数据手册 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 27.5 CFM (0.770m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 6150 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

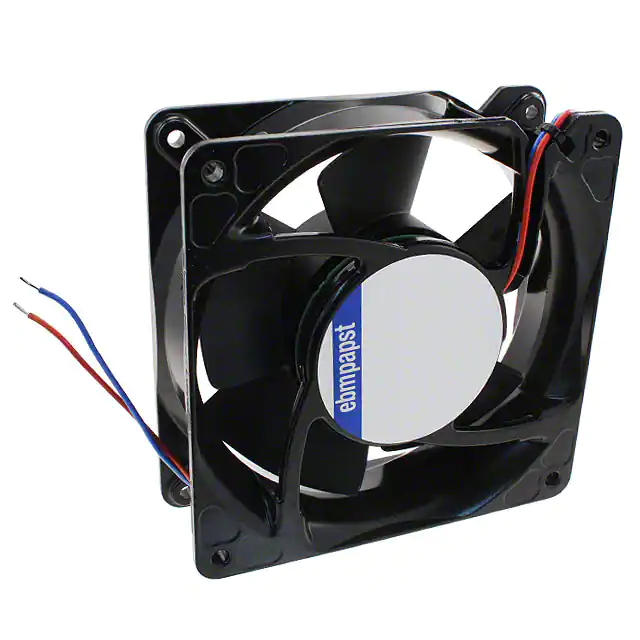

4114NH4FAN AXIAL 119X38MM 24VDC WIRE |
2,172 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 209.0 CFM (5.85m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | - | 30 W | 6800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
9WL0624P4J001FAN AXIAL 60X25MM 24VDC WIRE |
4,896 |
|
数据手册 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 4.56 W | 8650 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

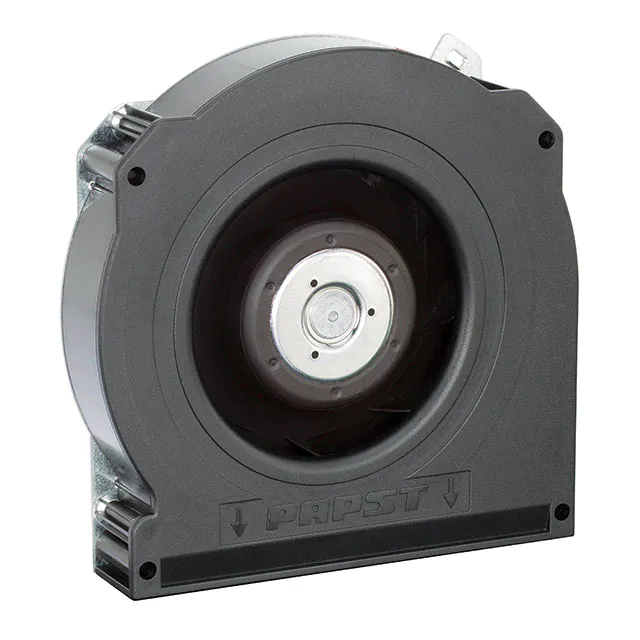

RLF100-11/12FAN BLOWER CF 127X25.4MM 12VDC |
264 |
|
数据手册 |
RLF100 | Bulk | Active | 12VDC | Square/Rounded - 127mm L x 127mm H | 25.40mm | 37.7 CFM (1.06m³/min) | - | Ball | Blower, Centrifugal | - | 60.0dB(A) | 8 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.71 lb (322.05 g) |
|

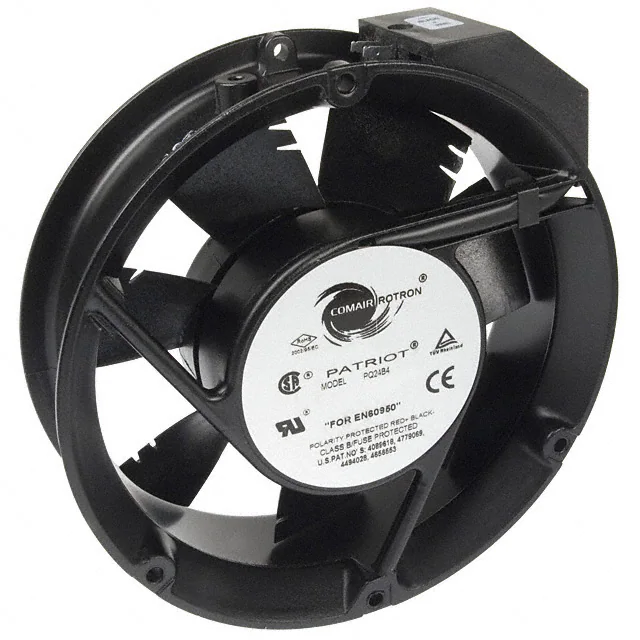

19031084AFAN AXIAL 172X50.8MM 24V PQ24B4 |
228 |
|
数据手册 |
Patriot | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 235.0 CFM (6.58m³/min) | 0.769 in H2O (191.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 51.2dB(A) | 24 W | 3500 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.9 lbs (861.8 g) |
|
17001177AFAN AXIAL 24VDC GLD24Z3E2X-E3 |
122 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.10mm | 192.0 CFM (5.38m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 59.4dB(A) | 31.2 W | 4100 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
RLF100-11/12/2FAN BLOWER CF 127X25MM 12VDC |
3,483 |
|
数据手册 |
RLF100 | Bulk | Active | 12VDC | Square/Rounded - 127mm L x 127mm H | 25.00mm | 24.2 CFM (0.678m³/min) | 0.578 in H2O (144.0 Pa) | Ball | Blower, Centrifugal | Speed Sensor (Tach) | - | 8.6 W | 5100 RPM | 3 Wire Leads | IP20 | -4 ~ 167°F (-20 ~ 75°C) | CCC, CE, CSA, UL, VDE | 0.672 lb (304.81 g) |
|
|
9WL0624P4S001FAN AXIAL 60X25MM 24VDC WIRE |
1,313 |
|
数据手册 |
San Ace 60W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.16 W | 11000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
9WL0612P4S001FAN AXIAL 60X25MM 12VDC WIRE |
123 |
|
数据手册 |
San Ace 60W | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.04 W | 11000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
19031091AFAN AXIAL 171.5X50.8MM JQ48B4 |
118 |
|
数据手册 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 50.80mm | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 54.3dB(A) | 22 W | 3475 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 1.9 lbs (861.8 g) |
|

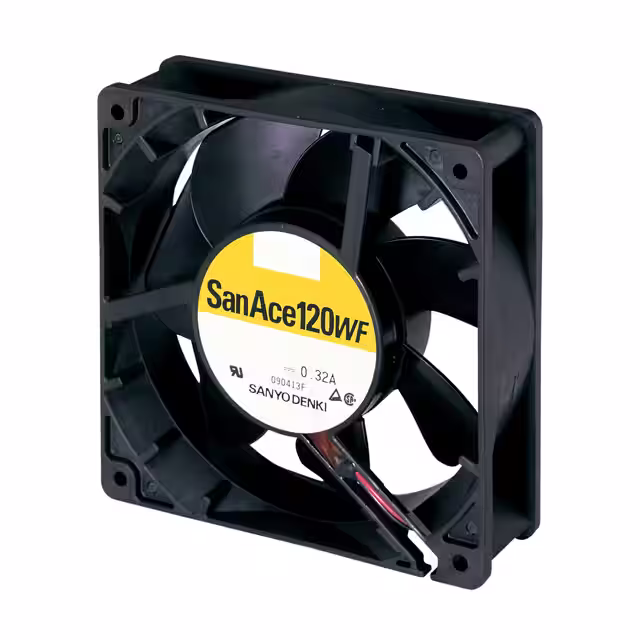

9WF1224H101FAN AXIAL 119X38MM 24VDC WIRE |
3,516 |
|
数据手册 |
San Ace 120WF | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 118.0 CFM (3.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 7.68 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.784 lb (355.62 g) |
|

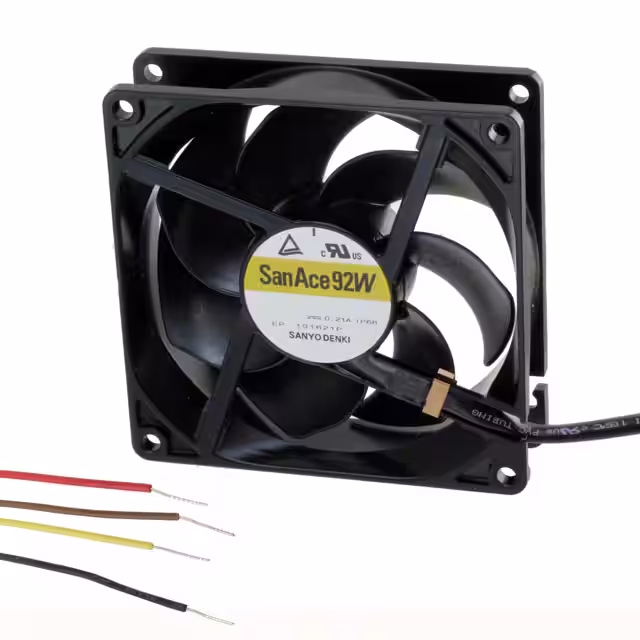

9WL0924P4J001FAN AXIAL 92X25MM 24VDC WIRE |
1,636 |
|
数据手册 |
San Ace 92W | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

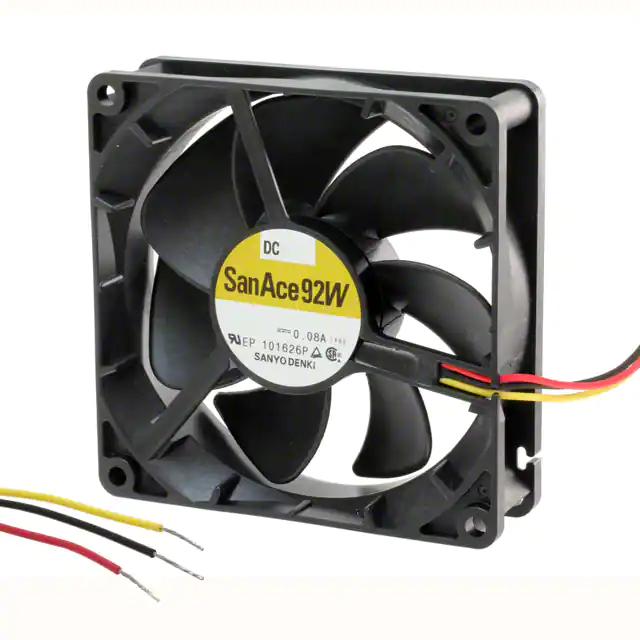

9WL0912P4J001FAN AXIAL 92X25MM 12VDC WIRE |
1,924 |
|
数据手册 |
San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 5.04 W | 5000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
