直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9SG5748P5G01FAN AXIAL 172X51MM 48VDC WIRE |
3,988 |
|
数据手册 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 546.0 CFM (15.29m³/min) | 4.020 in H2O (1001.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 140 W | 8600 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | cURus, TUV | 1.7 lbs (760.0 g) |
|
4114N/2H7PFAN AXIAL 119X38MM 24VDC WIRE |
2,542 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 294.0 CFM (8.23m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 90 W | 9500 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.937 lb (425.02 g) |
|
9SG5748P5H01FAN AXIAL 172X51MM 48VDC WIRE |
2,531 |
|
数据手册 |
San Ace 172 | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 410.0 CFM (11.48m³/min) | 3.090 in H2O (769.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 1.62 W | 6500 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | cURus, TUV | 1.7 lbs (760.0 g) |
|
|
4118N/2H8PFAN AXIAL 119X38MM 48VDC WIRE |
173 |
|
数据手册 |
4100N | Bulk | Active | 48VDC | Square - 119mm L x 119mm H | 38.00mm | 336.0 CFM (9.41m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 78.0dB(A) | 120 W | 11000 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | 0.937 lb (425.02 g) |
|

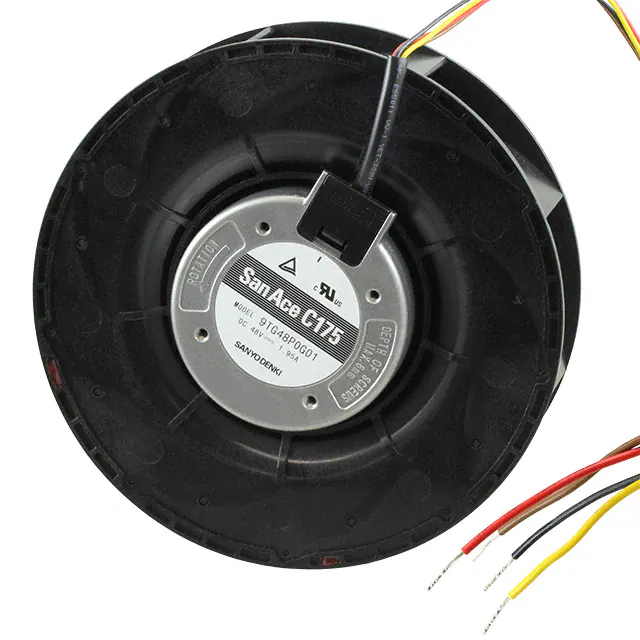

9TG48P0G01FAN IMP MTRZD 175X69MM 48VDC |
112 |
|
数据手册 |
San Ace C175 | Box | Active | 48VDC | Round - 175mm Dia | 69.00mm | 494.7 CFM (13.85m³/min) | 3.550 in H2O (885.0 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 93.6 W | 4700 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (771.1 g) |
|
5314/2TDHPFAN AXIAL 140X50.8MM 24VDC WIRE |
435 |
|
数据手册 |
5300TD | Bulk | Active | 24VDC | Square - 140mm L x 140mm H | 50.80mm | 241.3 CFM (6.76m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 41 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
6312/2TDHPFAN AXIAL 172X50.8MM 12VDC WIRE |
122 |
|
数据手册 |
6300TD | Bulk | Active | 12VDC | Round - 172mm Dia | 50.80mm | 353.0 CFM (9.88m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 41 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|

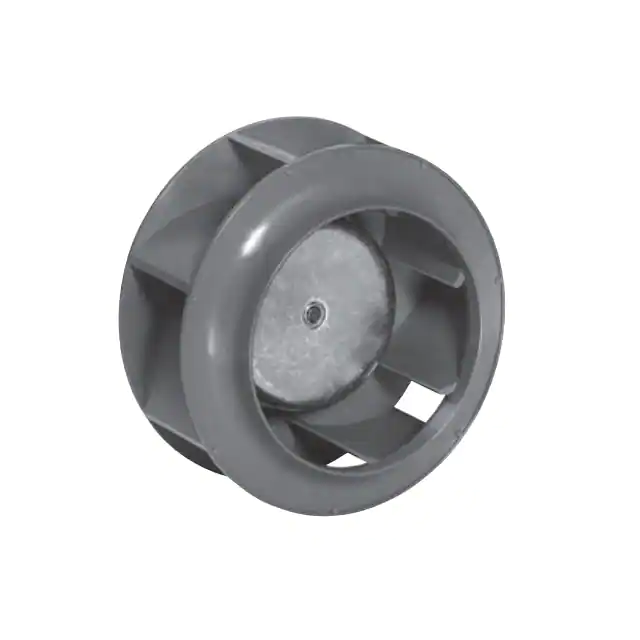

R1G133-AA17-02FAN IMP MTRZD 133X91MM 24VDC |
336 |
|
数据手册 |
R1G133AA | Bulk | Active | 24VDC | Round - 133mm Dia | 91.00mm | 212.0 CFM (5.94m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 28 W | 3900 RPM | 4 Wire Leads | - | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | 1.4 lbs (635.0 g) |
|
4114N/2H8P00377FAN AXIAL 119X38MM 24VDC WIRE |
3,596 |
|
数据手册 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 335.7 CFM (9.40m³/min) | - | Ball | Tubeaxial | - | 78.0dB(A) | 120 W | 11000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
TF037E-2000-FFAN BLOWER 80.2X52MM AERO 24VDC |
109 |
|
数据手册 |
TF037E | Tray | Active | 24VDC | Rectangular/Rounded - 80.2mm L x 60mm H | 52.00mm | 3.5 CFM (0.098m³/min) | 12.040 in H2O (3000.0 Pa) | Aerodynamic | Blower, Centrifugal | - | 65.0dB(A) | 22.7 W | 35500 RPM | 12 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.364 lb (165.11 g) |
|

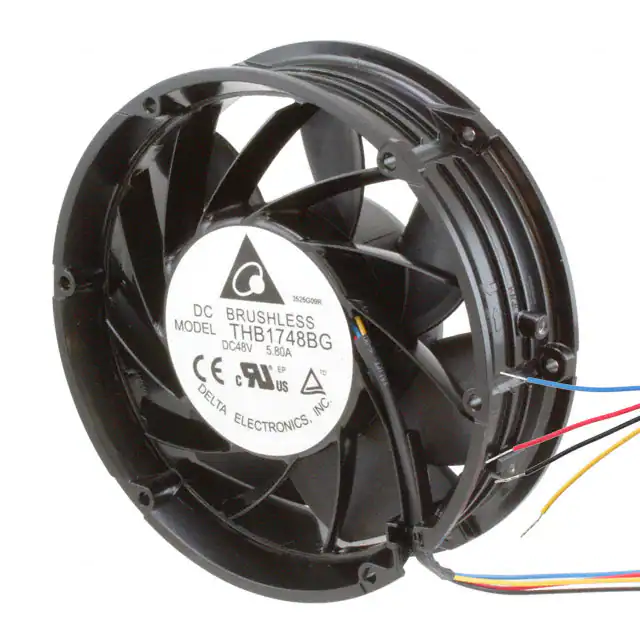

THB1748BGFAN AXIAL 172X50.8MM 48VDC WIRE |
425 |
|
数据手册 |
THB | Box | Active | 48VDC | Round - 172mm Dia | 50.80mm | 607.0 CFM (17.00m³/min) | 4.136 in H2O (1030.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 168 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 2.1 lbs (952.5 g) |
|
|
6314/2TDHHPFAN AXIAL 172X50.8MM 24VDC WIRE |
326 |
|
数据手册 |
6300TD | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 418.0 CFM (11.70m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 67 W | 7000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
|
6318/2TDHHPFAN AXIAL 172X50.8MM 48VDC WIRE |
108 |
|
数据手册 |
6300TD | Bulk | Active | 48VDC | Round - 172mm Dia | 50.80mm | 417.9 CFM (11.70m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 67 W | 7000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 2 lbs (907.2 g) |
|
|
6318/2TDH4PFAN AXIAL 172X50.8MM 48VDC WIRE |
2,530 |
|
数据手册 |
6300TD | Bulk | Active | 48VDC | Round - 172mm Dia | 50.80mm | 559.1 CFM (15.65m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 150 W | 9200 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 2 lbs (907.2 g) |
|
2214F/2TDHOFAN AXIAL 220X50.8MM 24VDC WIRE |
3,807 |
|
数据手册 |
2200FTD | Box | Active | 24VDC | Round - 220mm Dia | 50.80mm | 465.0 CFM (13.02m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 35 W | 4250 RPM | 4 Wire Leads | - | -13 ~ 167°F (-25 ~ 75°C) | UL | 2.3 lbs (1 kg) |
|
RG160-28/14NUFAN BLOWER CF 220X56MM 24VDC |
2,031 |
|
数据手册 |
RG160NU | Bulk | Active | 24VDC | Square - 220mm L x 220mm H | 56.00mm | 123.0 CFM (3.44m³/min) | - | Ball | Blower, Centrifugal | - | - | 20 W | 2850 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 131°F (-20 ~ 55°C) | UL | 3 lbs (1.4 kg) |
|
6314N/2TDHHPFAN AXIAL 171.5X50.8MM 24VDC |
1,345 |
|
数据手册 |
6300NTD | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 571.3 CFM (16.00m³/min) | - | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach) | - | 135 W | 7200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | - |
|

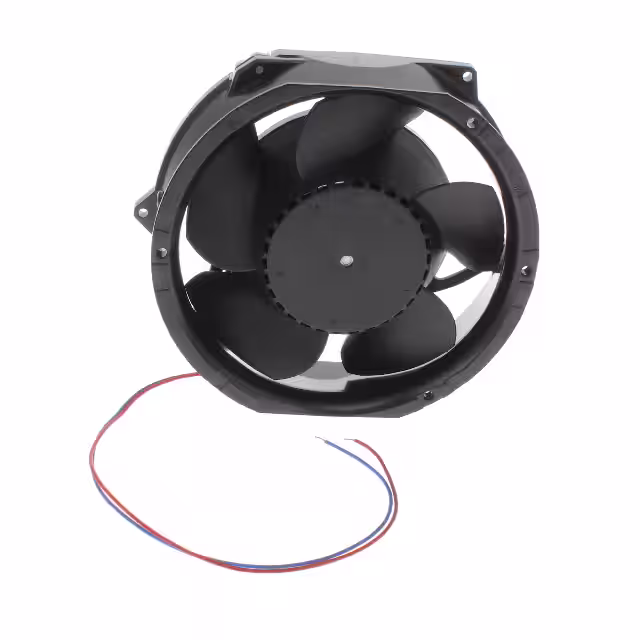

DV6424FAN AXIAL 171.5X50.8MM 24VDC |
1,356 |
|
数据手册 |
DV6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 159.7mm H | 50.80mm | 312.2 CFM (8.74m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection | 56.0dB(A) | 40 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | - |
|
9WL1412P5G001FAN AXIAL 140X51MM 12VDC WIRE |
3,941 |
|
数据手册 |
San Ace 140W | Bulk | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 318.0 CFM (8.90m³/min) | 2.630 in H2O (655.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 62 W | 7500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 1.653 lb (750.0 g) |
|
R200A4-051-D0550FAN AXIAL 200X51MM 24VDC WIRE |
149 |
|
数据手册 |
R200 | Bulk | Active | 24VDC | Round - 200mm Dia | 51.00mm | 590.0 CFM (16.52m³/min) | 3.320 in H2O (828.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB | 67.2 W | 5000 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.6 lbs (1.2 kg) |
