DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

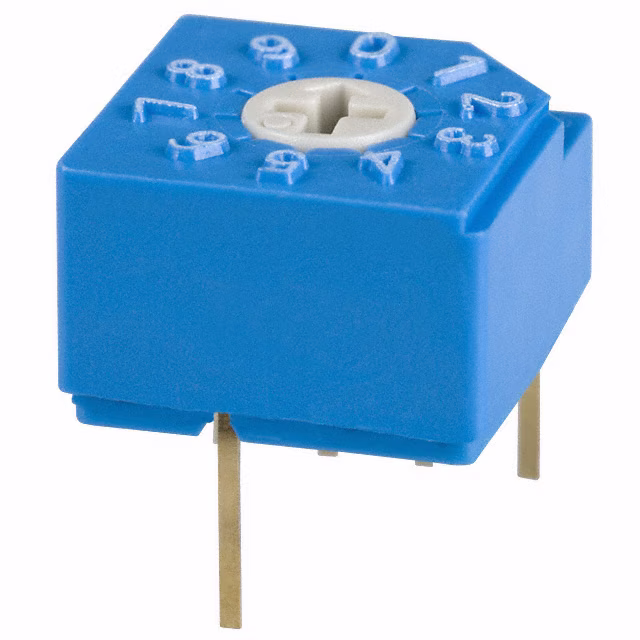

S-2010ASWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
2,815 |
|
数据手册 |
S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SMRR7016C-1ESWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
1,017 |
|
数据手册 |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

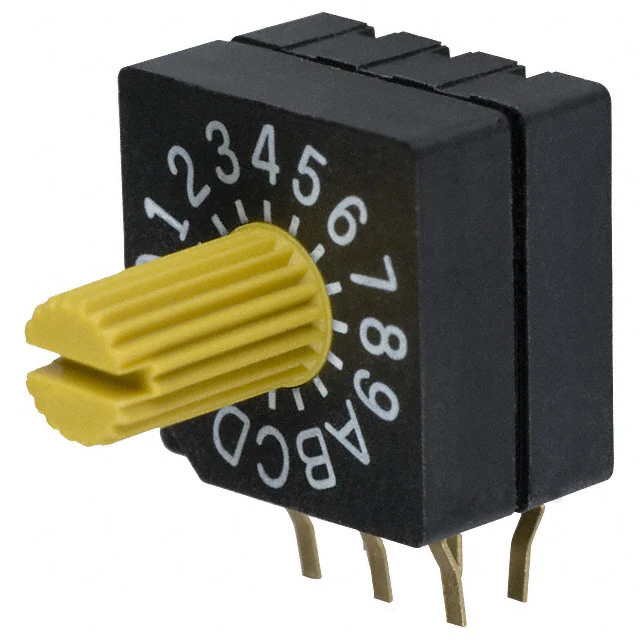

SD-1111SWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
415 |
|
数据手册 |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DRS7116CSW ROTARY DIP HEX COMP 0.03A 15V Nidec Components Corporation |
240 |
|
数据手册 |
DR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
DRS7110CSW ROTARY DIP BCD COMP 0.03A 15V Nidec Components Corporation |
140 |
|
数据手册 |
DR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

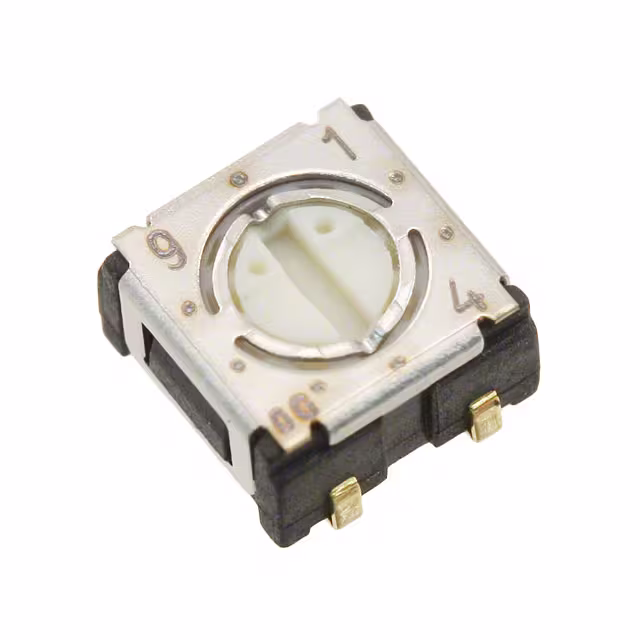

S-4010TASWITCH ROTARY DIP BCD 0.1A 2.4V Nidec Components Corporation |
2,504 |
|
数据手册 |
S-4000 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 2.4VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.102" (2.60mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
DRR7110CSW ROTARY DIP BCD COMP 0.03A 15V Nidec Components Corporation |
201 |
|
数据手册 |
DR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|

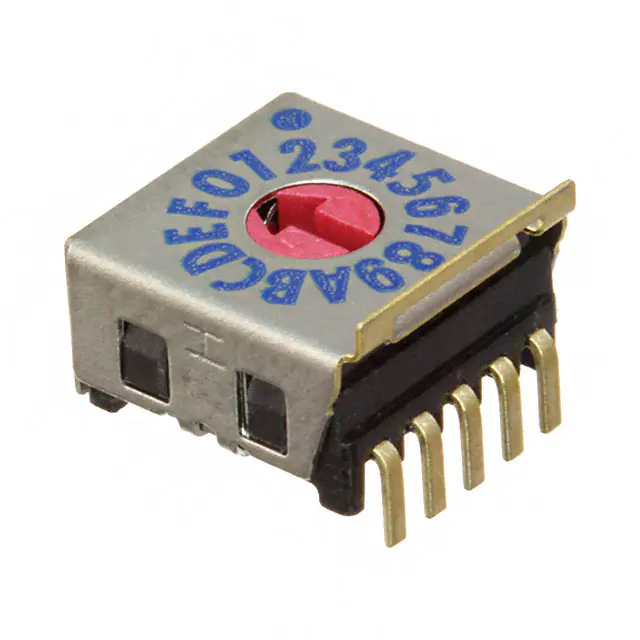

SMRR7116C-1SW ROTARY DIP HEX COMP 0.03A 15V Nidec Components Corporation |
276 |
|
数据手册 |
SMR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
CFS-0800TASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
897 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
CFS-0100MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
437 |
|
数据手册 |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
