DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFS-0800MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
197 |
|
数据手册 |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

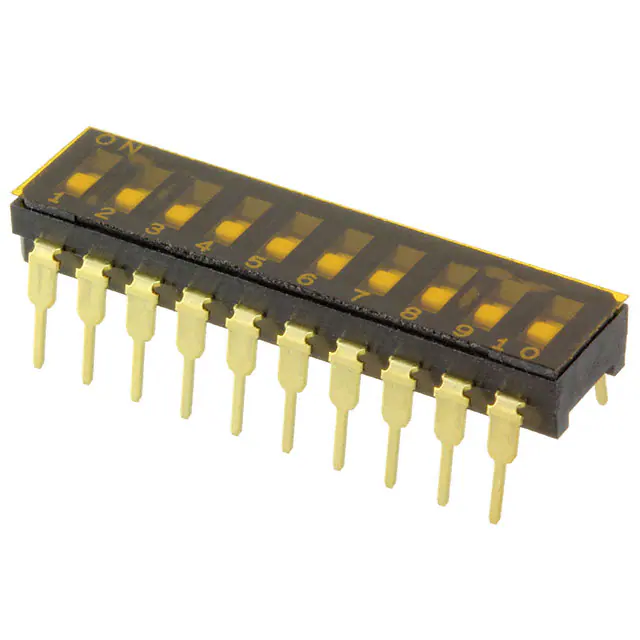

CFS-1000MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
144 |
|
数据手册 |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SMR7010C-1ESWITCH ROTARY DIP BCD 0.03A 15V Nidec Components Corporation |
2,610 |
|
数据手册 |
SMR | Tape & Reel (TR) | Active | BCD | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
SMR8016C-1SWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
145 |
|
数据手册 |
SMR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

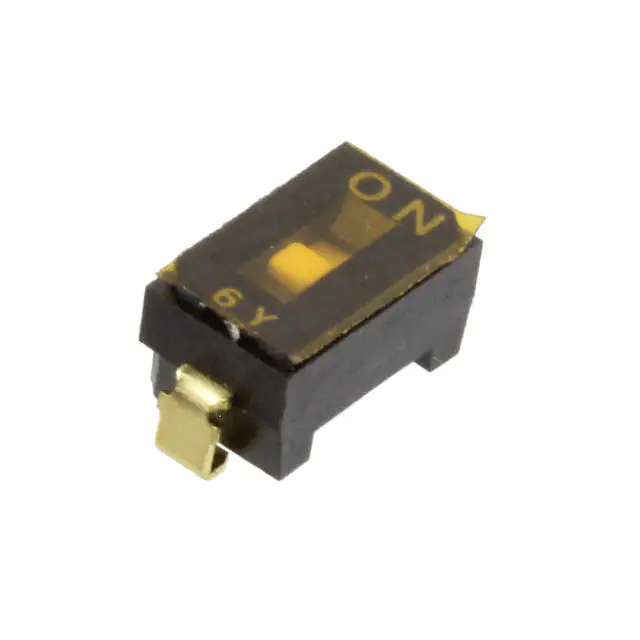

CFS-0100MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
254 |
|
数据手册 |
CFS | Tube | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

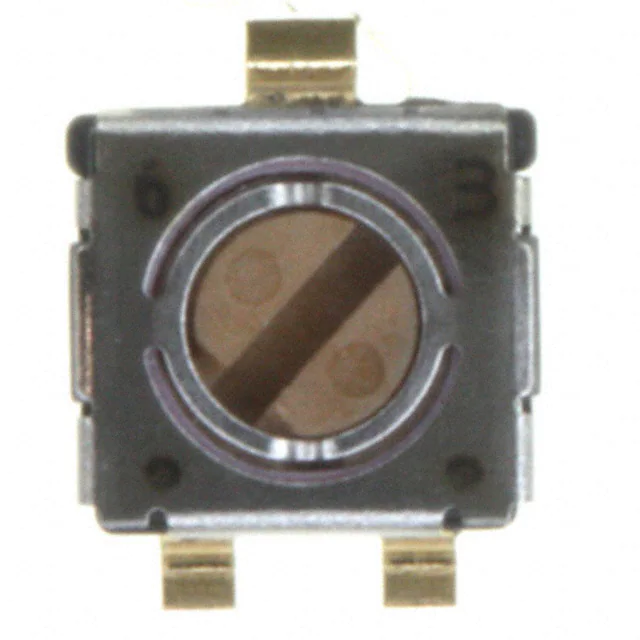

CS-4-12XTBSWITCH ROTARY DIP SPDT 0.1A 16V Nidec Components Corporation |
1,500 |
|
数据手册 |
CS-4 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | - | Yes | - | -25°C ~ 70°C |
|

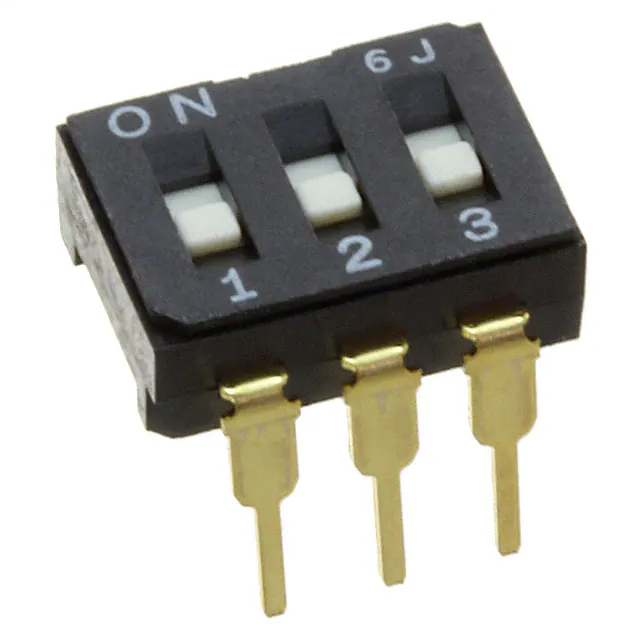

CFS-0301MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
200 |
|
数据手册 |
CFS | Tube | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0401MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
138 |
|
数据手册 |
CFS | Tube | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0502MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
128 |
|
数据手册 |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0600MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
114 |
|
数据手册 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
