DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

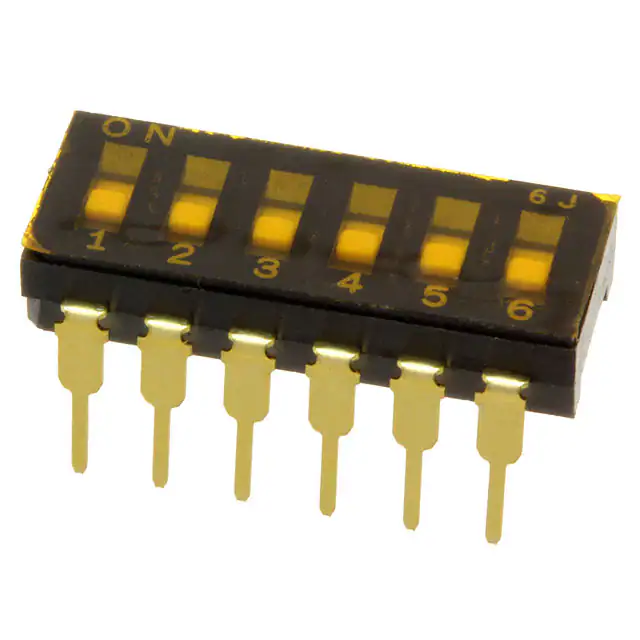

CFS-0600MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
102 |
|
数据手册 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
SH-7040TBSW ROTARY DIP GRAY CODE 0.1A 5V Nidec Components Corporation |
455 |
|
数据手册 |
SH-7000 | Tape & Reel (TR) | Active | Gray Code | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 105°C |
|

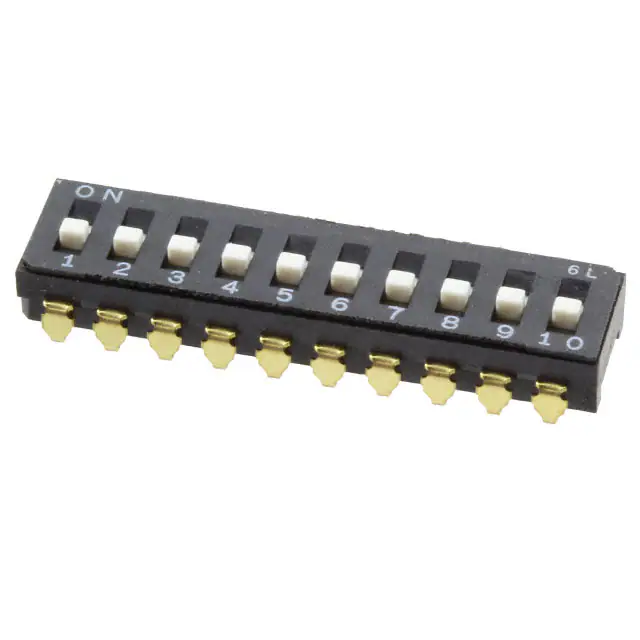

CFS-1002MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
126 |
|
数据手册 |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

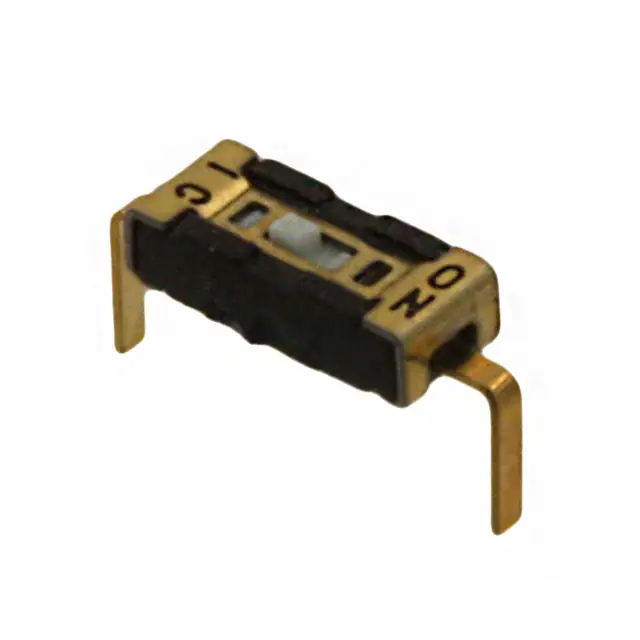

CVS-01CSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
600 |
|
数据手册 |
CVS | Bulk | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.053" (1.35mm) | Through Hole | PC Pin | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
|
SC-2010SWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
302 |
|
数据手册 |
SC | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SC-2010BSWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
165 |
|
数据手册 |
SC-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SD-1030SW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
1,541 |
|
数据手册 |
SD-1000 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

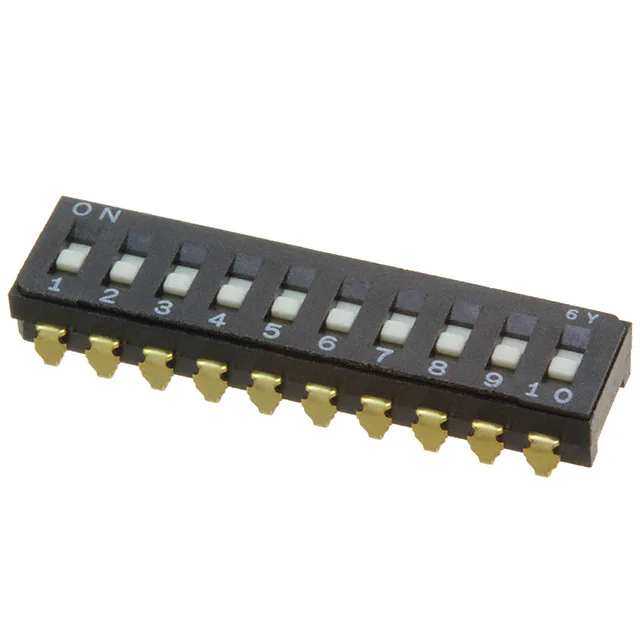

CFS-1001MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
128 |
|
数据手册 |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0600MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
229 |
|
数据手册 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
SMR7110C-1ESW ROTARY DIP BCD COMP 0.03A 15V Nidec Components Corporation |
1,906 |
|
数据手册 |
SMR | Tape & Reel (TR) | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
