DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFS-0500MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
134 |
|
数据手册 |
CFS | Tube | Active | SPST | 5 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

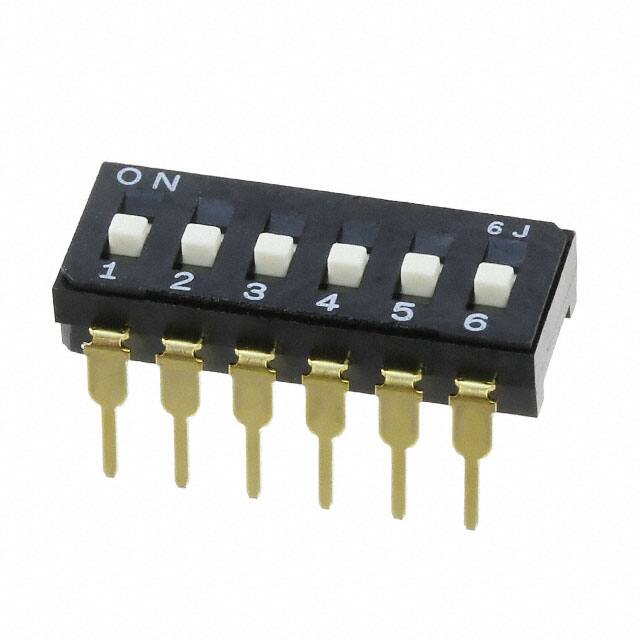

CFS-0602MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
247 |
|
数据手册 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

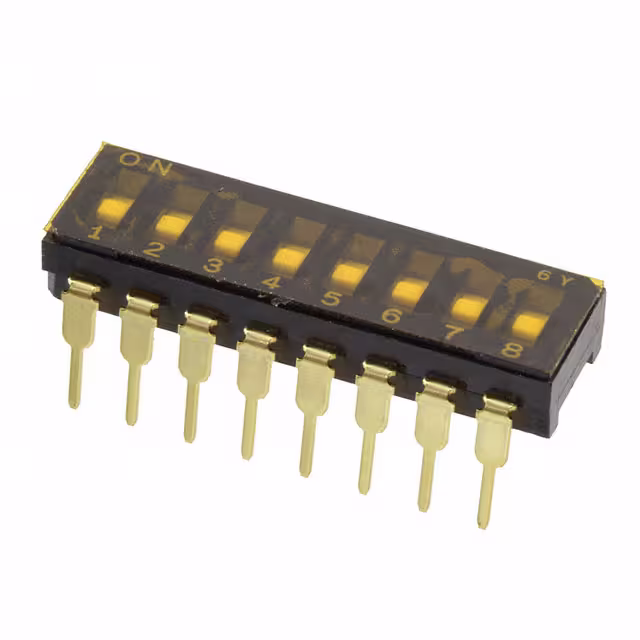

CFS-0800MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
557 |
|
数据手册 |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
S-8031SW ROTARY DIP OCT COMP 0.1A 5V Nidec Components Corporation |
3,110 |
|
数据手册 |
S-8000 | Bulk | Active | Octal Complement | 8 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
CFS-0802MCSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
267 |
|
数据手册 |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

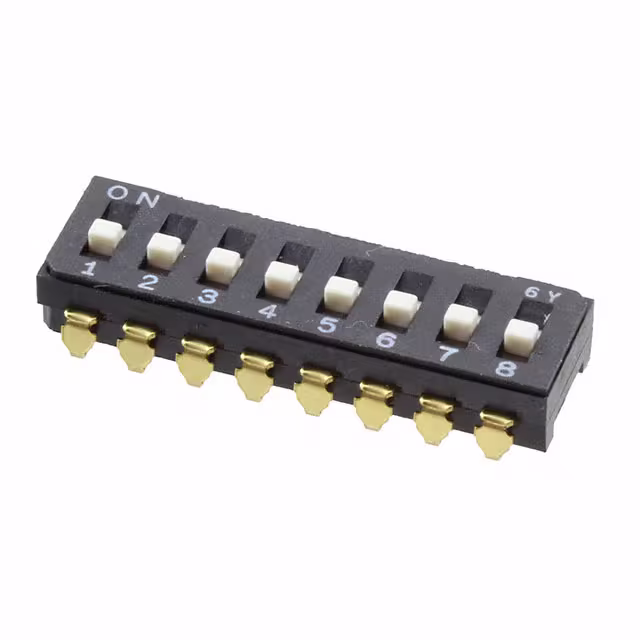

CFS-0802MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
216 |
|
数据手册 |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

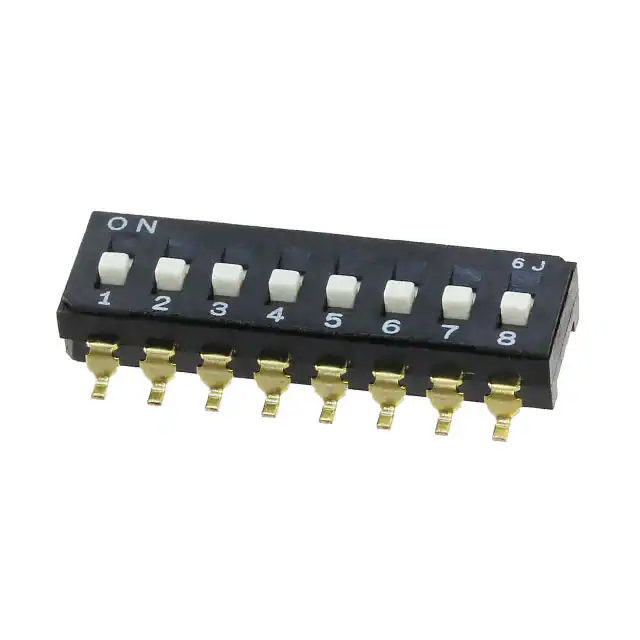

CFS-0802MBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
215 |
|
数据手册 |
CFS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.169" (4.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SH-7030TASW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
17,158 |
|
数据手册 |
SH-7000 | Tape & Reel (TR) | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SH-7070MCSW ROTARY DIP HEX COMP 0.1A 5V Nidec Components Corporation |
1,076 |
|
数据手册 |
SH-7000 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SH-7030MCSW ROTARY DIP BCD COMP 0.1A 5V Nidec Components Corporation |
308 |
|
数据手册 |
SH-7000 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
