DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD-2011SWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
5,049 |
|
数据手册 |
SD-2000 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SD-1110SWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
813 |
|
数据手册 |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DRS7016CSWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
529 |
|
数据手册 |
DR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.161" (4.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
S-8011SWITCH ROTARY DIP OCTAL 0.1A 5V Nidec Components Corporation |
812 |
|
数据手册 |
S-8000 | Bulk | Active | Octal | 8 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.283" (7.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
S-2150SWITCH ROTARY DIP SP4T 0.1A 5V Nidec Components Corporation |
1,322 |
|
数据手册 |
S-2050 | Bulk | Active | SP4T | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
SS-10-23NP-LESWITCH ROTARY DIP DP3T 0.1A 5V Nidec Components Corporation |
1,009 |
|
数据手册 |
SS-10 | Bulk | Active | DP3T | 3 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
S-2151SWITCH ROTARY DIP SP4T 0.1A 5V Nidec Components Corporation |
191 |
|
数据手册 |
S-2050 | Bulk | Active | SP4T | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|

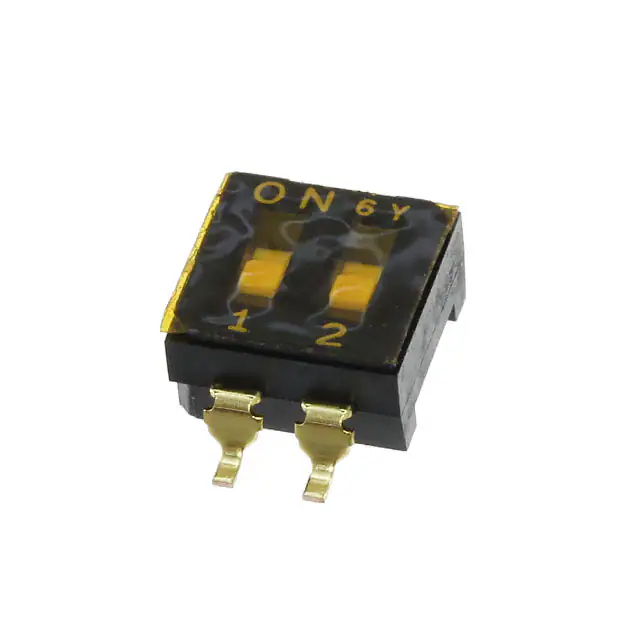

CFS-0200TBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
10,366 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

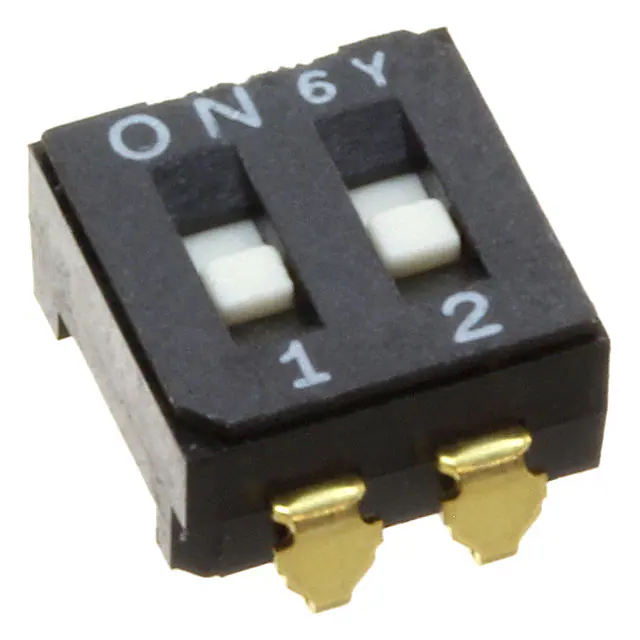

CFS-0201MASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
242 |
|
数据手册 |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

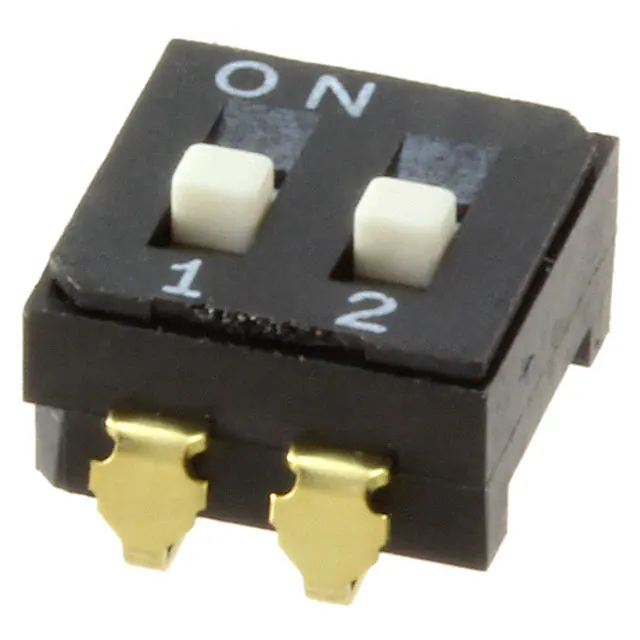

CFS-0202TASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
1,635 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
