DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

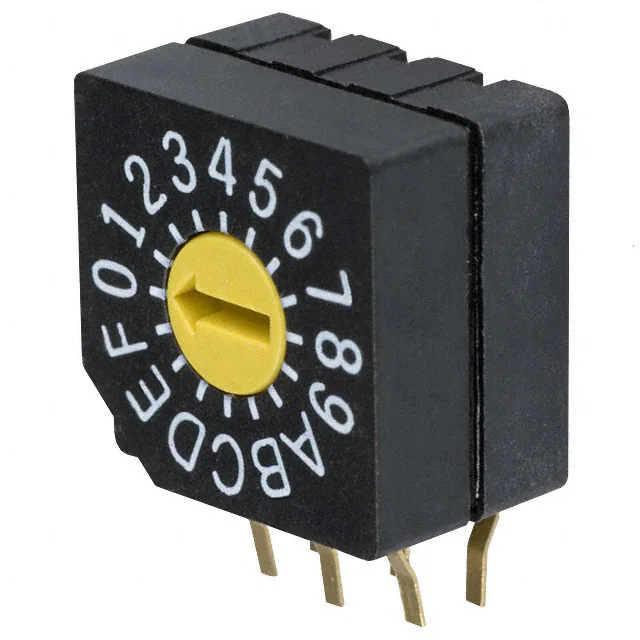

SD-1011SWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
5,905 |
|
数据手册 |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CHS-10TASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
31,763 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
CHS-10TBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
5,690 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
CVS-08TBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
1,598 |
|
数据手册 |
CVS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
SS-10-16NP-LESWITCH ROTARY DIP SP6T 0.1A 5V Nidec Components Corporation |
7,588 |
|
数据手册 |
SS-10 | Bulk | Active | SP6T | 6 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
SS-10-15SP-LESWITCH ROTARY DIP SP5T 0.1A 5V Nidec Components Corporation |
3,521 |
|
数据手册 |
SS-10 | Bulk | Active | SP5T | 5 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
DRR7016CSWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
9,294 |
|
数据手册 |
DR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 85°C |
|
S-8010SWITCH ROTARY DIP OCTAL 0.1A 5V Nidec Components Corporation |
1,742 |
|
数据手册 |
S-8000 | Bulk | Active | Octal | 8 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
S-8030SW ROTARY DIP OCT COMP 0.1A 5V Nidec Components Corporation |
846 |
|
数据手册 |
S-8000 | Bulk | Active | Octal Complement | 8 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
S-2051SWITCH ROTARY DIP SP4T 0.1A 5V Nidec Components Corporation |
1,690 |
|
数据手册 |
S-2050 | Bulk | Active | SP4T | 4 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
