DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S-1010ASWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
2,816 |
|
数据手册 |
S-1000A | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SD-1010SWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
54,356 |
|
数据手册 |
SD-1000 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
S-2011ASWITCH ROTARY DIP BCD 0.1A 5V Nidec Components Corporation |
36,975 |
|
数据手册 |
S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
S-1011ASWITCH ROTARY DIP HEX 0.1A 5V Nidec Components Corporation |
8,327 |
|
数据手册 |
S-1000A | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
CVS-04TBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
10,476 |
|
数据手册 |
CVS | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
CHS-06TASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
2,982 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
SMR7016C-1ESWITCH ROTARY DIP HEX 0.03A 15V Nidec Components Corporation |
3,980 |
|
数据手册 |
SMR | Tape & Reel (TR) | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

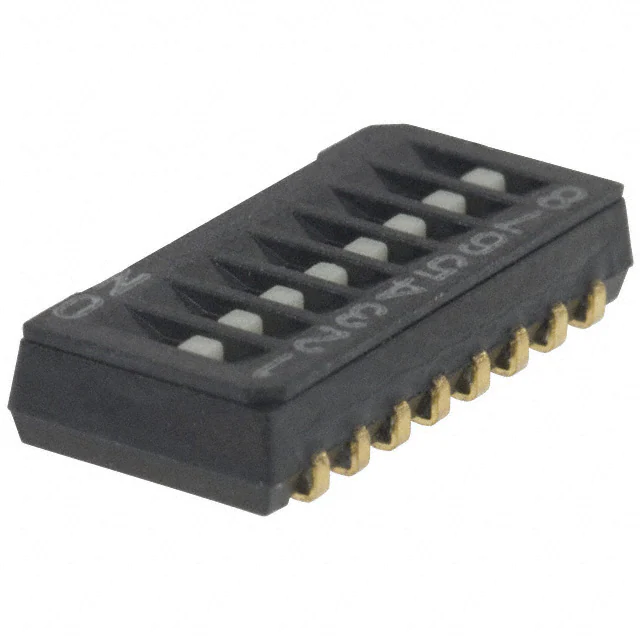

CHS-08TASWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
24,447 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

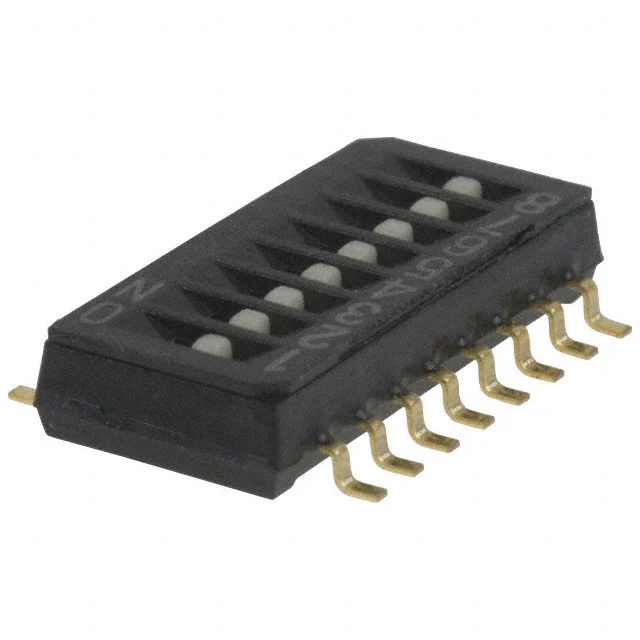

CHS-08TBSWITCH SLIDE DIP SPST 0.1A 6V Nidec Components Corporation |
14,608 |
|
数据手册 |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

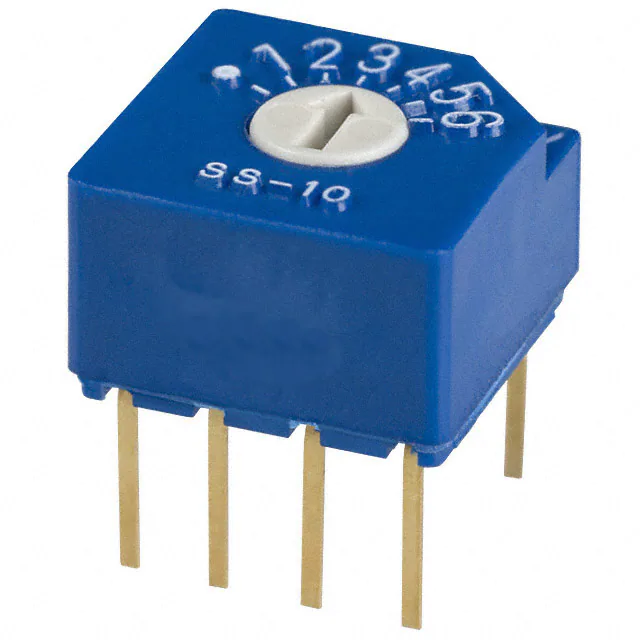

SS-10-16NPESWITCH ROTARY DIP SP6T 0.1A 5V Nidec Components Corporation |
827 |
|
数据手册 |
SS-10 | Bulk | Active | SP6T | 6 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
