钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCNX477M006R0050ECAP TANT POLY 470UF 6.3V 2917 |
5,400 |
|
数据手册 |
TCN | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | Molded | 50mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | X | - | General Purpose |
|
T598B107M006AHS045CAP TANT POLY 100UF 6.3V 1411 |
2,000 |
|
数据手册 |
KO-CAP® T598 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 45mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
|
|
T598B157M006AHE045CAP TANT POLY 150UF 6.3V 1411 |
2,000 |
|
数据手册 |
KO-CAP® T598 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 45mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
|
T52M1337M010C0055CAP TANT POLY 330UF 10V 2924 |
1,000 |
|
数据手册 |

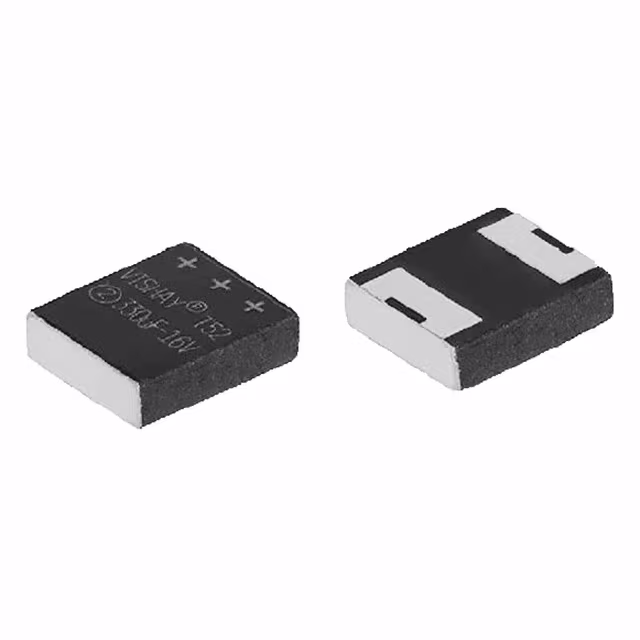

vPolyTan™ T52 | 2924 (7360 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | M1 | - | General Purpose |
|
|
T52M1337M016C0055CAP TANT POLY 330UF 16V 2924 |
911 |
|
数据手册 |
vPolyTan™ T52 | 2924 (7360 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | M1 | - | General Purpose |
|
T520V687M006ATE025CAP TANT SMD POLYMER |
681 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
|
T52M1337M016C0040CAP TANT POLY 330UF 16V 2924 |
840 |
|
数据手册 |
vPolyTan™ T52 | 2924 (7360 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | M1 | - | General Purpose |
|
|
T598D337M006AHE025CAP TANT POLY 330UF 6.3V 2917 |
500 |
|
数据手册 |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
TCJD336M035R0070ECAP TANT POLY 33UF 35V 2917 |
126 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T52M1227M025C0070PRELIMINARY T52227M025M12T0070 |
1,754 |
|
数据手册 |
vPolyTan™ T52 | 2924 (7361 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 25 V | Molded | 70mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.079" (2.00mm) | - | M1 | - | General Purpose |
|
T521D157M020AHE065CAP TANT POLY 150UF 20V 2917 |
500 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 20 V | Molded | 65mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TRME157K020R0035CAP TANT POLY 150UF 20V 2917 |
390 |
|
数据手册 |
TRM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 20 V | Molded | 35mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | AEC-Q200 | Automotive |
|
|
T521V107M016AHE050CAP TANT POLY 100UF 16V 2917 |
999 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T521D157M020AHE050CAP TANT POLY 150UF 20V 2917 |
500 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 20 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJE156M063R0150ECAP TANT POLY 15UF 63V 2917 |
933 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 63 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
|
T598B157M006AHS045CAP TANT POLY 150UF 6.3V 1411 |
2,500 |
|
数据手册 |
KO-CAP® T598 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 45mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
|
|
TCME337M016R0025E330UF (MICRO FARAD)25MOHM @ 100K |
1,069 |
|
数据手册 |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
V.JPG)
|
T520X687M004ATE010CAP TANT POLY 680UF 4V 2917 |
441 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 4 V | Molded | 10mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | X | - | General Purpose |
|
TCME108M004R0010CAP TANT POLY 1000UF 4V 2917 |
400 |
|
数据手册 |
TCM | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 1000 µF | ±20% | 4 V | Molded | 10mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | E | - | General Purpose |
|
T59EE476M035C0055CAP TANT POLY 47UF 35V 2917 |
350 |
|
数据手册 |
vPolyTan™ T59 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | Molded | 55mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | - | EE | - | General Purpose |
