钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T55A226M010C0080CAP TANT POLY 22UF 10V 1206 |
1,729 |
|
数据手册 |
vPolyTan™ T55 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 10 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
T55A686M004C0250CAP TANT POLY 68UF 4V 1206 |
2,000 |
|
数据手册 |
vPolyTan™ T55 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 4 V | Molded | 250mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|

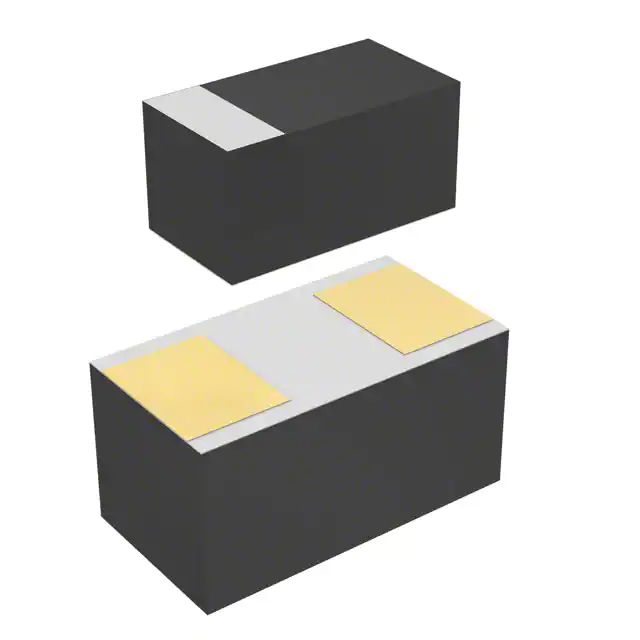

F380J106MMAAH2CAP TANT POLY 10UF 6.3V 0603 |
3,090 |
|
数据手册 |
F38 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.063" L x 0.033" W (1.60mm x 0.85mm) | 0.035" (0.90mm) | - | M | - | General Purpose |
|
|
PTMIA106AT300PTANT 20% 10V 10UF A LSR 300 |
1,990 |
|
数据手册 |
PT | 1206 (3216 Metric) | Cut Tape (CT) | Active | 10 µF | ±20% | 10 V | Molded | 300mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
PTMIA156AT200PTANT 20% 10V 15UF A LSR 200 |
2,000 |
|
数据手册 |
PT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 10 V | Molded | 200mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
PTMOJ476AT200PTANT 20% 6.3V 47UF A LSR 200 |
2,000 |
|
数据手册 |
PT | 1206 (3216 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 4 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
T55B107M2R5C0070CAP TANT POLY 100UF 2.5V 1411 |
2,000 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 2.5 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
T55B106M016C0200CAP TANT POLY 10UF 16V 1411 |
1,978 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 16 V | Molded | 200mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
T598B107M2R5ATE045CAP TANT POLY 100UF 2.5V 1411 |
1,745 |
|
数据手册 |
KO-CAP® T598 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 2.5 V | Molded | 45mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | AEC-Q200 | Automotive |
|
|
T55B226M016C0150CAP TANT POLY 22UF 16V 1411 |
1,300 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 22 µF | ±20% | 16 V | Molded | 150mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|

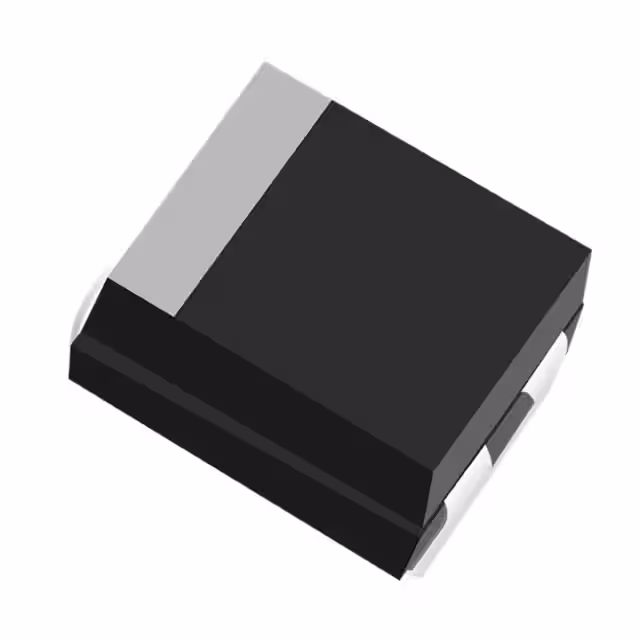

CA55B6R3K107TACAP TANT POLY 100UF 6.3V 1210 |
22,000 |
|
数据手册 |
CA55 B | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 350mOhm | -55°C ~ 125°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.091" (2.30mm) | - | B | - | General Purpose |
|
F380J106MSACAP TANT POLY 10UF 6.3V 0805 |
2,695 |
|
数据手册 |
F38 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 10 µF | ±20% | 6.3 V | Molded | 250mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.035" (0.90mm) | - | S | - | General Purpose |
|
|
T55B156M016C0150CAP TANT POLY 15UF 16V 1411 |
2,000 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 16 V | Molded | 150mOhm @ 100kHz | -55°C ~ 125°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
F381A226MMAAXECAP TANT POLY 22UF 10V 0603 |
1,171 |
|
数据手册 |
F38 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 10 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.063" L x 0.033" W (1.60mm x 0.85mm) | 0.035" (0.90mm) | - | M | - | General Purpose |
|
|
T55B227M004C0060CAP TANT POLY 220UF 4V 1411 |
2,000 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 4 V | Molded | 60mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
PTMIE106AT150PTANT 20% 25V 10UF A LSR 150 |
219 |
|
数据手册 |
PT | 1206 (3216 Metric) | Cut Tape (CT) | Active | 10 µF | ±20% | 25 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
TCJY227M004R0025CAP TANT POLY 220UF 4V 2917 |
4,415 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 220 µF | ±20% | 4 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
T55B157M6R3C0025CAP TANT POLY 150UF 6.3V 1411 |
843 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
TCJY477M002R0025CAP TANT POLY 470UF 2.5V 2917 |
3,716 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 470 µF | ±20% | 2.5 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
12TPC15MCAP TANT POLY 15UF 12.5V 1411 |
915 |
|
数据手册 |
POSCAP™ TPC | 1411 (3528 Metric) | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 12.5 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | B1 | - | General Purpose |
