钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F380J336MMALZTCAP TANT POLY 33UF 6.3V 0603 |
4,301 |
|
数据手册 |
F38 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | 33 µF | ±20% | 6.3 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.063" L x 0.033" W (1.60mm x 0.85mm) | 0.035" (0.90mm) | - | M | - | General Purpose |
|
TCJH157M006R0070ECAP TANT POLY 150UF 6.3V 1210 |
2,500 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.059" (1.50mm) | - | H | - | General Purpose |
|
PTMOJ107BT070PTANT 20% 6.3V 100UF B LSR 70 |
4,000 |
|
数据手册 |
PT | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 4 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
|
PTMIV106BT200PTANT 20% 35V 10UF B LSR 200 |
1,226 |
|
数据手册 |
PT | 1411 (3528 Metric) | Cut Tape (CT) | Active | 10 µF | ±20% | 35 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
F380J226MSACAP TANT POLY 22UF 6.3V 0805 |
25,516 |
|
数据手册 |
F38 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 22 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.035" (0.90mm) | - | S | - | General Purpose |
|
2R5TPE220MUBCAP TANT POLY 220UF 2.5V 1411 |
2,000 |
|
数据手册 |
POSCAP™ TPE | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 2.5 V | Molded | 30mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.079" (2.00mm) | - | B2 | - | - |
|
|
PTMOJ476BT070PTANT 20% 6.3V 150UF B LSR 70 |
2,000 |
|
数据手册 |
PT | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
|
TCJY477M004R0025CAP TANT POLY 470UF 4V 2917 |
3,335 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Obsolete | 470 µF | ±20% | 4 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|

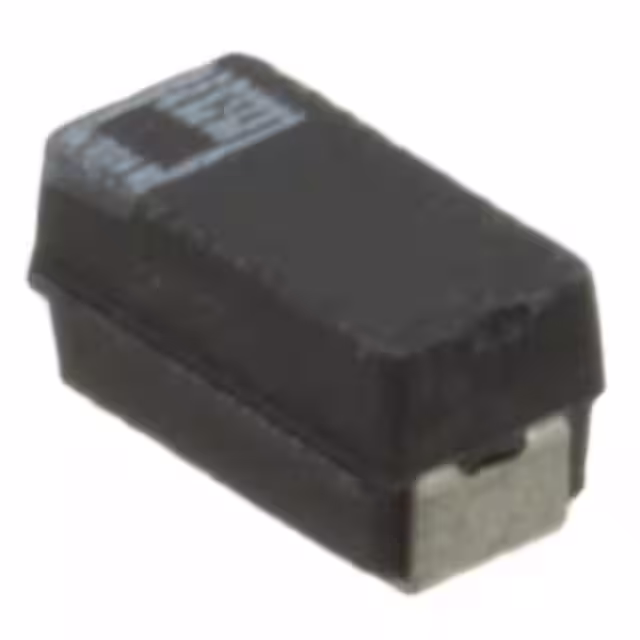

T55T107M6R3C0200CAP TANT POLY 100UF 6.3V 1411 |
3,000 |
|
数据手册 |
vPolyTan™ T55 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | - | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
|
TCJY157M004R0025CAP TANT POLY 150UF 4V 2917 |
3,527 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | 150 µF | ±20% | 4 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
PTMOJ157BT070PTANT 20% 6.3V 150UF B LSR 70 |
2,000 |
|
数据手册 |
PT | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 4 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
|
PTMOJ107AT100PTANT 20% 6.3V 100UF A LSR 100 |
1,947 |
|
数据手册 |
PT | 1206 (3216 Metric) | Cut Tape (CT) | Active | 100 µF | ±20% | 6.3 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) | - | A | - | General Purpose |
|
|
F381X105MSACAP TANT POLY 1UF 38V 0805 |
7,988 |
|
数据手册 |
F38 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | 1 µF | ±20% | 38 V | Molded | 500mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.035" (0.90mm) | - | S | - | General Purpose |
|
|
PTMOJ157BT045PTANT 20% 6.3V 150UF B LSR 45 |
2,000 |
|
数据手册 |
PT | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 6.3 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
|
PTMOJ686BT070PTANT 20% 6.3V 68UF B LSR 70 |
2,000 |
|
数据手册 |
PT | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 4 V | Molded | 70mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
|
PTMIE156BT100PTANT 20% 25V 15UF B LSR 100 |
1,990 |
|
数据手册 |
PT | 1411 (3528 Metric) | Cut Tape (CT) | Active | 15 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
|
TCJB227M004R0035ECAP TANT POLY 220UF 4V 1210 |
432 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 4 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
PTMIE226BT100PTANT 20% 25V 22UF B LSR 100 |
1,975 |
|
数据手册 |
PT | 1411 (3528 Metric) | Cut Tape (CT) | Active | 22 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | - | - | General Purpose |
|
T58A0107M6R3C0150CAP TANT POLY 100UF 6.3V 1206 |
1,168 |
|
数据手册 |
vPolyTan™ T58 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | 100 µF | ±20% | 6.3 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | - | A0 | - | General Purpose |
|
F380J475MUACAP TANT POLY 4.7UF 6.3V 0402 |
221,056 |
|
数据手册 |
F38 | 0402 (1106 Metric) | Tape & Reel (TR) | Obsolete | 4.7 µF | ±20% | 6.3 V | Molded | 1.5Ohm @ 100kHz | -55°C ~ 105°C | 1000 Hrs @ 85°C | Surface Mount | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.024" (0.60mm) | - | U | - | General Purpose |
