钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCJD107M010R0080ECAP TANT POLY 100UF 10V 2917 |
500 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
T523W566M035APE070CAP TANT POLY HI-ENERGY 56UF 35V |
1,640 |
|
数据手册 |
KO-CAP® T523 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 56 µF | ±20% | 35 V | Molded | 70mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | W | - | General Purpose |
|
|
T598D687M2R5ATE009CAP TANT SMD POLYM 680UF 2.5V |
488 |
|
数据手册 |
T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 9mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
V.JPG)
|
T520V227M2R5ATE012CAP TANT POLY 220UF 2.5V 2917 |
1,000 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 2.5 V | Molded | 12mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | V | - | General Purpose |
|
|
T521V107M016ATK050CAP TANT POLY HV 100UF 16V |
1,000 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
T591V227M006ATE045CAP TANT POLY 220UF 6.3V 2917 |
1,000 |
|
数据手册 |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 45mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T591D476M025ATE060CAP TANT SMD AUTO |
941 |
|
数据手册 |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T55D157M016C0015T55D157M016C0015 |
500 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 150 µF | ±20% | 16 V | Molded | 15mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T591V227M006ATE025CAP TANT POLY 220UF 6.3V 2917 |
1,000 |
|
数据手册 |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
TCQD336M025R0060ETCQ SERIES - D-CASE / 025V / 006 |
500 |
|
数据手册 |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | Molded | 60mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCOD336M025R0100ETCO SERIES - D-CASE / 025V / 010 |
500 |
|
数据手册 |
TCO | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | Molded | 100mOhm @ 100kHz | -55°C ~ 150°C | 1000 Hrs @ 150°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
T598V227M2R5ATE009CAP TANT POLY AUTO 220UF 2.5V |
1,000 |
|
数据手册 |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 2.5 V | Molded | 9mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | AEC-Q200 | Automotive |
.jpg)
|
TCQD227M006R0025ECAP TANT POLY 220UF 6.3V 2917 |
180 |
|
数据手册 |
TCQ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 125°C | 1000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
T598D687M2R5ATE006680.UF 2.5V |
1,000 |
|
数据手册 |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 2.5 V | Molded | 6mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | AEC-Q200 | Automotive |
|
|
TCJY686M020R0050ECAP TANT POLY 68UF 20V 2917 |
2,407 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 20 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
TCJD475M075R0150CAP TANT POLY 4.7UF 75V 2917 |
220 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 75 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|

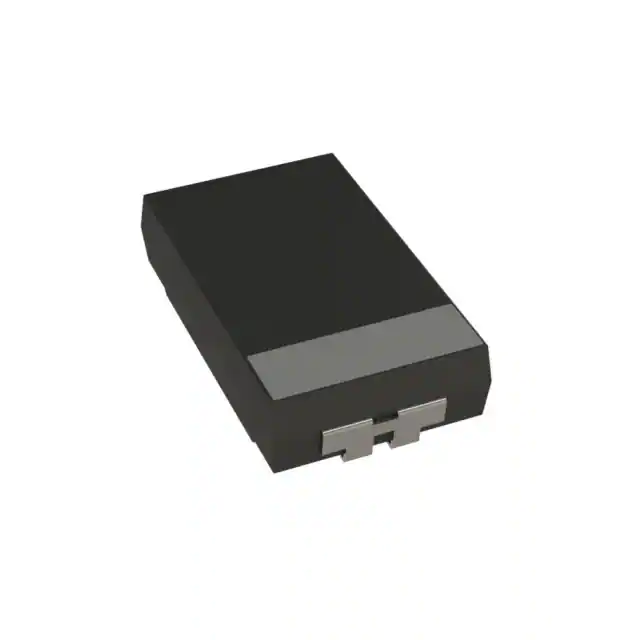

TCNZ476M035R0150ECAP TANT POLY 47UF 35V 2917 |
1,100 |
|
数据手册 |
TCN | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 35 V | Molded | 150mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | Z | - | General Purpose |
|
|
T521V107M016ATI050CAP TANT POLY HV 100UF 16V |
997 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
W.JPG)
|
T520W686M010ATE025CAP TANT POLY 68UF 10V 2917 |
975 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | W | - | General Purpose |
|
|
TCJD336M035R0100CAP TANT POLY 33UF 35V 2917 |
780 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 35 V | Molded | 100mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
