钽 - 聚合物电容器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 类型 | ESR（等效串联电阻） | 工作温度 | 寿命 @ 温度 | 安装类型 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 引线间距 | 制造商尺寸代码 | 额定值 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

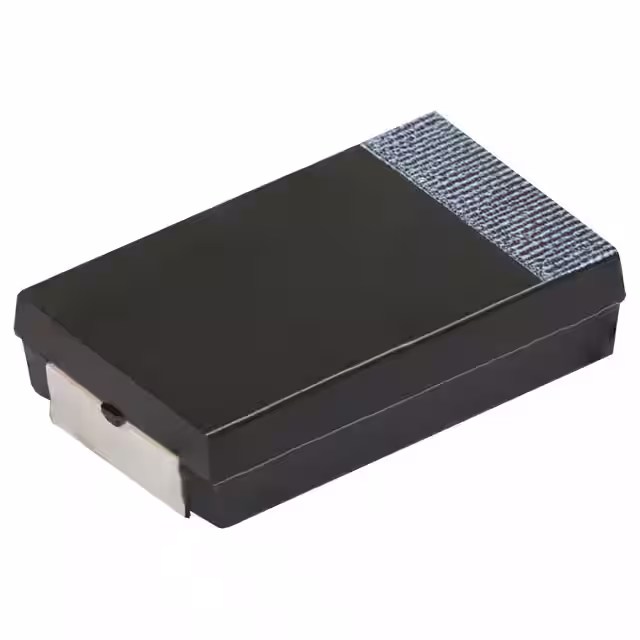

T55V227M2R5C0015CAP TANT POLY 220UF 2.5V 2917 |
775 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 2.5 V | Molded | 15mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
TCJT476M006R0080CAP TANT POLY 47UF 6.3V 1210 |
4,895 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | Molded | 80mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
T520D107M010AHE018CAP TANT SMD POLYMER |
395 |
|
数据手册 |
KO-CAP® T520 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | Molded | 18mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T55D227M010C0040T55D227M010C0040 |
330 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 10 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
TCNT336M016R0200ECAP TANT POLY 33UF 16V 1411 |
12,700 |
|
数据手册 |
TCN | 1411 (3528 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 16 V | Molded | 200mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
|
TCJD686M020R0055CAP TANT POLY 68UF 20V 2917 |
885 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 20 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJT476M006R0055CAP TANT POLY 47UF 6.3V 1210 |
6,566 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.047" (1.20mm) | - | T | - | General Purpose |
|
|
TCJB227M004R0045CAP TANT POLY 220UF 4V 1210 |
2,380 |
|
数据手册 |
TCJ | 1210 (3528 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 4 V | Molded | 45mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.083" (2.10mm) | - | B | - | General Purpose |
|
|
TCJY686M016R0050CAP TANT POLY 68UF 16V 2917 |
3,758 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 68 µF | ±20% | 16 V | Molded | 50mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
TCJY107M010R0025ECAP TANT POLY 100UF 10V 2917 |
800 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 10 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
|
|
T55D337M010C0040T55D337M010C0040 |
333 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 40mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T591D337M2R5ATE009CAP TANT POLY 330UF 2.5V 2917 |
500 |
|
数据手册 |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 2.5 V | Molded | 9mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T521V107M016ATE090100.UF 16.0V |
998 |
|
数据手册 |
KO-CAP® T521 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 100 µF | ±20% | 16 V | Molded | 90mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T55D337M010C0035T55D337M010C0035 |
435 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | Molded | 35mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T55V336M025C0040T55V336M025C0040 |
715 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 33 µF | ±20% | 25 V | Molded | 40mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | V | - | General Purpose |
|
|
T591D337M2R5ATE012CAP TANT POLY 330UF 2.5V 2917 |
490 |
|
数据手册 |
KO-CAP® T591 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 2.5 V | Molded | 12mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
T598D337M2R5ATE012CAP TANT POLY 330UF 2.5V 2917 |
500 |
|
数据手册 |
KO-CAP® T598 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 2.5 V | Molded | 12mOhm @ 100kHz | -55°C ~ 125°C | 2000 Hrs @ 125°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | Automotive |
|
|
T520U227M2R5ATE055CAP TANT SMD POLYMER |
1,650 |
|
数据手册 |
KO-CAP® T520 | 2312 (6032 Metric) | Tape & Reel (TR) | Active | 220 µF | ±20% | 2.5 V | Molded | 55mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.236" L x 0.126" W (6.00mm x 3.20mm) | 0.059" (1.50mm) | - | U | - | General Purpose |
|
|
T55D687M6R3C0025T55D687M6R3C0025 |
169 |
|
数据手册 |
vPolyTan™ T55 | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 680 µF | ±20% | 6.3 V | Molded | 25mOhm @ 100kHz | -55°C ~ 105°C | 2000 Hrs @ 105°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | - | D | - | General Purpose |
|
|
TCJY337M006R0015ECAP TANT POLY 330UF 6.3V 2917 |
2,000 |
|
数据手册 |
TCJ | 2917 (7343 Metric) | Tape & Reel (TR) | Active | 330 µF | ±20% | 6.3 V | Molded | 15mOhm @ 100kHz | -55°C ~ 85°C | 2000 Hrs @ 85°C | Surface Mount | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | - | Y | - | General Purpose |
