干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1-05-BMRELAY REED 1 N/C 1.5KV 5V Sensata Technologies, Inc. |
4,526 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-12-BDMRELAY REED 1 N/C 1.5KV 12V Sensata Technologies, Inc. |
1,346 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
DAR70505-HRRELAY REED 5KV 5V SPST-NO Sensata Technologies, Inc. |
1,515 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DAR72405-HRRELAY REED 5KV 24V SPST-NO Sensata Technologies, Inc. |
2,787 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

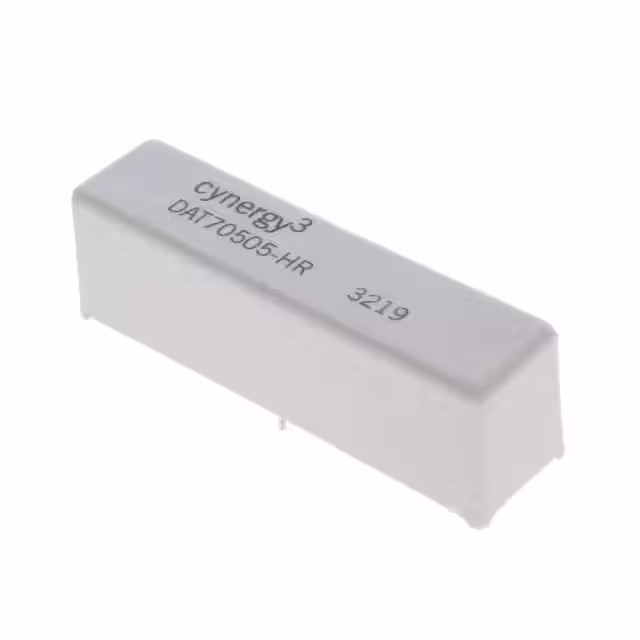

DAT70505-HRRELAY REED 5KV 5V SPST-NO Sensata Technologies, Inc. |
1,182 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
D1-24-CMRELAY REED C/O 24V Sensata Technologies, Inc. |
1,786 |
|
数据手册 |
D1 | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 26.7 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 65°C | Tungsten (W) |
|
|
D1-05-CMRELAY REED C/O 5V Sensata Technologies, Inc. |
3,165 |
|
数据手册 |
D1 | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 100 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 65°C | Tungsten (W) |
|
|
D1-12-CMRELAY REED C/O 12V Sensata Technologies, Inc. |
4,387 |
|
数据手册 |
D1 | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 240VDC - Max | 35.3 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | - | - | -40°C ~ 65°C | Tungsten (W) |
|
|
DAT70575-HRRELAY REED 7.5KV 5V SPST-NO Sensata Technologies, Inc. |
4,576 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72405FURELAY REED SPST-NO 5KV 24V Sensata Technologies, Inc. |
3,892 |
|
数据手册 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin, Wire Leads | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
