干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

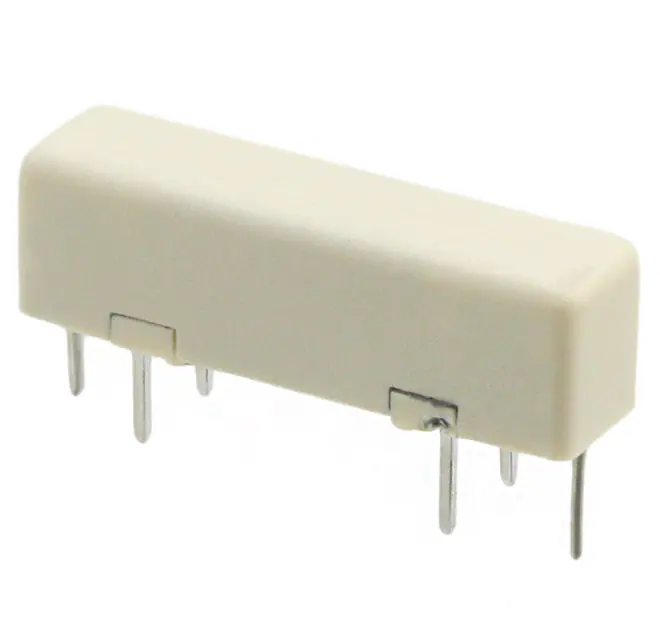

SAR92403RELAY REED SPST 500MA 24V Sensata Technologies, Inc. |
298 |
|
数据手册 |
S | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 20 VDC | 2 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR71205-HRRELAY REED 5KV 12V SPST-NO Sensata Technologies, Inc. |
1,591 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
SAR91205RELAY REED SPST 500MA 12V Sensata Technologies, Inc. |
2,195 |
|
数据手册 |
S | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DBR71205-HRRELAY REED 5KV 12V SPST-NC Sensata Technologies, Inc. |
578 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAR72410RELAY REED SPST-NO 3A 24V Sensata Technologies, Inc. |
1,484 |
|
数据手册 |
DA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

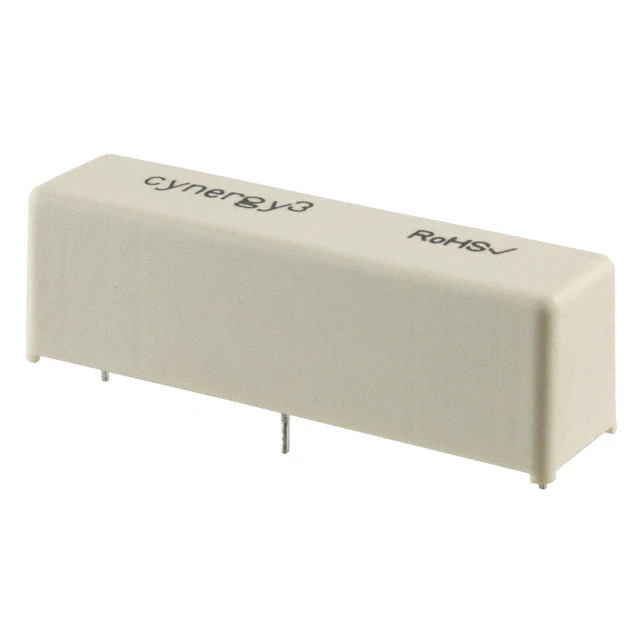

DAR71210RELAY REED SPST-NO 3A 12V Sensata Technologies, Inc. |
849 |
|
数据手册 |
DA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAT71210RELAY REED SPST-NO 2A 12V Sensata Technologies, Inc. |
702 |
|
数据手册 |
DA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT72410RELAY REED SPST-NO 2A 24V Sensata Technologies, Inc. |
386 |
|
数据手册 |
DA | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70510RELAY REED SPST-NO 2A 5V Sensata Technologies, Inc. |
271 |
|
数据手册 |
DA | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
|
DAT70510URELAY REED SPST-NO 2A 5V Sensata Technologies, Inc. |
4,414 |
|
数据手册 |
DA | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
