干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT72410-HRRELAY REED SPST-NO 2A 24V Sensata Technologies, Inc. |
3,189 |
|
数据手册 |
D-HR | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAT70510FRELAY REED SPST-NO 2A 5V Sensata Technologies, Inc. |
3,027 |
|
数据手册 |
DA | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 7000VAC, 7000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
S2-12PRELAY REED SPST 700MA 12V Sensata Technologies, Inc. |
4,614 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S8-1204URELAY REED SPST 1A 12V UL Sensata Technologies, Inc. |
2,699 |
|
数据手册 |
S8 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 16 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-05ERELAY REED SPST 1A 5V Sensata Technologies, Inc. |
1,905 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-1204MRELAY REED 4KV SPST 12V SIP SCRE Sensata Technologies, Inc. |
4,429 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | EMI Shielded | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-24-2ADRELAY REED TWIN N/O 1.5KV 24V Sensata Technologies, Inc. |
1,845 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
SAR90503RELAY REED SPST 500MA 5V Sensata Technologies, Inc. |
3,432 |
|
数据手册 |
S | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 20VAC, 20VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.7 VDC | 0.5 VDC | 1 ms | 0.5 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
|
DBR72405URELAY REED N/C 5KV 24V Sensata Technologies, Inc. |
4,339 |
|
数据手册 |
DB | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|

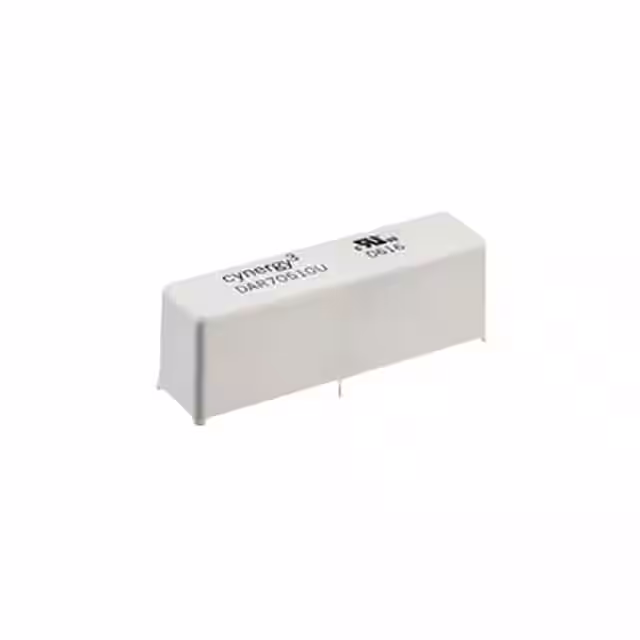

DAR72410URELAY REED SPST-NO 3A 24V Sensata Technologies, Inc. |
2,872 |
|
数据手册 |
DA | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
