干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAT200-24RELAY REED SPST-NO 3A 24V Sensata Technologies, Inc. |
3,065 |
|
数据手册 |
D200 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 3 A | 2500VAC, 2500VDC - Max | 31 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 6 ms | 1 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBR72410PRELAY REED SPST-NC 3A 24V Sensata Technologies, Inc. |
2,353 |
|
数据手册 |
DB | Tray | Active | Chassis Mount | 24VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Rhodium (Rh) |
|
DAT71215-HRRELAY REED SPST-NO 2A 12V Sensata Technologies, Inc. |
1,638 |
|
数据手册 |
D-HR | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 10000VAC, 10000VDC - Max | 126 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
S2-03PURELAY REED SPST 250MA 3V UL Sensata Technologies, Inc. |
1,309 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 250 mA | 140VAC, 200VDC - Max | 12 mA | Non Latching | - | Axial | - | 2.25 VDC | 0.5 VDC | 0.1 ms | 0.07 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-24ERELAY REED SPST 1A 24V Sensata Technologies, Inc. |
4,379 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-1204RELAY REED 4KV SPST 12V SIP Sensata Technologies, Inc. |
2,317 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-05EURELAY REED SPST 1A 5V UL Sensata Technologies, Inc. |
3,930 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 31.3 mA | Non Latching | - | Axial | - | 3.7 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-05-2ARELAY REED TWIN N/O 1.5KV 5V Sensata Technologies, Inc. |
3,242 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-24-2ADMRELAY REED TWIN N/O 1.5KV 24V Sensata Technologies, Inc. |
3,187 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|

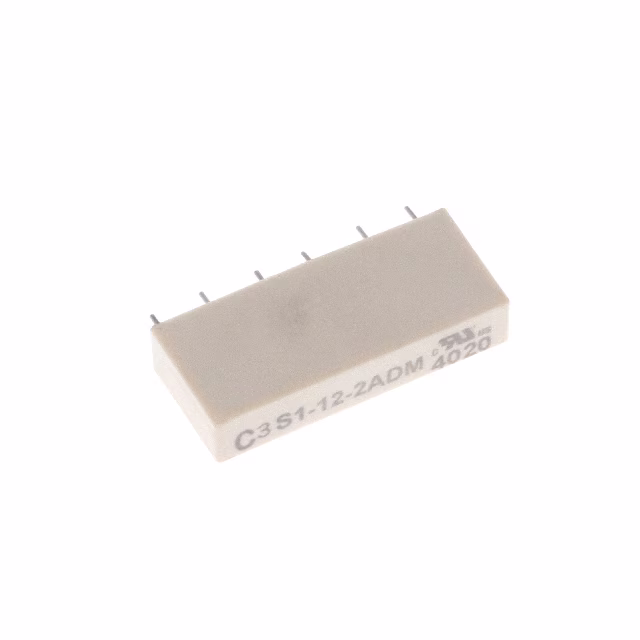

S1-12-2ADMRELAY REED TWIN N/O 1.5KV 12V Sensata Technologies, Inc. |
3,981 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
