固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1103-1R0-RFIXED IND 1UH 15A 6 MOHM SMD Eaton - Electronics Division |
361 |
|
数据手册 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 15 A | 21A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|
HCM1A1307V2-1R0-RFIXED IND 1UH 28A 1.75 MOHM SMD Eaton - Electronics Division |
354 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 28 A | 34A | Shielded | 1.75mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
HCM1A1307V2-6R8-RFIXED IND 6.8UH 10A 11.5MOHM SMD Eaton - Electronics Division |
347 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 10 A | 15A | Shielded | 11.5mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
FPV1006-85-RFIXED IND 85NH 25A 0.41 MOHM SMD Eaton - Electronics Division |
263 |
|
数据手册 |
FPV1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 nH | ±10% | 25 A | 81A | Shielded | 0.41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.382" L x 0.331" W (9.70mm x 8.40mm) | 0.252" (6.40mm) |
|
UP0.4C-220-RFIXED IND 22UH 760MA 360MOHM SMD Eaton - Electronics Division |
2,763 |
|
数据手册 |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 760 mA | 770mA | Unshielded | 360mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
UP2B-331-RFIXED IND 330UH 676MA 878.3 MOHM Eaton - Electronics Division |
695 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 676 mA | 510mA | Unshielded | 878.3mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
DRA73-150-RFIXED IND 15UH 1.74A 94 MOHM SMD Eaton - Electronics Division |
1,005 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 1.74 A | 2A | Shielded | 94mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
FP1308R1-R11-RFIXED IND 110NH 57A 0.32MOHM SMD Eaton - Electronics Division |
790 |
|
数据手册 |
FLAT-PAC, FP1308R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 110 nH | ±10% | 57 A | 120A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.500" W (13.40mm x 12.70mm) | 0.315" (8.00mm) |
|
|
DRA73-102-RFIXED IND 1MH 235MA 5.15 OHM SMD Eaton - Electronics Division |
172 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 235 mA | 239mA | Shielded | 5.15Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

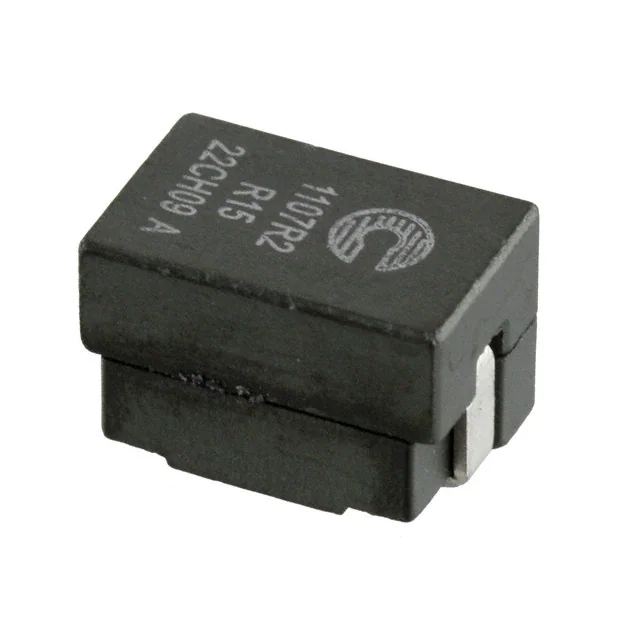

FP1107R2-R15-RFIXED IND 150NH 42A 0.47MOHM SMD Eaton - Electronics Division |
1,721 |
|
数据手册 |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 42 A | 70A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.283" (7.20mm) |
