固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

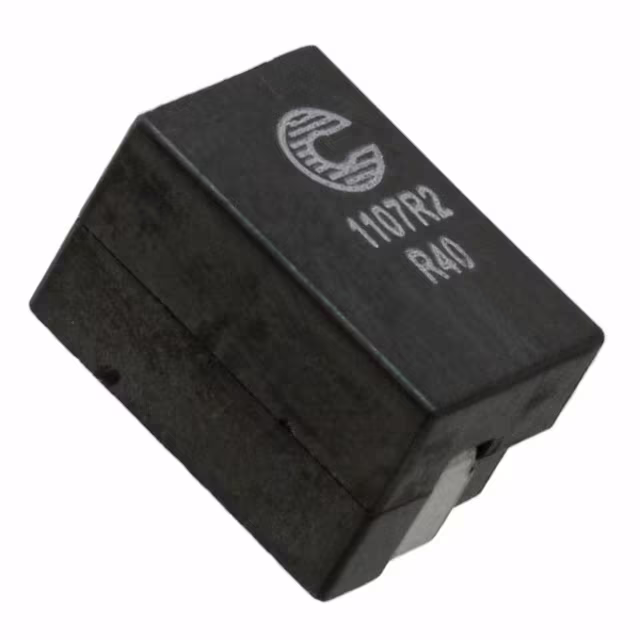

FP1107R2-R40-RFIXED IND 400NH 42A 0.47MOHM SMD Eaton - Electronics Division |
1,167 |
|
数据手册 |
FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 400 nH | ±10% | 42 A | 25A | Unshielded | 0.47mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.283" (7.20mm) |
|
SD12-2R2-RFIXED IND 2.2UH 1.83A 74.7 MOHM Eaton - Electronics Division |
2,854 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.83 A | 1.8A | Shielded | 74.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.20mm) |
|
FP1007R3-R27-RFIXED IND 270NH 61A 0.29MOHM SMD Eaton - Electronics Division |
830 |
|
数据手册 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±10% | 61 A | 40A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
FPT1006-580-RFIXED IND 580NH 19A 1 MOHM SMD Eaton - Electronics Division |
511 |
|
数据手册 |
FPT1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 580 nH | ±10% | 19 A | 23A | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.380" L x 0.335" W (9.65mm x 8.50mm) | 0.252" (6.40mm) |
|
HCM1104-R90-RFIXED IND 900NH 22A 2.5 MOHM SMD Eaton - Electronics Division |
186 |
|
数据手册 |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 900 nH | ±20% | 22 A | 28A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
SD25-221-RFIXED IND 220UH 446MA 1.34OHM SM Eaton - Electronics Division |
2,325 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 446 mA | 268mA | Shielded | 1.34Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
FP1007R1-R12-RFIXED IND 120NH 60A 0.29MOHM SMD Eaton - Electronics Division |
2,050 |
|
数据手册 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 60 A | 81A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
HCM1103-3R3-RFIXED IND 3.3UH 9A 16 MOHM SMD Eaton - Electronics Division |
146 |
|
数据手册 |
HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 9 A | 14A | Shielded | 16mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|
FP1308-R44-RFIXED IND 440NH 68A 0.24MOHM SMD Eaton - Electronics Division |
398 |
|
数据手册 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 440 nH | ±10% | 68 A | 32A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | 0.315" (8.00mm) |
|
FP2-D120-RFIXED IND 120NH 37A 0.26MOHM SMD Eaton - Electronics Division |
1,659 |
|
数据手册 |
FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±15% | 37 A | 18A | Unshielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
