固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1208R1-R15-RFIXED IND 150NH 50A 0.29MOHM SMD Eaton - Electronics Division |
198 |
|
数据手册 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 50 A | 85A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|

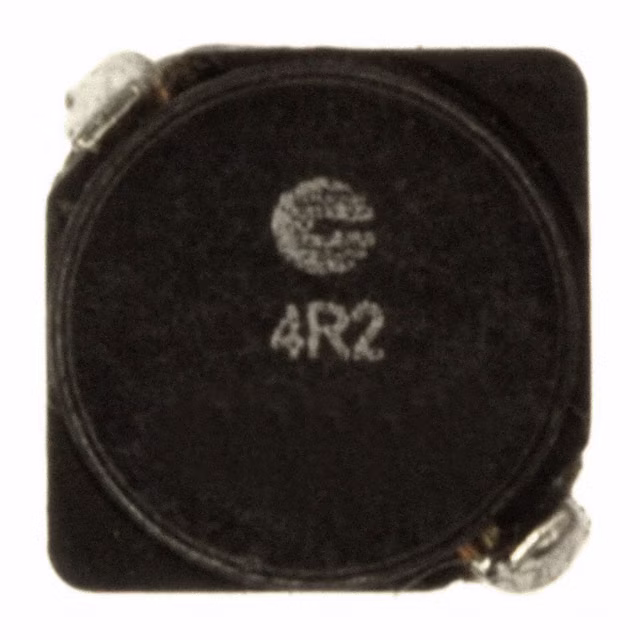

SD6030-4R2-RFIXED IND 4.1UH 3.11A 31MOHM SMD Eaton - Electronics Division |
1,980 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.1 µH | ±30% | 3.11 A | 2.2A | Shielded | 31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
FP0705R3-R10-RFIXED IND 105NH 32A 0.46MOHM SMD Eaton - Electronics Division |
1,775 |
|
数据手册 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 105 nH | ±10% | 32 A | 44A | Unshielded | 0.46mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
FP1007R3-R23-RFIXED IND 230NH 61A 0.29MOHM SMD Eaton - Electronics Division |
1,575 |
|
数据手册 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 230 nH | ±10% | 61 A | 48A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|

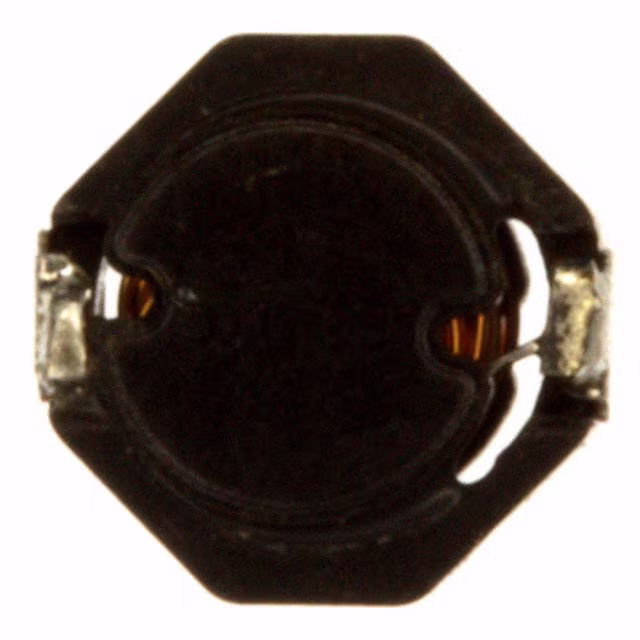

SD53-680-RFIXED IND 68UH 520MA 525MOHM SMD Eaton - Electronics Division |
2,340 |
|
数据手册 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 520 mA | 580mA | Shielded | 525mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|

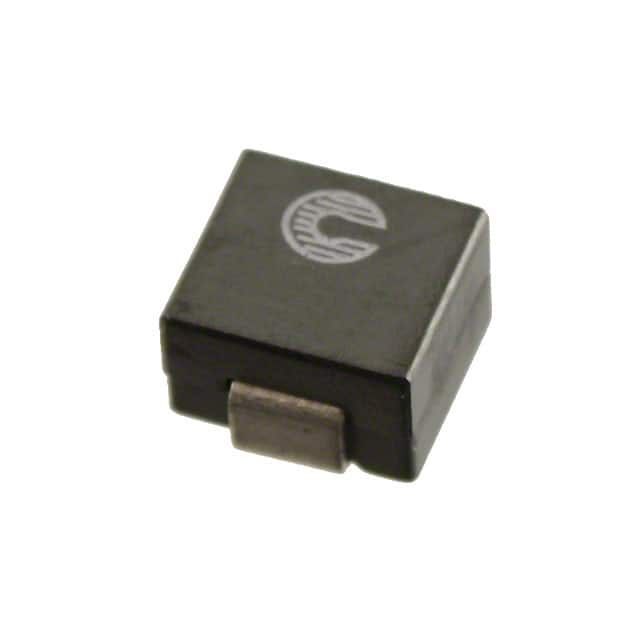

FP0805R1-R20-RFIXED IND 200NH 65A 0.17MOHM SMD Eaton - Electronics Division |
1,703 |
|
数据手册 |
FLAT-PAC, FP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±10% | 65 A | 20A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.300" L x 0.295" W (7.62mm x 7.49mm) | 0.195" (4.96mm) |
|
MPIA4015V2-1R0-RFIXED IND 1UH 5.5A 27 MOHM SMD Eaton - Electronics Division |
2,758 |
|
数据手册 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 5.5 A | 6A | Shielded | 27mOhm Max | - | 56MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.059" (1.50mm) |
|
SD6030-3R3-RFIXED IND 3.3UH 3.54A 24MOHM SMD Eaton - Electronics Division |
4,382 |
|
数据手册 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 3.54 A | 2.4A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
MPIA4020V2-2R2-RFIXED IND 2.2UH 3.8A 48 MOHM SMD Eaton - Electronics Division |
8,726 |
|
数据手册 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 3.8 A | 5.5A | Shielded | 48mOhm Max | - | 33MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
UP1B-331-RFIXED IND 330UH 280MA 3.1OHM SMD Eaton - Electronics Division |
521 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 280 mA | 310mA | Unshielded | 3.1Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
