固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1104V2-100-RFIXED IND 10UH 6A 30 MOHM SMD Eaton - Electronics Division |
840 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 6 A | 6A | Shielded | 30mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|
DRA74-8R2-RFIXED IND 8.2UH 2.66A 40MOHM SMD Eaton - Electronics Division |
551 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 2.66 A | 3.17A | Shielded | 40mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
FP0705R2-R10-RFIXED IND 105NH 38A 0.32MOHM SMD Eaton - Electronics Division |
1,327 |
|
数据手册 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 105 nH | ±10% | 38 A | 44A | Unshielded | 0.32mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
HCM1A0503-R47-RFIXED IND 470NH 9.2A 7.2MOHM SMD Eaton - Electronics Division |
3,455 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 9.2 A | 12A | Shielded | 7.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.203" L x 0.201" W (5.15mm x 5.10mm) | 0.118" (3.00mm) |
|
DRA124-471-RFIXED IND 470UH 568MA 1.32OHM SM Eaton - Electronics Division |
120 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±20% | 568 mA | 911mA | Shielded | 1.32Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
DR124-821-RFIXED IND 820UH 530MA 2.351 OHM Eaton - Electronics Division |
748 |
|
数据手册 |
DR124 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 530 mA | 620mA | Shielded | 2.351Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
MPI4012V2-2R2-RFIXED IND 2.2UH 2.9A 90 MOHM SMD Eaton - Electronics Division |
3,186 |
|
数据手册 |
MPI40-V2 | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 2.9 A | 4.2A | Shielded | 90mOhm Max | - | 35MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.160" L x 0.171" W (4.06mm x 4.35mm) | 0.047" (1.20mm) |
|

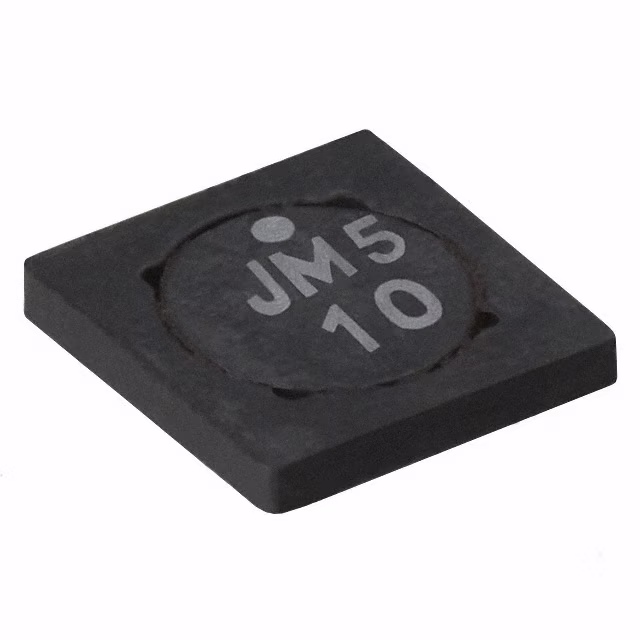

SD10-100-RFIXED IND 10UH 760MA 336MOHM SMD Eaton - Electronics Division |
4,344 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 760 mA | 752mA | Shielded | 336mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
FP1208R1-R23-RFIXED IND 230NH 50A 0.29MOHM SMD Eaton - Electronics Division |
477 |
|
数据手册 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 230 nH | ±10% | 50 A | 61A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
|
FP1208R1-R25-RFIXED IND 250NH 50A 0.29MOHM SMD Eaton - Electronics Division |
322 |
|
数据手册 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 250 nH | ±10% | 50 A | 55A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
