固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

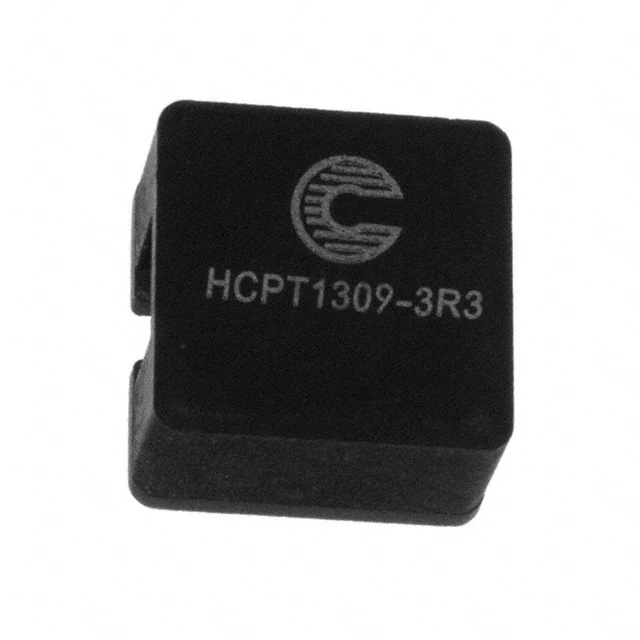

HCPT1309-3R3-RFIXED IND 3.31UH 11.4A 4.8 MOHM Eaton - Electronics Division |
4,101 |
|
数据手册 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 3.31 µH | ±20% | 11.4 A | 21A | Unshielded | 4.8mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | 0.354" (9.00mm) |
|
HCPT1309-1R0-RFIXED IND 960NH 19.4A 1.9MOHM TH Eaton - Electronics Division |
3,528 |
|
数据手册 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 960 nH | ±20% | 19.4 A | 40A | Unshielded | 1.9mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.539" L x 0.472" W (13.70mm x 12.00mm) | 0.354" (9.00mm) |
|

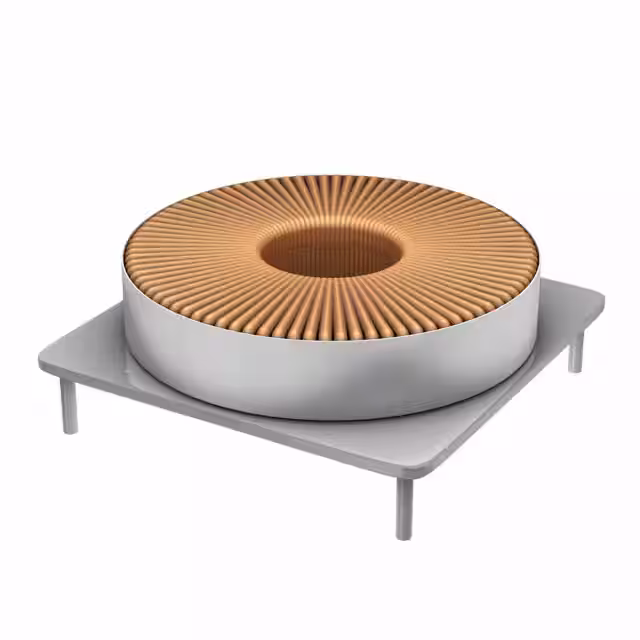

CTX10-2-52M-RFIXED IND 10UH 4.7A 18.3 MOHM TH Eaton - Electronics Division |
4,339 |
|
数据手册 |
CTX | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.7 A | 4.5A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.535" L x 0.449" W (13.60mm x 11.40mm) | 0.461" (11.70mm) |
|

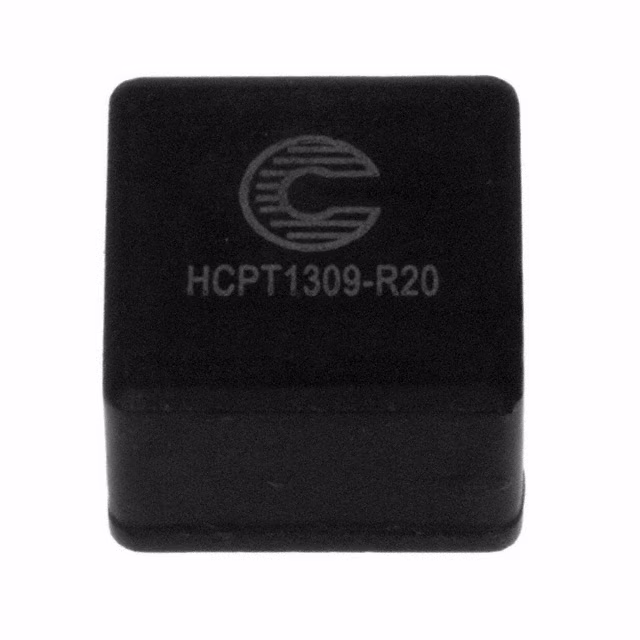

HCPT1309-R20-RFIXED IND 200NH 43.1A 0.426 MOHM Eaton - Electronics Division |
4,538 |
|
数据手册 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 43.1 A | 90A | Unshielded | 0.426mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | 0.354" (9.00mm) |
|

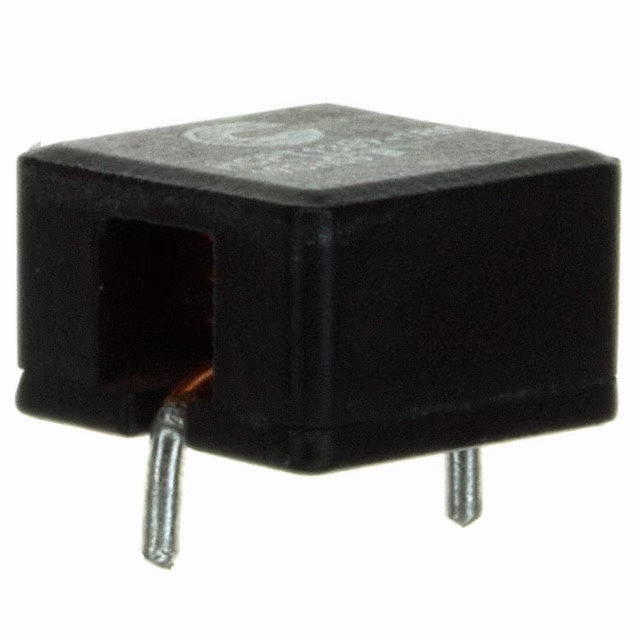

HCPT1309-R47-RFIXED IND 490NH 34A 0.624MOHM TH Eaton - Electronics Division |
2,165 |
|
数据手册 |
HCPT1309 | Radial, Horizontal | Bulk | Active | Drum Core, Wirewound | Iron Powder | 490 nH | ±20% | 34 A | 55A | Unshielded | 0.624mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.551" L x 0.480" W (14.00mm x 12.20mm) | 0.354" (9.00mm) |
|
CTX20-5-52LP-RFIXED IND 20UH 7.8A 26 MOHM TH Eaton - Electronics Division |
4,244 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7.8 A | 9.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.965" Dia (24.50mm) | 0.654" (16.60mm) |
|

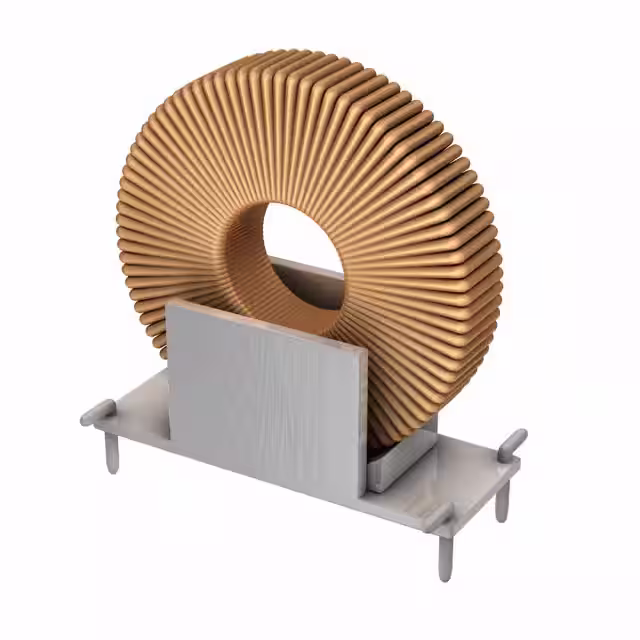

CTX150-1-52M-RFIXED IND 150UH 2.1A 162 MOHM TH Eaton - Electronics Division |
3,182 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2.1 A | 2.3A | Unshielded | 162mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.953" (24.20mm) |
|
|
CTX150-2-52-RFIXED IND 150UH 4.3A 71.9MOHM TH Eaton - Electronics Division |
1,703 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 4.3 A | 4A | Unshielded | 71.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.205" Dia x 0.441" W (30.60mm x 11.20mm) | - |
|
|
CTX500-1-52-RFIXED IND 500UH 1.7A 361 MOHM TH Eaton - Electronics Division |
3,714 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 1.7 A | 1.9A | Unshielded | 361mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia x 0.602" W (24.00mm x 15.30mm) | - |
|

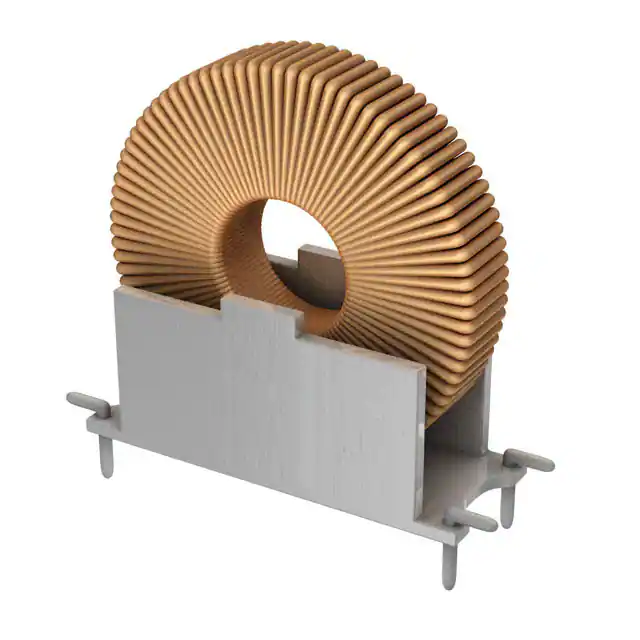

CTX10-5-52M-RFIXED IND 10UH 8.7A 10.4 MOHM TH Eaton - Electronics Division |
1,279 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 8.7 A | 11.1A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.894" (22.70mm) |
