固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRA127-8R2-RFIXED IND 8.2UH 6.33A 16MOHM SMD Eaton - Electronics Division |
2,941 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 8.2 µH | ±20% | 6.33 A | 12.2A | Shielded | 16mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CTX20-2-52-RFIXED IND 20UH 3.2A 39.2 MOHM TH Eaton - Electronics Division |
3,135 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 3.2 A | 3.2A | Unshielded | 39.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.492" Dia x 0.295" W (12.50mm x 7.50mm) | - |
|
CTX10-1-52M-RFIXED IND 10UH 2.4A 48.1 MOHM TH Eaton - Electronics Division |
2,357 |
|
数据手册 |
CTX | Radial, Horizontal, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 2.4 A | 2.1A | Unshielded | 48.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.370" L x 0.370" W (9.40mm x 9.40mm) | 0.272" (6.90mm) |
|
|
HCP0605-R10-RFIXED IND 95NH 53A 0.4 MOHM SMD Eaton - Electronics Division |
1,224 |
|
数据手册 |
HCP0605 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 95 nH | ±15% | 53 A | 20A | Unshielded | 0.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.240" W (5.30mm x 6.10mm) | 0.195" (4.95mm) |
|
CTX10-1-52LP-RFIXED IND 10UH 2.4A 48.1 MOHM TH Eaton - Electronics Division |
1,112 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 2.4 A | 2.1A | Unshielded | 48.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.339" Dia (8.60mm) | 0.185" (4.70mm) |
|
|
CTX150-1-52LP-RFIXED IND 150UH 2.1A 162 MOHM TH Eaton - Electronics Division |
2,846 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2.1 A | 2.3A | Unshielded | 162mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.815" Dia (20.70mm) | 0.370" (9.40mm) |
|
|
CTX10-5-52LP-RFIXED IND 10UH 8.7A 10.4 MOHM TH Eaton - Electronics Division |
1,892 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 8.7 A | 11.1A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.874" Dia (22.20mm) | 0.547" (13.90mm) |
|

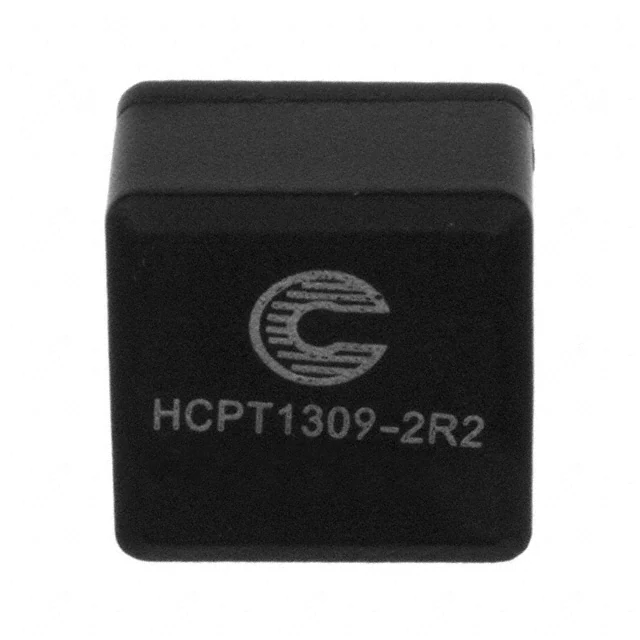

HCPT1309-2R2-RFIXED IND 2.27UH 12.5A 4.1 MOHM Eaton - Electronics Division |
3,926 |
|
数据手册 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 2.27 µH | ±20% | 12.5 A | 25A | Unshielded | 4.1mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | 0.354" (9.00mm) |
|
HCPT1309-1R5-RFIXED IND 1.59UH 13.7A 3.82 MOHM Eaton - Electronics Division |
4,954 |
|
数据手册 |
HCPT1309 | Radial, Horizontal | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.59 µH | ±20% | 13.7 A | 30.6A | Unshielded | 3.82mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - | 0.531" L x 0.465" W (13.50mm x 11.80mm) | 0.354" (9.00mm) |
|
|
FP1010R3-R100-RIND FLAT PAC 100NH 63A 2 PADS Eaton - Electronics Division |
3,993 |
|
数据手册 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 78 A | 95A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.402" (10.20mm) |
