固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP4B-2R2-RFIXED IND 2.2UH 12A 4.8 MOHM SMD Eaton - Electronics Division |
1,009 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 12 A | 23.7A | Unshielded | 4.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|

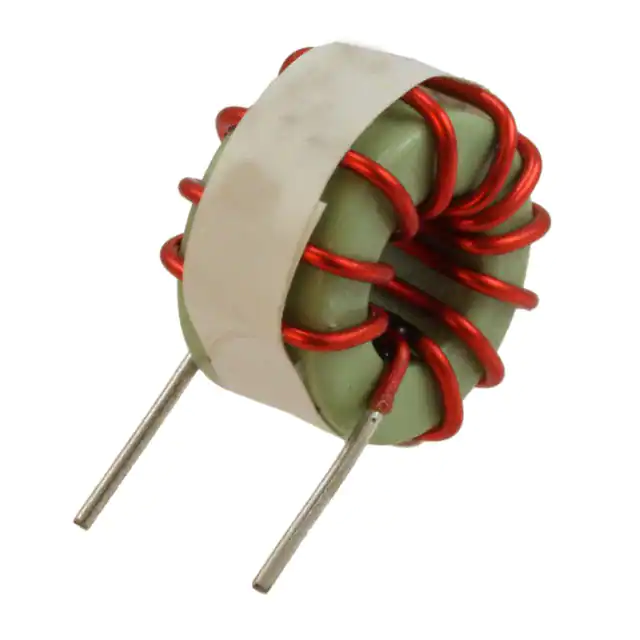

CTX10-5-52-RFIXED IND 10UH 8.7A 10.4 MOHM TH Eaton - Electronics Division |
3,038 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 8.7 A | 11.1A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.874" Dia x 0.547" W (22.20mm x 13.90mm) | - |
|
HCM1A1305-1R0-RFIXED IND 1UH 22A 2.42 MOHM SMD Eaton - Electronics Division |
1,110 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 22 A | 30A | Shielded | 2.42mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-R10-RFIXED IND 100NH 43A 0.59MOHM SMD Eaton - Electronics Division |
2,091 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 43 A | 80A | Shielded | 0.59mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-150-RFIXED IND 15UH 5.8A 33.4MOHM SMD Eaton - Electronics Division |
3,204 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 5.8 A | 11A | Shielded | 33.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1A1307-6R8-RFIXED IND 6.8UH 9A 11.5MOHM SMD Eaton - Electronics Division |
4,748 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 9 A | 20A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|

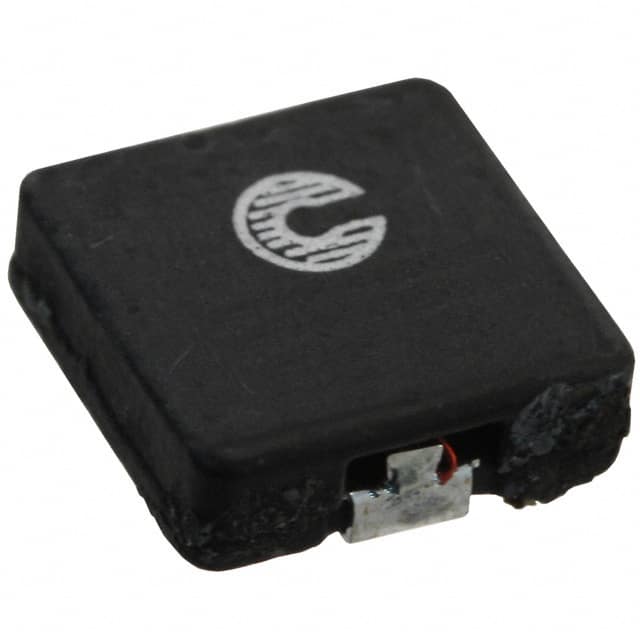

HC8LP-330-RFIXED IND 33UH 2.3A 224 MOHM SMD Eaton - Electronics Division |
1,705 |
|
数据手册 |
HC8LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 2.3 A | 3.8A | Unshielded | 224mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.138" (3.50mm) |
|
HCM1A1707-4R7-RFIXED IND 4.7UH 18A 4.72MOHM SMD Eaton - Electronics Division |
1,165 |
|
数据手册 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 18 A | 20A | Shielded | 4.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
CTX100-2-52M-RFIXED IND 100UH 4.4A 53.4MOHM TH Eaton - Electronics Division |
1,800 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 4.4 A | 4.3A | Unshielded | 53.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.024" (26.00mm) |
|
CTX10-10-52-RFIXED IND 10UH 16.9A 5.1 MOHM TH Eaton - Electronics Division |
3,134 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 16.9 A | 20.9A | Unshielded | 5.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.339" Dia x 0.843" W (34.00mm x 21.40mm) | - |
