固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD1-1R0-RFIXED IND 1UH 2.66A 33 MOHM SMD Eaton - Electronics Division |
2,290 |
|
数据手册 |
LD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.66 A | 4.46A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) |
|
HCMA1104-1R0-RFIXED IND 1UH 18A 3.3 MOHM SMD Eaton - Electronics Division |
4,242 |
|
数据手册 |
HCMA1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 18 A | 28A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|
HCMA1305-2R2-RFIXED IND 2.2UH 20A 5.29MOHM SMD Eaton - Electronics Division |
1,640 |
|
数据手册 |
HCMA1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 20 A | 32A | Shielded | 5.29mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1A1305V2-R10-RFIXED IND 100NH 43A 0.59MOHM SMD Eaton - Electronics Division |
3,166 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 43 A | 80A | Shielded | 0.59mOhm Max | - | 234MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
DRA124-3R3-RFIXED IND 3.3UH 6.94A 9 MOHM SMD Eaton - Electronics Division |
4,603 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.94 A | 11.85A | Shielded | 9mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
DRA74-681-RFIXED IND 680UH 315MA 2.86OHM SM Eaton - Electronics Division |
3,248 |
|
数据手册 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 315 mA | 352mA | Shielded | 2.86Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
UP1B-221-RFIXED IND 220UH 360MA 1.96OHM SM Eaton - Electronics Division |
3,461 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 360 mA | 380mA | Unshielded | 1.96Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|

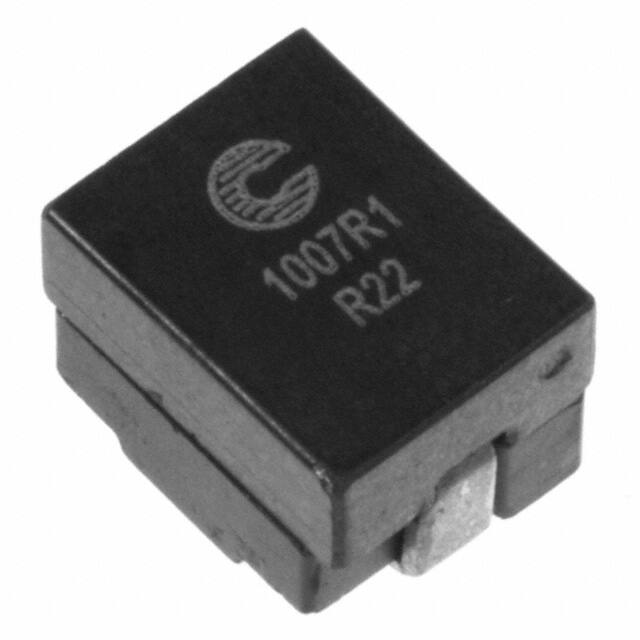

FP1007R1-R22-RFIXED IND 215NH 60A 0.29MOHM SMD Eaton - Electronics Division |
1,009 |
|
数据手册 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 215 nH | ±10% | 60 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
|
|
HCM1A1305V2-4R7-RFIXED IND 4.7UH 11A 9.38MOHM SMD Eaton - Electronics Division |
1,880 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 11 A | 18A | Shielded | 9.38mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
FP1007R1-R17-RFIXED IND 170NH 60A 0.29MOHM SMD Eaton - Electronics Division |
2,962 |
|
数据手册 |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 170 nH | ±10% | 60 A | 58A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.276" (7.00mm) |
