固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP1B-680-RFIXED IND 68UH 580MA 732MOHM SMD Eaton - Electronics Division |
3,933 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 580 mA | 670mA | Unshielded | 732mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
FP0705R1-R22-RFIXED IND 220NH 43A 0.25MOHM SMD Eaton - Electronics Division |
4,481 |
|
数据手册 |
FLAT-PAC, FP0705 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 43 A | 20A | Unshielded | 0.25mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.195" (4.95mm) |
|
HCM1A1307V2-R47-RFIXED IND 470NH 43A 0.87MOHM SMD Eaton - Electronics Division |
1,525 |
|
数据手册 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 43 A | 56A | Shielded | 0.87mOhm Max | - | 59MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
SD20-100-RFIXED IND 10UH 1.53A 110MOHM SMD Eaton - Electronics Division |
4,921 |
|
数据手册 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.53 A | 903mA | Shielded | 110mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
UP3B-1R0-RFIXED IND 1UH 12.5A 3.4 MOHM SMD Eaton - Electronics Division |
2,577 |
|
数据手册 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 12.5 A | 15.3A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|

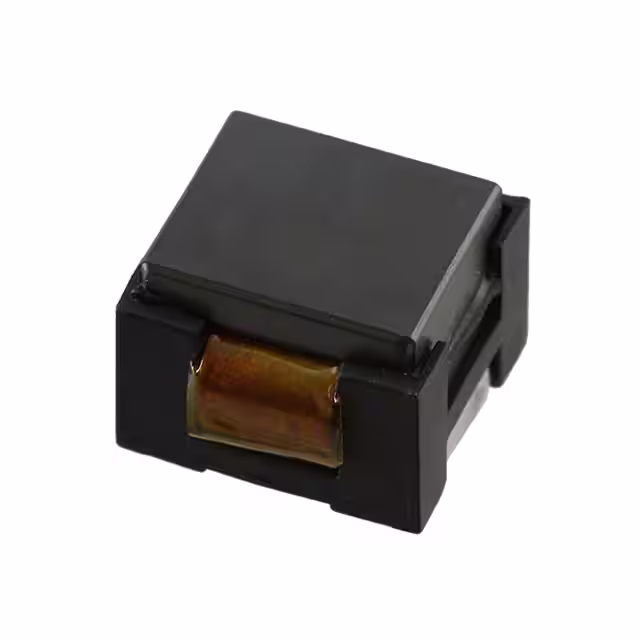

HC1-1R0-RFIXED IND 1UH 28.01A 1.23MOHM SM Eaton - Electronics Division |
1,552 |
|
数据手册 |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±15% | 28.01 A | 25.4A | Unshielded | 1.23mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|

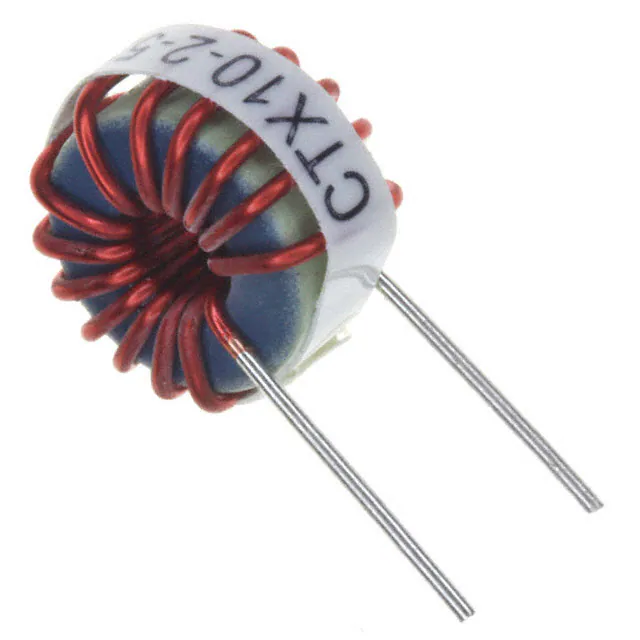

CTX10-2-52-RFIXED IND 10UH 4.7A 18.3 MOHM TH Eaton - Electronics Division |
1,403 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 4.7 A | 4.5A | Unshielded | 18.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.500" Dia x 0.307" W (12.70mm x 7.80mm) | - |
|

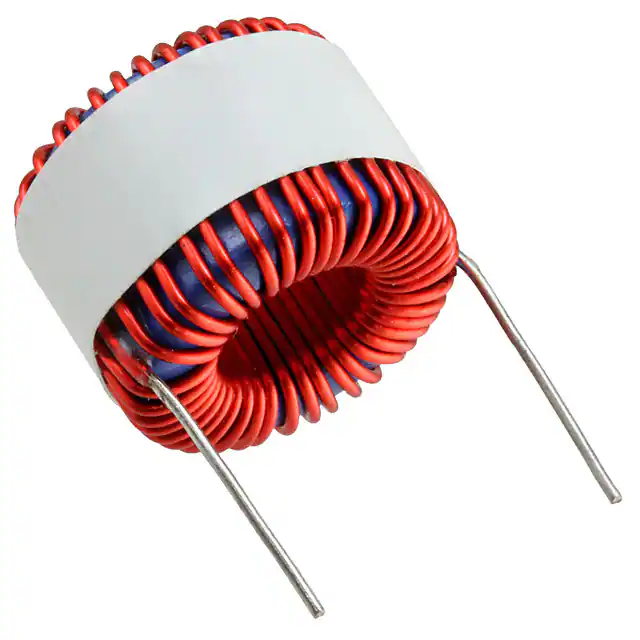

CTX100-1-52LP-RFIXED IND 100UH 2.5A 106 MOHM TH Eaton - Electronics Division |
1,605 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 2.5 A | 2.4A | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.610" Dia (15.50mm) | 0.488" (12.40mm) |
|
|
CTX100-2-52LP-RFIXED IND 100UH 4.4A 53.4MOHM TH Eaton - Electronics Division |
1,857 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 4.4 A | 4.3A | Unshielded | 53.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia (24.00mm) | 0.654" (16.60mm) |
|

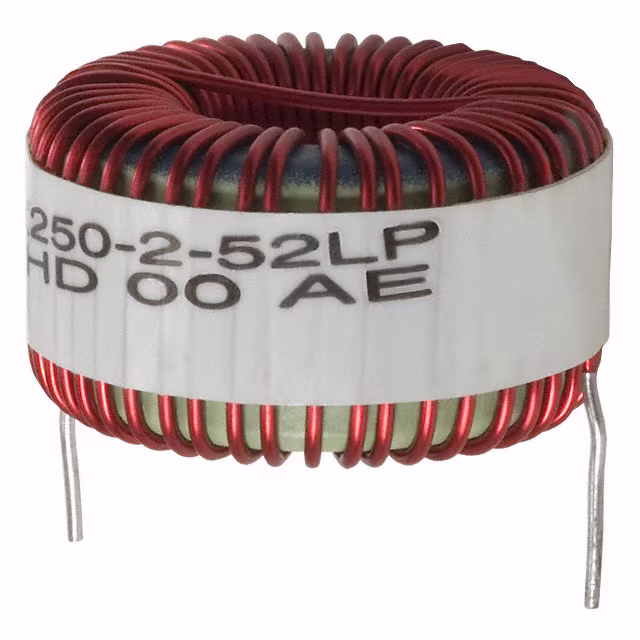

CTX250-2-52LP-RFIXED IND 250UH 4.2A 83.3MOHM TH Eaton - Electronics Division |
1,974 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 4.2 A | 4.2A | Unshielded | 83.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.228" Dia (31.20mm) | 0.748" (19.00mm) |
