固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

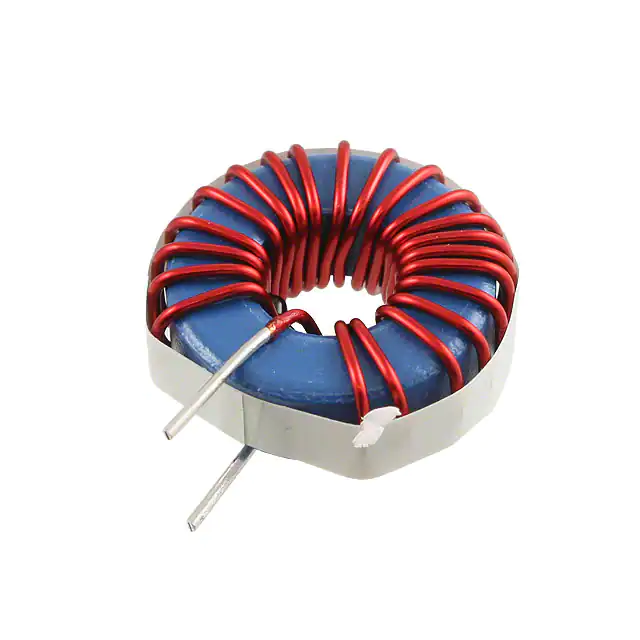

CTX50-7-52-RFIXED IND 50UH 10.5A 16.3MOHM TH Eaton - Electronics Division |
1,938 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.535" Dia x 0.661" W (39.00mm x 16.80mm) | - |
|

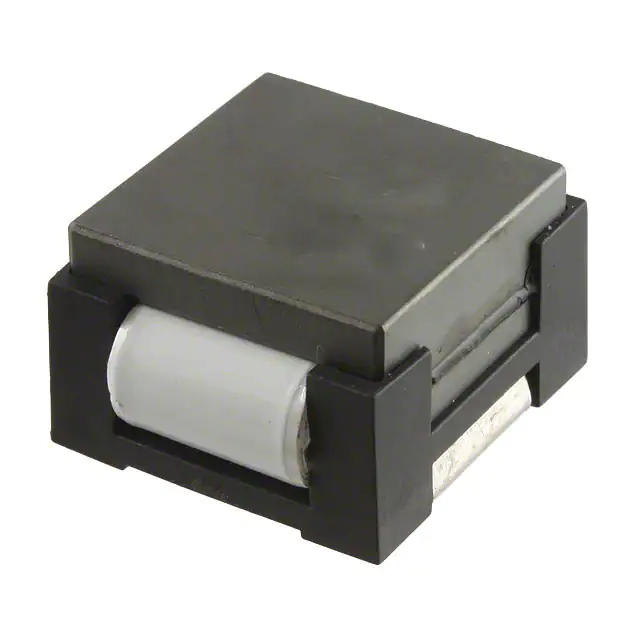

HC3-3R3-RFIXED IND 3.3UH 42.45A 1.2 MOHM Eaton - Electronics Division |
1,823 |
|
数据手册 |
HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 42.45 A | 46A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
CTX20-16-52-RFIXED IND 20UH 31.5A 3.4 MOHM TH Eaton - Electronics Division |
4,471 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 31.5 A | 29.5A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.323" Dia x 1.102" W (59.00mm x 28.00mm) | - |
|
MCQ1V1608-R150-RFIXED IND 150NH 50MA 300MOHM SMD Eaton - Electronics Division |
3,890 |
|
数据手册 |
MCQ1V1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 150 nH | ±10% | 50 mA | - | Unshielded | 300mOhm Max | 20 @ 25MHz | 180MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCQ1V1608-R270-RFIXED IND 270NH 50MA 450MOHM SMD Eaton - Electronics Division |
1,268 |
|
数据手册 |
MCQ1V1608 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 270 nH | ±10% | 50 mA | - | Unshielded | 450mOhm Max | 20 @ 25MHz | 136MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MCLA2012V1-3R9-RFIXED IND 3.9UH 50MA 800MOHM SMD Eaton - Electronics Division |
1,669 |
|
数据手册 |
MCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.9 µH | ±10% | 50 mA | - | Unshielded | 800mOhm Max | 35 @ 10MHz | 38MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCLA1608V1-1R5-RFIXED IND 1.5UH 25MA 700MOHM SMD Eaton - Electronics Division |
3,542 |
|
数据手册 |
MCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.5 µH | ±10% | 25 mA | - | Unshielded | 700mOhm Max | 25 @ 10MHz | 60MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCLA2012V1-R270-RFIXED IND 270NH 250MA 400MOHM SM Eaton - Electronics Division |
1,564 |
|
数据手册 |
MCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 270 nH | ±10% | 250 mA | - | Unshielded | 400mOhm Max | 20 @ 25MHz | 150MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCLA2012V1-1R2-RFIXED IND 1.2UH 50MA 400MOHM SMD Eaton - Electronics Division |
1,661 |
|
数据手册 |
MCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.2 µH | ±10% | 50 mA | - | Unshielded | 400mOhm Max | 35 @ 10MHz | 65MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCL2012V1-1R0-RFIXED IND 1UH 220MA 260 MOHM SMD Eaton - Electronics Division |
4,569 |
|
数据手册 |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 220 mA | - | Unshielded | 260mOhm Max | - | 75MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
