固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD2-102-HVIND DRUM CORE 1000UH 0.36A Eaton - Electronics Division |
2,614 |
|
数据手册 |
LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 440 mA | 360mA | Unshielded | 4Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|
DR1050-100-RFIXED IND 10UH 4.8A 22.5MOHM SMD Eaton - Electronics Division |
4,763 |
|
数据手册 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.8 A | 4.58A | Shielded | 22.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
DR125-680-RFIXED IND 68UH 2.22A 101MOHM SMD Eaton - Electronics Division |
3,105 |
|
数据手册 |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.22 A | 2.7A | Shielded | 101mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
FP1007R6-R39-RFIXED IND 390NH 61A 0.29MOHM SMD Eaton - Electronics Division |
2,808 |
|
数据手册 |
FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 61 A | 28A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
FP1507R1-R185-RFIXED IND 185NH 45A 0.52MOHM SMD Eaton - Electronics Division |
1,924 |
|
数据手册 |
FP1507R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 185 nH | ±10% | 45 A | 40A | Shielded | 0.52mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2-SMD | 0.575" L x 0.335" W (14.60mm x 8.50mm) | 0.264" (6.70mm) |
|
HCMA1707-330-RFIXED IND 33UH 9A 37 MOHM SMD Eaton - Electronics Division |
3,482 |
|
数据手册 |
HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 9 A | 10A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|

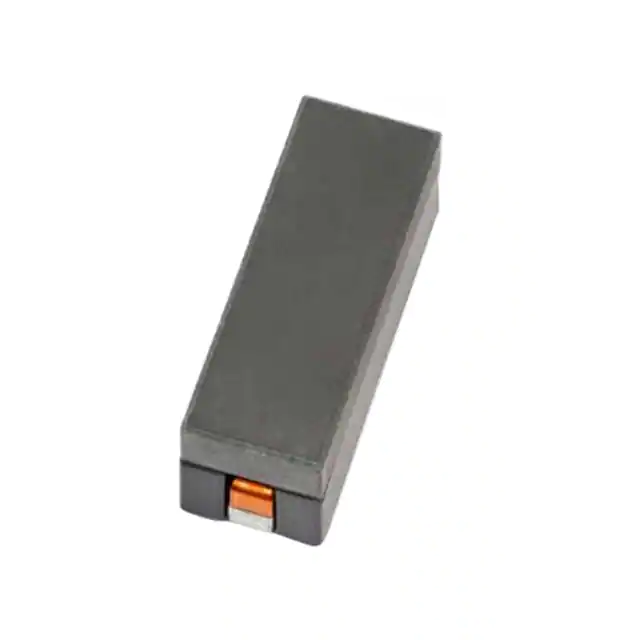

FP2207R1-R230-RFIXED IND 230NH 50A 470 MOHM SMD Eaton - Electronics Division |
4,892 |
|
数据手册 |
FP2207 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 230 nH | ±10% | 50 A | 72A | Shielded | 0.47mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.870" L x 0.311" W (22.10mm x 7.90mm) | 0.285" (7.25mm) |
|
MCL1608V2-3R3-RFIXED IND 3.3NH 500MA 150MOHM SM Eaton - Electronics Division |
1,982 |
|
数据手册 |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 nH | ±0.3nH | 500 mA | - | Unshielded | 150mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MCL1608V1-R82-RFIXED IND 820NH 100MA 600MOHM SM Eaton - Electronics Division |
1,518 |
|
数据手册 |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±20% | 100 mA | - | Unshielded | 600mOhm Max | - | 85MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
SDCL1V4020-1R0M-RIND 1.0 UH 8.7A SMT Eaton - Electronics Division |
4,820 |
|
数据手册 |
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 5.8 A | 8.7A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
