固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX100-5-52-RFIXED IND 100UH 8.2A 26.7MOHM TH Eaton - Electronics Division |
3,760 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 8.2 A | 7.5A | Unshielded | 26.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.488" Dia x 0.661" W (37.80mm x 16.80mm) | - |
|

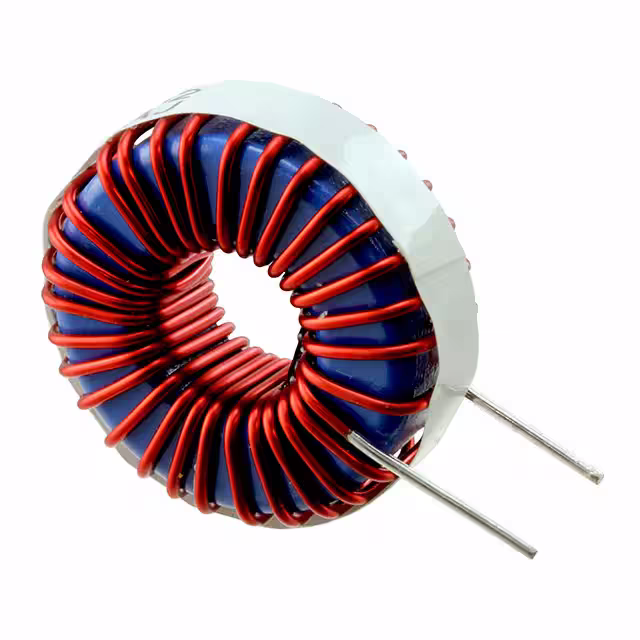

CTX100-5-52M-RFIXED IND 100UH 8.2A 26.7MOHM TH Eaton - Electronics Division |
4,666 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 8.2 A | 7.5A | Unshielded | 26.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.583" (40.20mm) |
|
|
CTX750-1-52M-RFIXED IND 750UH 1.8A 434 MOHM TH Eaton - Electronics Division |
3,797 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 1.8 A | 2.4A | Unshielded | 434mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.244" (31.60mm) |
|
|
CTX20-10-52-RFIXED IND 20UH 16A 7 MOHM TH Eaton - Electronics Division |
4,763 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 16 A | 16A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.594" Dia x 0.709" W (40.50mm x 18.00mm) | - |
|
|
CTX100-5-52LP-RFIXED IND 100UH 8.2A 26.7MOHM TH Eaton - Electronics Division |
1,835 |
|
数据手册 |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 8.2 A | 7.5A | Unshielded | 26.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.488" Dia (37.80mm) | 0.661" (16.80mm) |
|
CTX08-13679FIXED IND 1.2MH 4.7A 67 MOHM TH Eaton - Electronics Division |
3,115 |
|
数据手册 |
PFC | Radial, 10 Leads | Bulk | Obsolete | Toroidal | Ferrite | 1.2 mH | ±3% | 4.7 A | - | Unshielded | 67mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 2.020" L x 1.900" W (51.31mm x 48.26mm) | 1.530" (38.86mm) |
|
CTX16-17309-RFIXED IND 200UH 2A 225 MOHM TH Eaton - Electronics Division |
3,644 |
|
数据手册 |
PFC | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 200 µH | - | 2 A | - | Unshielded | 225mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 1.386" L x 0.866" W (35.20mm x 22.00mm) | 1.319" (33.50mm) |
|
|
CTX50-10-52-RFIXED IND 50UH 13.9A 12.4MOHM TH Eaton - Electronics Division |
3,713 |
|
数据手册 |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 13.9 A | 12.7A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.870" Dia x 0.839" W (47.50mm x 21.30mm) | - |
|
CTX150-5-52M-RFIXED IND 150UH 7.7A 40.1MOHM TH Eaton - Electronics Division |
1,599 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 7.7 A | 7.5A | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.850" (47.00mm) |
|
|
CTX750-2-52M-RFIXED IND 750UH 3.4A 208 MOHM TH Eaton - Electronics Division |
1,645 |
|
数据手册 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 3.4 A | 3.4A | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.787" (45.40mm) |
