固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTLQ1812CF-6R8M6.8UH 720MA SMD WW INDUCTOR Central Technologies |
175 |
|
数据手册 |
CTLQ1812CF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 720 mA | - | Unshielded | 200mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

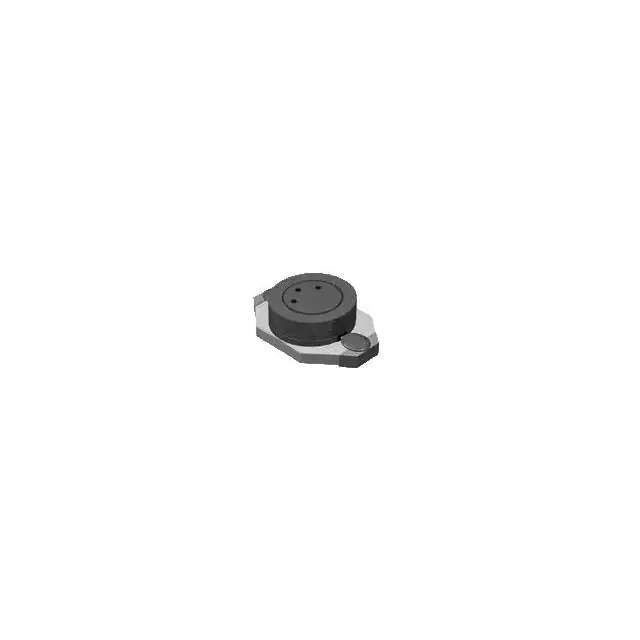

CTDS1608CF-3323.3UH SMD SHIELDED POWR INDUCTOR Central Technologies |
7,485 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.6 A | - | Shielded | 55mOhm Max | 40 @ 200kHz | 120MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-4724.7UH SMD SHIELDD POWER INDUCTOR Central Technologies |
4,875 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.4 A | - | Shielded | 60mOhm Max | 40 @ 200kHz | 105MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-10310UH SMD SHIELDED POWER INDUCTOR Central Technologies |
2,530 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1 A | - | Shielded | 75mOhm Max | 40 @ 200kHz | 38MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-4754700UH SMD SHIELD POWER INDUCTOR Central Technologies |
1,775 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 mH | ±20% | 60 mA | - | Shielded | 13.9Ohm Max | 50 @ 100kHz | 1MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-154150UH SMD SHIELDD POWER INDUCTOR Central Technologies |
1,495 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 260 mA | - | Shielded | 590mOhm Max | 40 @ 100kHz | 9MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-10610000UH SMD SHIELD POWR INDUCTOR Central Technologies |
1,225 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 mH | ±20% | 20 mA | - | Shielded | 32.8Ohm Max | 50 @ 100kHz | 800kHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-104100UH SMD SHIELDD POWER INDUCTOR Central Technologies |
545 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 300 mA | - | Shielded | 480mOhm Max | 40 @ 100kHz | 10MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-2252200UH SMD SHIELDED PWR INDUCTOR Central Technologies |
150 |
|
数据手册 |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 mH | ±20% | 100 mA | - | Shielded | 8.5Ohm Max | 50 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
CTDO5022PF-33333UH SMD POWER INDUCTOR Central Technologies |
2,000 |
|
数据手册 |
CTDO5022PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 3 A | 5.5A | Unshielded | 66mOhm | - | 15MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.718" L x 0.600" W (18.24mm x 15.24mm) | 0.295" (7.50mm) |
