固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

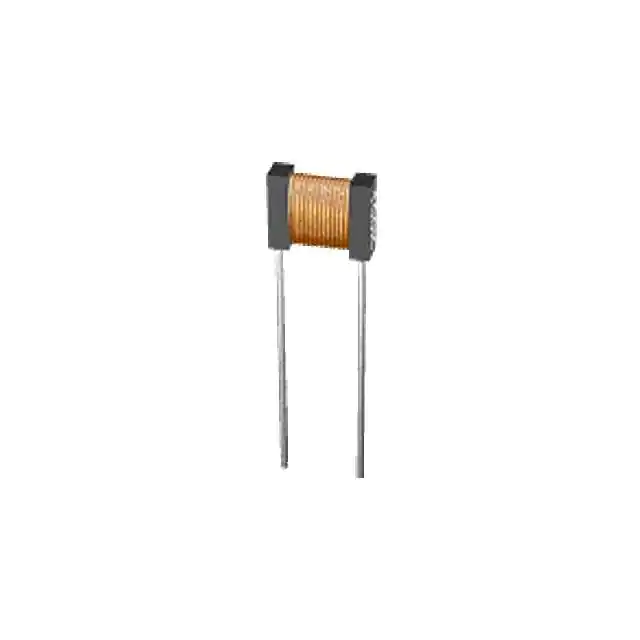

CTFCF-681K680UH POWER INDUCTOR Central Technologies |
990 |
|
数据手册 |
CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 680 µH | ±10% | 290 mA | - | Unshielded | 5.9Ohm Max | 45 @ 790kHz | - | - | -20°C ~ 100°C | 790 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.031" (26.20mm) |
|
|
CTFCF-103K10000UH POWER INDUCTOR Central Technologies |
395 |
|
数据手册 |
CTFCF | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 10 mH | ±10% | 70 mA | - | Unshielded | 70Ohm Max | 25 @ 250kHz | - | - | -20°C ~ 100°C | 250 kHz | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.031" (26.20mm) |
|
CT181LYF-333JRAD LEADED FIXED SHLDED INDUCTOR Central Technologies |
1,015 |
|
数据手册 |
ct181lyf | - | Bulk | Active | - | - | 33 mH | ±5% | - | - | - | 26Ohm | - | 160kHz | - | -20°C ~ 125°C | - | - | Through Hole | - | - | - |
|

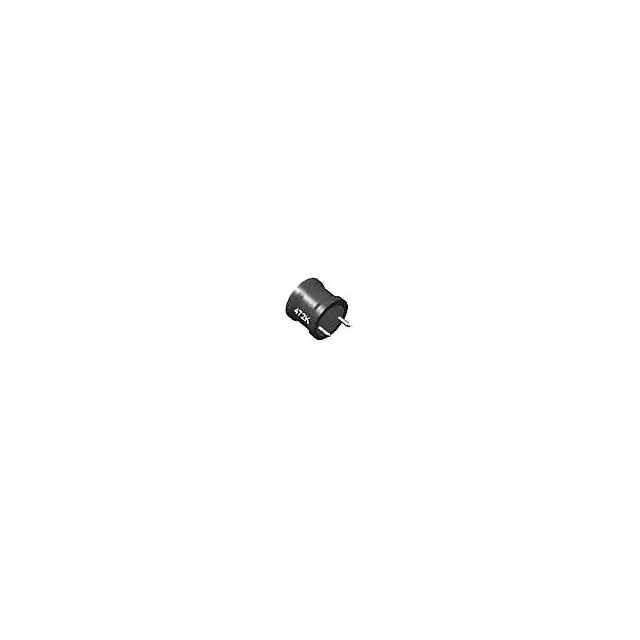

CT262LYF-221KRAD LEADED FIXED INDUCTOR LOW PR Central Technologies |
985 |
|
数据手册 |
ct262lyf | - | Bulk | Active | - | - | 220 µH | ±10% | - | - | - | 3Ohm | - | 4.5GHz | - | - | - | - | Through Hole | - | - | - |
|
CT622LYF-151JRADIAL LEADED FIXED INDUCTOR Central Technologies |
1,018 |
|
数据手册 |
ct622lyf | - | Bulk | Active | - | - | 150 µH | ±5% | - | - | - | 370mOhm | - | 3.2MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-221KRADIAL LEADED FIXED INDUCTOR Central Technologies |
1,000 |
|
数据手册 |
ct622lyf | - | Bulk | Active | - | - | 220 µH | ±10% | - | - | - | 650mOhm | - | 2.7MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-100KRADIAL LEADED FIXED INDUCTOR Central Technologies |
947 |
|
数据手册 |
ct622lyf | - | Bulk | Active | - | - | 10 µH | ±10% | - | - | - | 40mOhm | - | 14MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-3R3MRADIAL LEADED FIXED INDUCTOR Central Technologies |
496 |
|
数据手册 |
ct622lyf | - | Bulk | Active | - | - | 3.3 µH | ±20% | - | - | - | 20mOhm | - | 79MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-150KRADIAL LEADED FIXED INDUCTOR Central Technologies |
200 |
|
数据手册 |
ct622lyf | - | Bulk | Active | - | - | 15 µH | ±10% | - | - | - | 50mOhm | - | 12MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
|
|
CT622LYF-470JRADIAL LEADED FIXED INDUCTOR Central Technologies |
200 |
|
数据手册 |
ct622lyf | - | Bulk | Active | - | - | 47 µH | ±5% | - | - | - | 160mOhm | - | 6.5MHz | - | -55°C ~ 125°C | - | - | Through Hole | - | - | - |
