场效应晶体管（FETs）、MOSFETs
| 制造商 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部应用
全部重置
结果
| 图片 | 制造商型号 | 库存情况 | 价格 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
TSM6N50CP ROGMOSFET N-CH 500V 5.6A TO252 Taiwan Semiconductor Corporation |
4,463 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5.6A (Ta) | 10V | 1.4Ohm @ 2.8A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 90W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
TSM7N90CZ C0GMOSFET N-CHANNEL 900V 7A TO220 Taiwan Semiconductor Corporation |
6,596 | - |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 7A (Tc) | 10V | 1.9Ohm @ 3.5A, 10V | 4V @ 250µA | 49 nC @ 10 V | ±30V | 1969 pF @ 25 V | - | 40.3W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
TSM80N950CH C5GMOSFET N-CHANNEL 800V 6A TO251 Taiwan Semiconductor Corporation |
6,366 | - |
|
数据手册 |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 950mOhm @ 3A, 10V | 4V @ 250µA | 19.6 nC @ 10 V | ±30V | 691 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-251 (IPAK) |
|
TSM9409CS RLGMOSFET P-CHANNEL 60V 3.5A 8SOP Taiwan Semiconductor Corporation |
1,736 | - |
|
数据手册 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 60 V | 3.5A (Ta) | 4.5V, 10V | 155mOhm @ 3.5A, 10V | 1V @ 250µA | 6 nC @ 10 V | ±20V | 540 pF @ 30 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
|
|
TSM15N50CZ C0GMOSFET N-CHANNEL 500V 14A TO220 Taiwan Semiconductor Corporation |
7,195 | - |
|
数据手册 |
- | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 14A (Tc) | 10V | 440mOhm @ 7A, 10V | 4V @ 250µA | 39 nC @ 10 V | ±30V | 2263 pF @ 25 V | - | - | 150°C (TJ) | - | - | Through Hole | TO-220 |
|
TSM60N600CI C0GMOSFET N-CH 600V 8A ITO220AB Taiwan Semiconductor Corporation |
8,051 | - |
|
数据手册 |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 8A (Tc) | 10V | 600mOhm @ 4A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±30V | 743 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
|
|
TSM70N600CI C0GMOSFET N-CH 700V 8A ITO220AB Taiwan Semiconductor Corporation |
8,405 | - |
|
数据手册 |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 8A (Tc) | 10V | 600mOhm @ 4A, 10V | 4V @ 250µA | 12.6 nC @ 10 V | ±30V | 743 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
.JPG)
|
TSM026NA03CR RLGMOSFET N-CH 30V 168A 8PDFN Taiwan Semiconductor Corporation |
4,236 | - |
|
数据手册 |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 168A (Tc) | 4.5V, 10V | 2.6mOhm @ 24A, 10V | 2.5V @ 250µA | 41 nC @ 10 V | ±20V | 2540 pF @ 15 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|

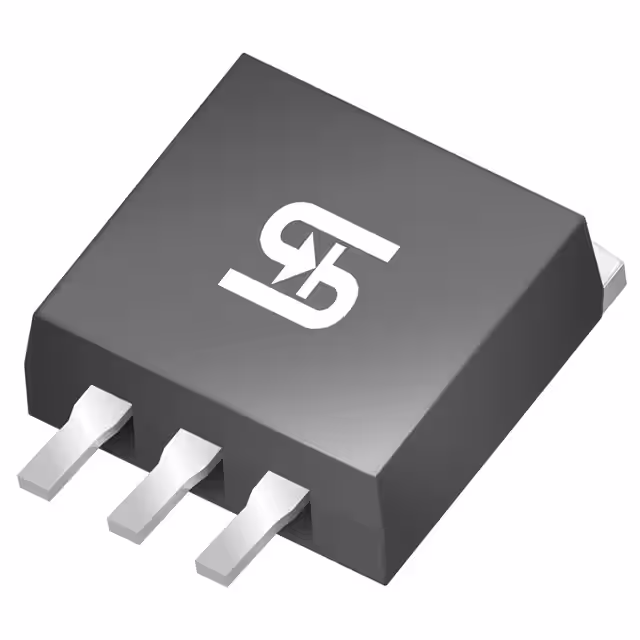

TSM70N600ACL X0GMOSFET N-CH 700V 8A TO262S Taiwan Semiconductor Corporation |
5,537 | - |
|
数据手册 |
- | TO-262-3 Short Leads, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 8A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 4V @ 250µA | 12.6 nC @ 10 V | ±30V | 743 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262S (I2PAK) |
|
|
TSM4N60ECP ROGMOSFET N-CHANNEL 600V 4A TO252 Taiwan Semiconductor Corporation |
2,444 | - |
|
数据手册 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 5V @ 250µA | 12 nC @ 10 V | ±30V | 545 pF @ 25 V | - | 86.2W (Tc) | 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
