直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1212GH-AF00FAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
4,246 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 39.6 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|

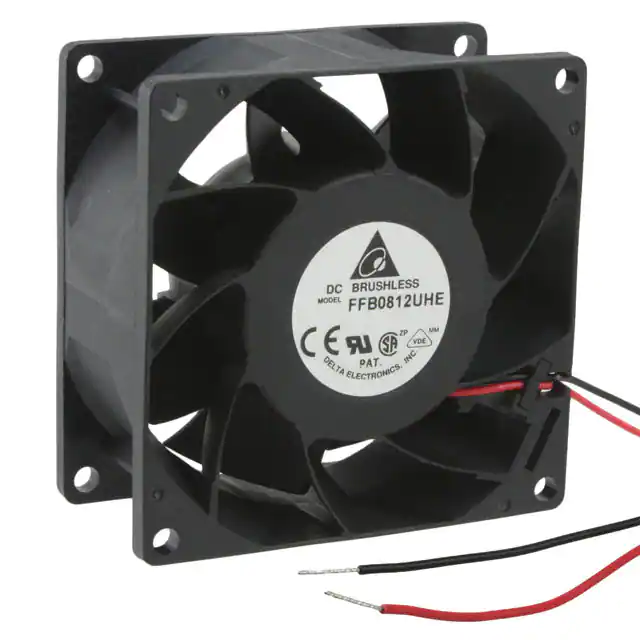

FFB0812UHEFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
3,111 |
|
数据手册 |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 1.233 in H2O (307.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.2dB(A) | 18 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
PFB0912DHEFAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
4,166 |
|
数据手册 |
PFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 66.5dB(A) | 37.2 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
PFB0824DHEP0AXIAL 80X38 24VPWM Delta Electronics |
3,955 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 30.24 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, VDE | - |
|
FFB0848SHE-TP36FAN AXIAL 80X38MM 48VDC WIRE Delta Electronics |
4,716 |
|
数据手册 |
FFB | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 68.5 CFM (1.92m³/min) | 0.591 in H2O (147.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.5dB(A) | 7.68 W | 4900 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
PFB0924DHEP0AXIAL 92X38 24V PWM Delta Electronics |
4,790 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 34.8 W | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
FFB1224VHEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
2,290 |
|
数据手册 |
FFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 151.9 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 13.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
THD0848MEFAN AXIAL 80X38MM 48VDC WIRE Delta Electronics |
2,150 |
|
数据手册 |
THD - Bionic Blade | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 128.0 CFM (3.58m³/min) | 1.476 in H2O (367.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.0dB(A) | 26.4 W | 9500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.353 lb (160.12 g) |
|

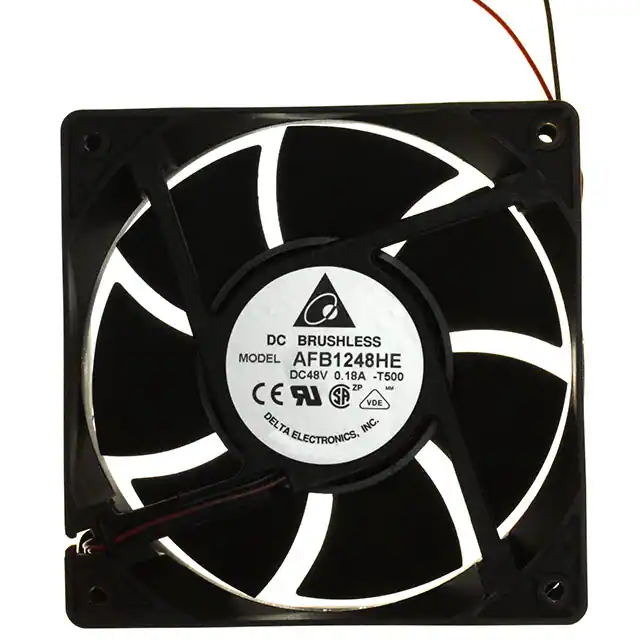

AFB1248HE-T500FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
2,554 |
|
数据手册 |
AFB | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 5.76 W | 2600 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
PFB0924DHE-F00FAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
1,530 |
|
数据手册 |
PFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 66.5dB(A) | 34.8 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
