直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

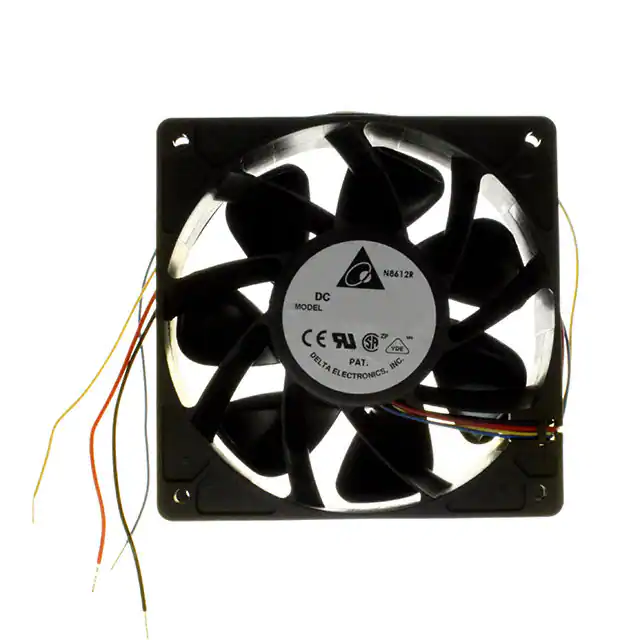

QFR1212EHEFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
3,363 |
|
数据手册 |
QFR | Box | Not For New Designs | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 173.8 CFM (4.87m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.0dB(A) | 12 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|

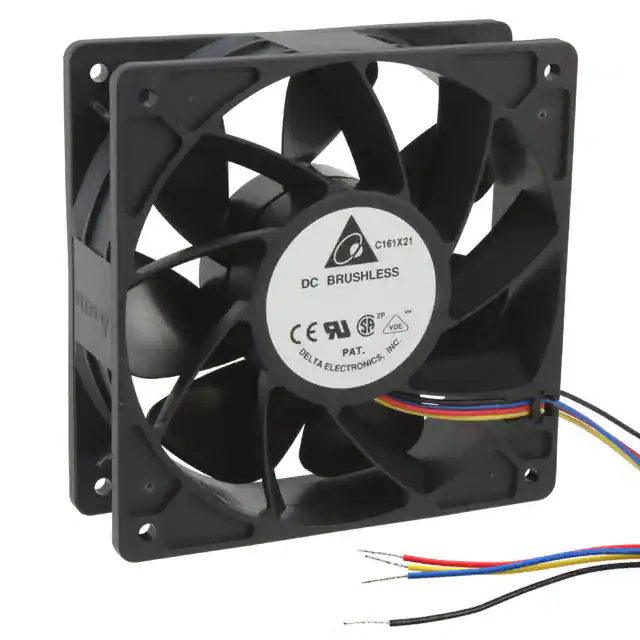

QFR1248GHE-SP01FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
4,513 |
|
数据手册 |
QFR | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 210.4 CFM (5.89m³/min) | 1.170 in H2O (291.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 24 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|

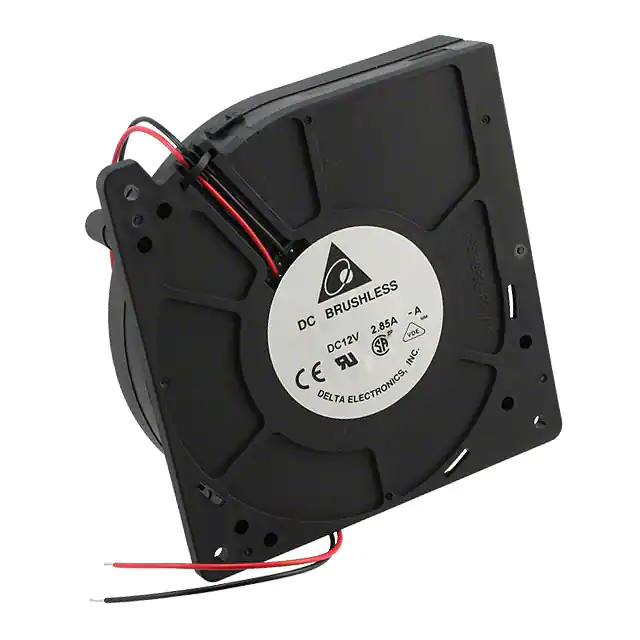

BFB1212EH-AFAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
4,668 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 54.9 CFM (1.54m³/min) | 3.485 in H2O (868.1 Pa) | Ball | Blower | Locked Rotor Protection | 62.0dB(A) | 28.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|

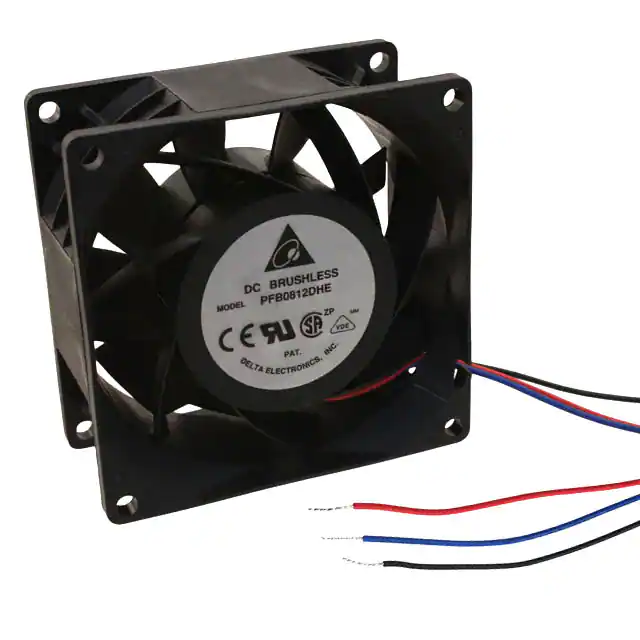

PFB0812DHE-F00FAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
2,127 |
|
数据手册 |
PFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 132.6 CFM (3.71m³/min) | 2.030 in H2O (505.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 33 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
|
BFB1212GH-AFAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
2,929 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection | 65.0dB(A) | 39.6 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
FFB1224HH-F00FAN AXIAL 120X25.4MM 24VDC WIRE Delta Electronics |
2,683 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 114.7 CFM (3.21m³/min) | 0.288 in H2O (71.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.7dB(A) | 6.72 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|

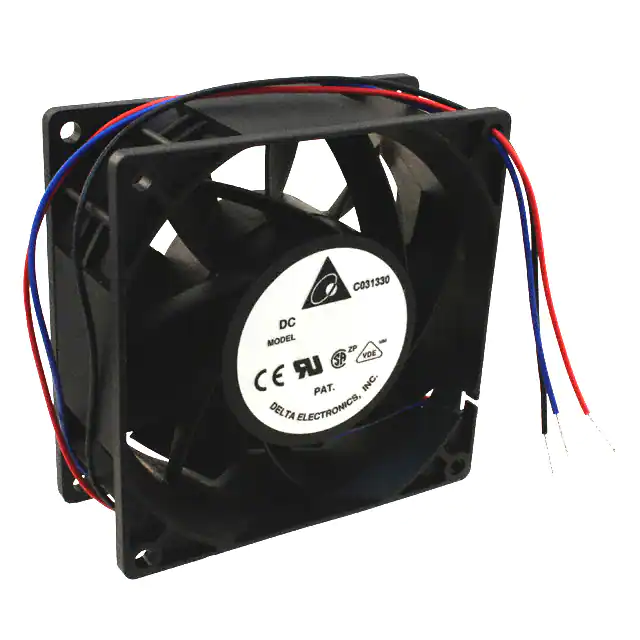

PFB0924DHE-R00FAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
3,635 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 175.0 CFM (4.90m³/min) | 1.819 in H2O (453.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 66.5dB(A) | 34.8 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
THD0612VE-00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
4,288 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 80.2 CFM (2.25m³/min) | 4.430 in H2O (1103.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 34.8 W | 19500 RPM | 4 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV | - |
|
|
BFB03512MA-CR00FAN BLOWER 35X10MM 12VDC WIRE Delta Electronics |
1,204 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Blower | Locked Rotor Sensor | 26.0dB(A) | 720 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
FFB1248EH-F00FAN AXIAL 120X25.4MM 48VDC WIRE Delta Electronics |
4,602 |
|
数据手册 |
FFB | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.4dB(A) | 15.36 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
