直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QFR0612UHE-PM00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
1,124 |
|
数据手册 |
QFR | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 56.4 CFM (1.58m³/min) | 2.194 in H2O (546.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.5dB(A) | 13.2 W | 13000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
|
BFB1012HH-TP48FAN BLOWER 97.2X33MM 12VDC WIRE Delta Electronics |
967 |
|
数据手册 |
BFB | Box | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 28.3 CFM (0.792m³/min) | 0.947 in H2O (235.9 Pa) | Ball | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.5dB(A) | 8.28 W | 3200 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
GFC0412DS-DF00FAN AXIAL DUAL 40X56MM 12VDC Delta Electronics |
566 |
|
数据手册 |
GFC | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 32.2 CFM (0.902m³/min) | 2.631 in H2O (655.4 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.5dB(A) | 15.6 W | 16000 Front, 15400 Rear | 4 Wire Leads per Fan | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 0.183 lb (83.01 g) |
|
AFB1224EHE-CF00FAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
638 |
|
数据手册 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 212.6 CFM (5.95m³/min) | 0.844 in H2O (210.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 20.4 W | 4600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
|
AFB1212GHE-CF00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
426 |
|
数据手册 |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 62.0dB(A) | 29.4 W | 5200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
|
AFB1212SHE-CF00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
200 |
|
数据手册 |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.5dB(A) | 15 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
FFB1312SHEFAN AXIAL 127X38MM 12VDC WIRE Delta Electronics |
354 |
|
数据手册 |
FFB | Tray | Obsolete | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 180.0 CFM (5.04m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 22.2 W | 3450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
FFB0412HHNFAN AXIAL 40X28MM 12VDC WIRE Delta Electronics |
4,716 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 13.2 CFM (0.370m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 1.32 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

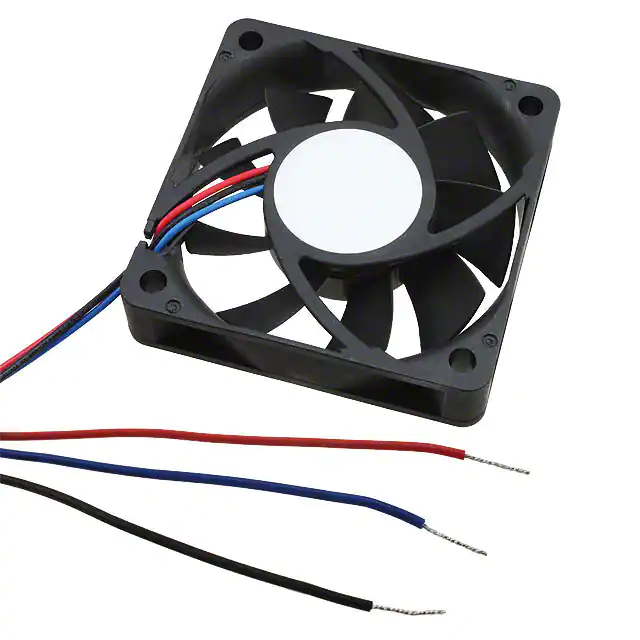

AFB0612VHC-R00FAN AXIAL 60X13MM 12VDC WIRE Delta Electronics |
3,963 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 2.88 W | 5400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
PFB0624EHE-F00FAN AXIAL 60X38MM 24VDC WIRE Delta Electronics |
4,143 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 60mm L x 60mm H | 38.00mm | 50.4 CFM (1.41m³/min) | 1.203 in H2O (299.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 54.0dB(A) | 8.64 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
