直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0512HBFAN AXIAL 50X15MM 12VDC WIRE Delta Electronics |
1,276 |
|
数据手册 |
AFB | Tray | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.2 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
BFB03505HHA-AFAN BLOWER 35X10MM 5VDC WIRE Delta Electronics |
7,038 |
|
数据手册 |
BFB | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | Blower | Locked Rotor Protection | 31.0dB(A) | 750 mW | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.025 lb (11.34 g) |
|

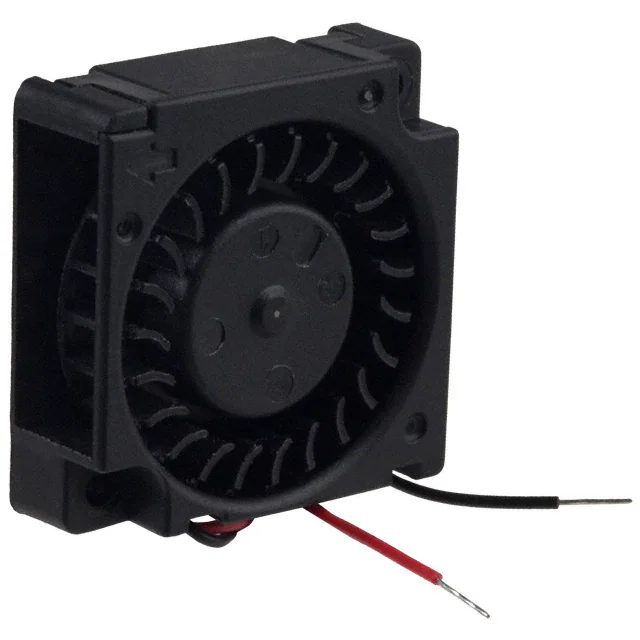

BFB0312HA-AFAN BLOWER 30X10MM 12VDC WIRE Delta Electronics |
4,493 |
|
数据手册 |
BFB | Tray | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Blower | Locked Rotor Protection | 29.0dB(A) | 720 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
|

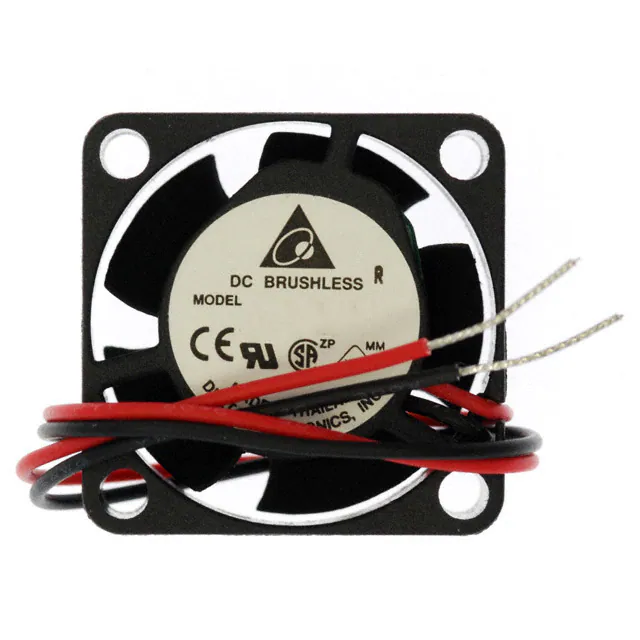

AFB02512HHA-AF00FAN AXIAL 25X10MM 12VDC WIRE Delta Electronics |
704 |
|
数据手册 |
AFB | Tray | Not For New Designs | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.024 lb (10.89 g) |
|
EFB0812HHBFAN AXIAL 80X15MM 12VDC WIRE Delta Electronics |
330 |
|
数据手册 |
EFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 48.8 CFM (1.37m³/min) | 0.171 in H2O (42.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 3.96 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.148 lb (67.13 g) |
|
AFB0812LBFAN AXIAL 80X15MM 12VDC WIRE Delta Electronics |
304 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 24.7 CFM (0.692m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 27.5dB(A) | 1.08 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|

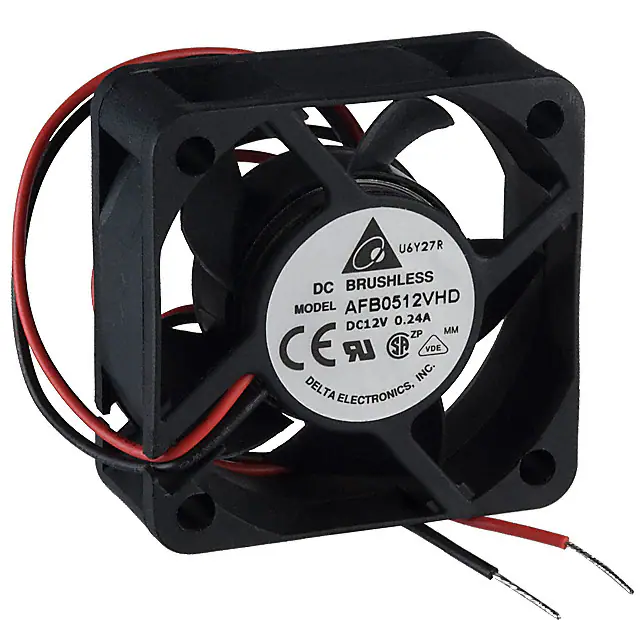

AFB0512VHDFAN AXIAL 50X20MM 12VDC WIRE Delta Electronics |
750 |
|
数据手册 |
AFB | Tray | Active | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 1.92 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
FFB03812MNFAN AXIAL 38X28MM 12VDC WIRE Delta Electronics |
144 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 12.4 CFM (0.347m³/min) | 0.566 in H2O (141.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 3 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
AFB0824SH-F00FAN AXIAL 80X25.4MM 24VDC WIRE Delta Electronics |
2,093 |
|
数据手册 |
AFB | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 3.84 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

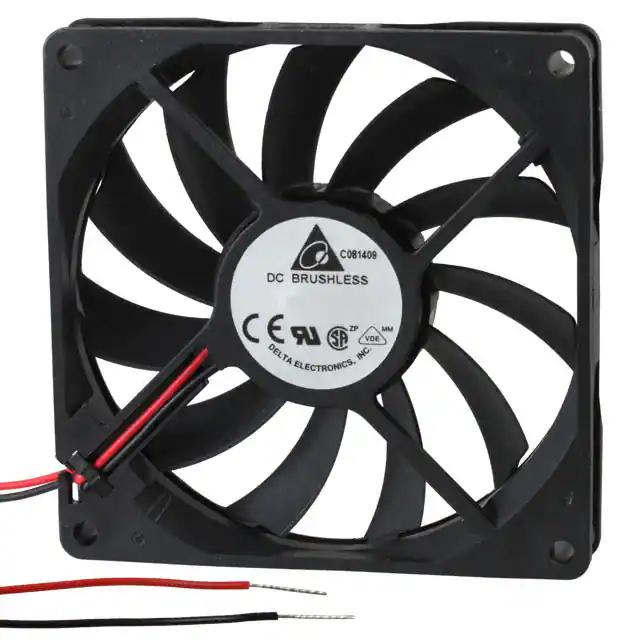

AFB0912LBFAN AXIAL 92X15MM 12VDC WIRE Delta Electronics |
1,485 |
|
数据手册 |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 15.00mm | 26.1 CFM (0.731m³/min) | 0.045 in H2O (11.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.2 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
