直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1248VH-AFAN BLOWER 120X32MM 48VDC WIRE Delta Electronics |
2,640 |
|
数据手册 |
BFB | Box | Active | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 42.5 CFM (1.19m³/min) | 1.848 in H2O (460.3 Pa) | Ball | Blower | Locked Rotor Protection | 57.0dB(A) | 17.76 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|

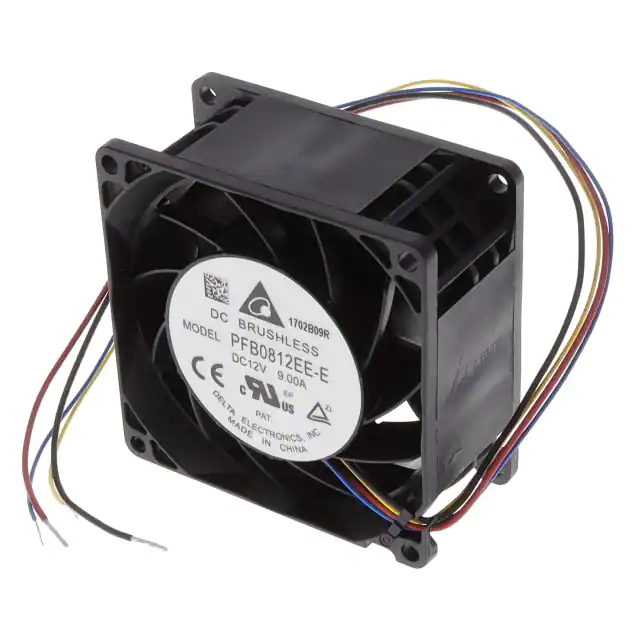

PFB0812EE-EFAN AXIAL 80X38MM 12VDC WIRE Delta Electronics |
2,918 |
|
数据手册 |
PFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 6.010 in H2O (1497.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 48 W | 16800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
BFB1224GH-TA50FAN BLOWER 120X32MM 24VDC WIRE Delta Electronics |
1,797 |
|
数据手册 |
BFB | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection | 65.0dB(A) | 38.4 W | 4400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
FFB1224XHE-MFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
4,824 |
|
数据手册 |
FFB | Box | Not For New Designs | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 264.6 CFM (7.41m³/min) | 1.705 in H2O (424.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 73.5dB(A) | 78 W | 6300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
EFB1548XHG20DFAN AXIAL 172X50.8MM 48VDC WIRE Delta Electronics |
3,529 |
|
数据手册 |
EFB | Box | Not For New Designs | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 435.4 CFM (12.19m³/min) | 2.085 in H2O (519.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 73.0dB(A) | 66.2 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.9 lbs (861.8 g) |
|
AFB0912VH-F00FAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
3,304 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 67.8 CFM (1.90m³/min) | 0.302 in H2O (75.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.8 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.218 lb (98.88 g) |
|
|
AFB02505HHA-CF00FAN AXIAL 25X10MM BALL 5VDC WIRE Delta Electronics |
3,360 |
|
数据手册 |
AFB | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 800 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
BFB0712L-F00FAN BLOWER 75.7X30MM 12VDC WIRE Delta Electronics |
3,027 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 7.0 CFM (0.196m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 1900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.211 lb (95.71 g) |
|
AFB1248HE-F00FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
3,265 |
|
数据手册 |
AFB | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 105.9 CFM (2.97m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 41.0dB(A) | 5.76 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
AFB1212SH-T500FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
3,237 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 113.1 CFM (3.17m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.5dB(A) | 6.36 W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
