直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0924GHEP6AXIAL 92X38 24V PWM IP68 Delta Electronics |
3,355 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 124.2 CFM (3.48m³/min) | 1.004 in H2O (250.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.5dB(A) | 15.6 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
PFR0848XHE-DV82FAN AXIAL 80X38MM 48VDC WIRE Delta Electronics |
3,084 |
|
数据手册 |
PFR | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 144.2 CFM (4.04m³/min) | 3.457 in H2O (861.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 48 W | 13800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | 0.529 lb (240.00 g) |
|
|
PFB1224LE-00P0AXIAL 120X38 24VDC PWM Delta Electronics |
1,604 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 140.9 CFM (3.99m³/min) | 0.766 in H2O (190.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 57.0dB(A) | 10.8 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
PFB0912EHE-T500FAN AXIAL 92X38MM 12VDC WIRE Delta Electronics |
4,717 |
|
数据手册 |
PFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 103.7 CFM (2.90m³/min) | 0.691 in H2O (172.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 8.16 W | 4800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.553 lb (250.84 g) |
|
BFB1224GH-AF00FAN BLOWER 120X32MM 24VDC WIRE Delta Electronics |
2,129 |
|
数据手册 |
BFB | Bulk | Active | 24VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 4.094 in H2O (1019.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 65.0dB(A) | 38.4 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.661 lb (299.82 g) |
|
|
PFB1224UHEP0AXIAL 120X38 24V PWM Delta Electronics |
2,356 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.5dB(A) | 48 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
|
PFB0924DHEP6AXIAL 92X38 24V PWM IP68 Delta Electronics |
3,646 |
|
数据手册 |
PFB | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 151.5 CFM (4.24m³/min) | 1.395 in H2O (347.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.7dB(A) | 26.4 W | 7200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, VDE | - |
|
AFB04512LAFAN AXIAL 45X10MM 12VDC WIRE Delta Electronics |
3,127 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 45mm L x 45mm H | 10.00mm | 7.7 CFM (0.216m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 960 mW | 4000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.035 lb (15.88 g) |
|

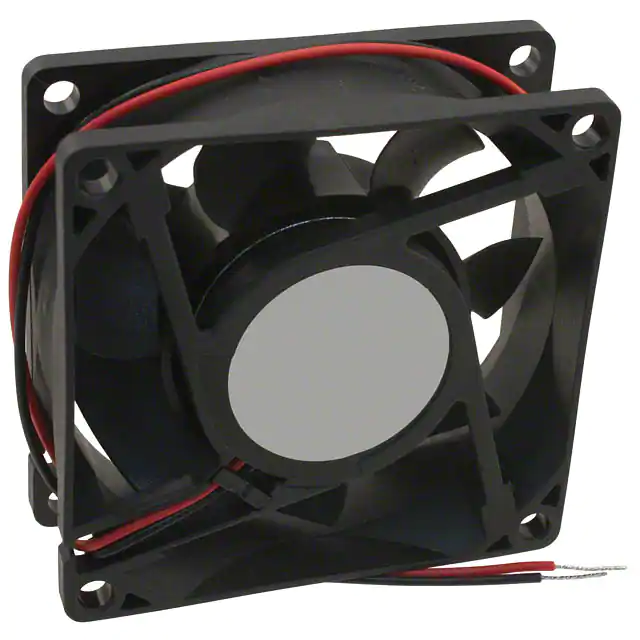

AFB0724MFAN AXIAL 70X25.4MM 24VDC WIRE Delta Electronics |
1,468 |
|
数据手册 |
AFB | Bulk | Obsolete | 24VDC | Square - 70mm L x 70mm H | 25.40mm | - | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.2 W | - | 2 Wire Leads | - | - | - | - |
|
AFB0912VHD-F00FAN AXIAL 92X20MM 12VDC WIRE Delta Electronics |
100 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 66.1 CFM (1.85m³/min) | 0.198 in H2O (49.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.5dB(A) | 3.36 W | 3300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
