直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0912H-R00FAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
4,388 |
|
数据手册 |
AFB | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 51.2 CFM (1.43m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 1.92 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
AUB1212H-CK15FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
3,672 |
|
数据手册 |
AUB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 88.6 CFM (2.48m³/min) | 0.161 in H2O (40.2 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.0dB(A) | 3.24 W | 2200 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.485 lb (220.00 g) |
|
1-NPT/603-1078FAN AXL 120X38MM 12VDC RECT CONN Delta Electronics |
1,229 |
|
数据手册 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 7.2 W | 3200 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
BFB1212VHFAN BLOWER 120X32MM 12VDC WIRE Delta Electronics |
1,286 |
|
数据手册 |
BFB | Bulk | Not For New Designs | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 39.6 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Protection | 56.5dB(A) | 15 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|

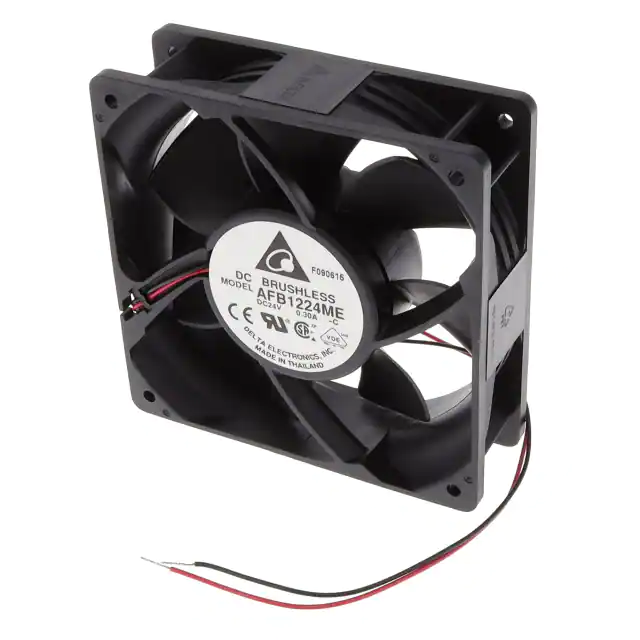

AFB1224ME-CFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,124 |
|
数据手册 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 92.0 CFM (2.58m³/min) | 0.254 in H2O (63.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 3.36 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
AFB1224GHE-CFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
3,290 |
|
数据手册 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 27.6 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
AFB1212LE-CFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
1,053 |
|
数据手册 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 71.3 CFM (2.00m³/min) | 0.166 in H2O (41.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.68 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
|
AFB1224VHE-CFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
1,131 |
|
数据手册 |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 8.64 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
AFB1212VHE-CF00FAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
2,251 |
|
数据手册 |
AFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 8.16 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|

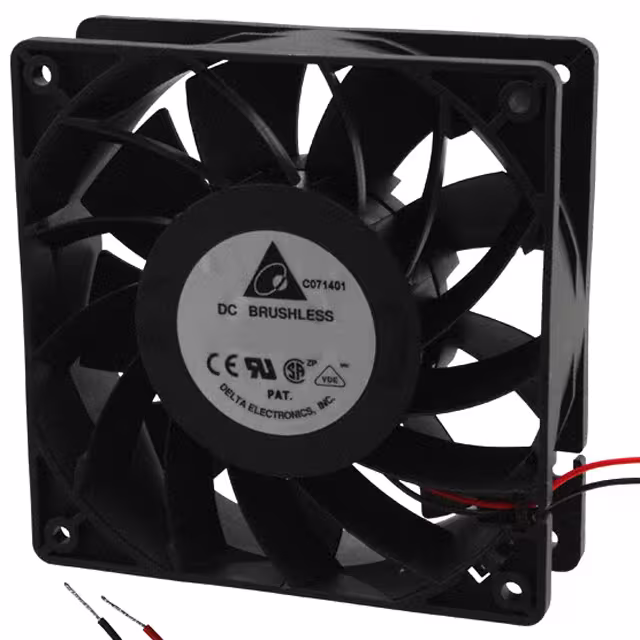

FFB1248SHEFAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
1,991 |
|
数据手册 |
FFB | Bulk | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 18.24 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
