直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0603812M2B-2T0FAN AXIAL 60X38MM 12VDC WIRE Wakefield-Vette |
195 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 67.1 CFM (1.88m³/min) | 2.070 in H2O (515.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 16.56 W | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

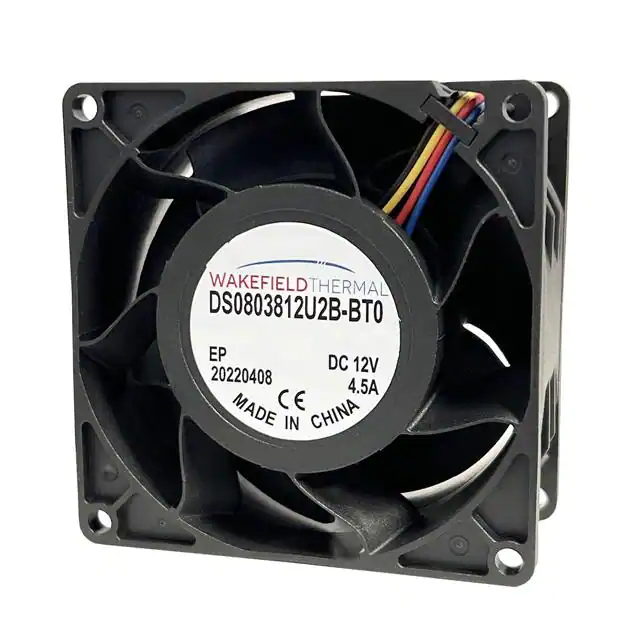

DS0803812U2B-BT0FAN AXIAL 80X38MM 12VDC WIRE Wakefield-Vette |
355 |
|
数据手册 |
DS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 123.6 CFM (3.46m³/min) | 4.383 in H2O (1091.8 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 72.5dB(A) | 50.4 W | 15000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
DC0405612U2B-2T0FAN AXIAL 40X56MM 12VDC WIRE Wakefield-Vette |
111 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 20.64 W | 21000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

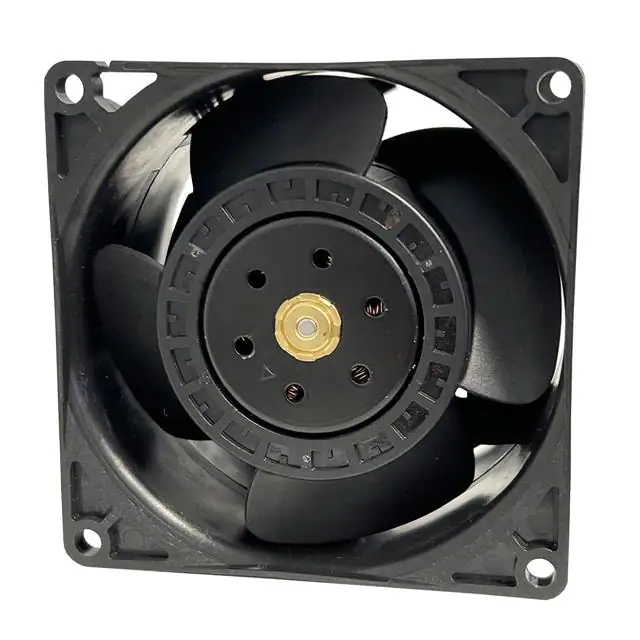

DS0805612V2B-BT0FAN AXIAL DUAL 80X56MM 12VDC Wakefield-Vette |
152 |
|
数据手册 |
DS | Box | Active | 12VDC | Square - 80mm L x 80mm H | 56.00mm | 138.0 CFM (3.86m³/min) | 8.811 in H2O (2194.7 Pa) | Ball | Tubeaxial (Dual) | PWM Control, Speed Sensor (Tach) | 79.0dB(A) | 83.52 W | 17300 Front, 15000 Rear | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
DC0602512J2B-2T0FAN AXIAL 60X25MM 12VDC WIRE Wakefield-Vette |
148 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 960 mW | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0401512H2B-2T0FAN AXIAL 40X15MM 12VDC WIRE Wakefield-Vette |
109 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 10.5 CFM (0.294m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 1.92 W | 8600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DB0601512L2B-2T0FAN BLOWER 60X15.5MM 12VDC WIRE Wakefield-Vette |
594 |
|
数据手册 |
DB | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.50mm | 2.4 CFM (0.067m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Blower | Locked Rotor Protection | 27.0dB(A) | 840 mW | 3500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
DC1202512J2B-2T0FAN AXIAL 120X25MM 12VDC WIRE Wakefield-Vette |
191 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 67.8 CFM (1.90m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0923812M2B-2T0FAN AXIAL 92X38MM 12VDC WIRE Wakefield-Vette |
170 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 10.8 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0401012U2B-2T0FAN AXIAL 40X10MM 12VDC WIRE Wakefield-Vette |
571 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.08 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
